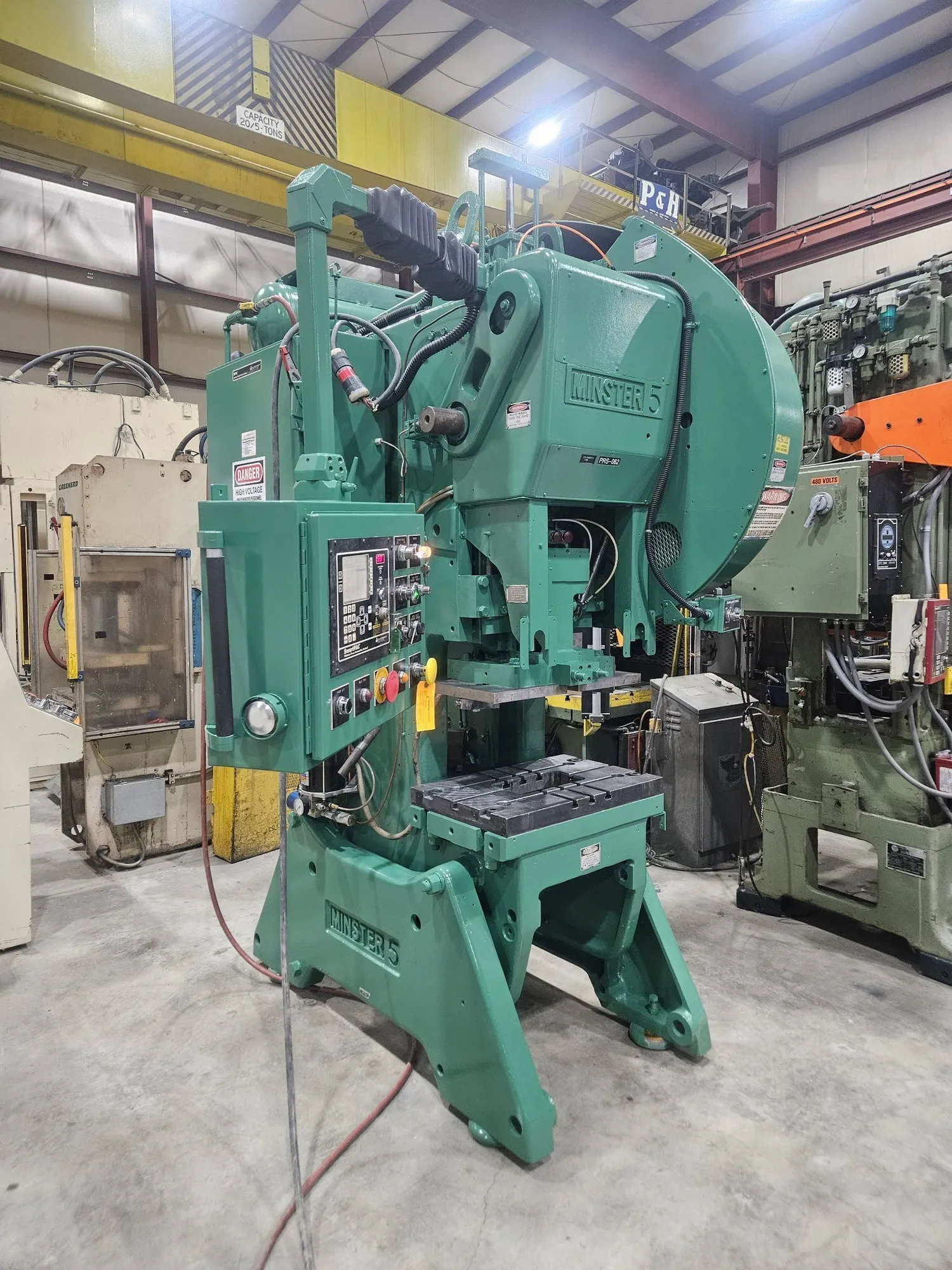

Minster #5 OBI Flywheel Press from 1969, offering 45-ton capacity, 5" stroke, and 11.25" shut height. Features a single crank, 90 SPM, air clutch, Wintress controls, and palm buttons. Bed size: 28"x18".
| Tonnage | 45 T | 40.823 t |
| Stroke | 5" | 127 mm |
| Shut Height | 11.25" | 285.75 mm |
| Bed W | 28" | 711.2 mm |
| Bed L | 18" | 457.2 mm |
| SPM | 90 strokes/min. | 90 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Type (BG, Double Action, FW) | Flywheel | Flywheel |
| Crank (Single/Double) | Single | Single |
| Weight | 8500 Lbs | 8500 Lbs |
Tonnage: 45
Stroke: 5"
Stroke Per Min: 90
Slide Adjustment: 2"
Shut Height on Bed: 11.25"
Bed Area: 28" x 18"
Wintress Controls
Palm Buttons
Air Clutch & Brake
