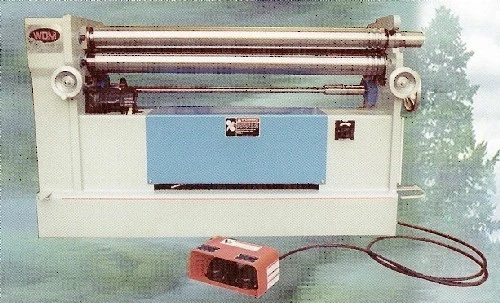

NEW WDM B-5-48

WDM  INITIAL PINCH BENDING ROLL

MODEL: B-5-48

GENERAL SPECIFICATIONS

Capacity: 4' x 8 Ga.
Diameter Of Rolls: 5"
Rolling Speed: 14 FPM

STANDARD EQUIPMENT

3 HP Drive Motor
Two Roll Hydraulic Drive
Swing-Out Top Roll For Removal Of Work Piece
Forward/Reverse Dual Guarded Foot Switch
Sealed Anti-Friction Bearings On All Main Points
Starting Groove In Pinch Roll
Large Aluminum Hand Wheels For Roll Adjustment
Emergency Stop Cable On Three Sides Of Machine

OPTIONS:

Variable Speed                      $700.00
Cone Attachment                  $900.00
H & P Rolls  55-60               $1550.00
Squaring Groove                   $150.00
Circular Groove                    $650.00
Electric DRO                        $2300.00
Mechanical DRO                  $1200.00
Power Bending Adj.             $2550.00

F.O.B. Spencer, Tennessee

Approximate Weight: 2750 Lbs.

Base Price of Machine.........$14200.00        Current Delivery 12 to 14 Weeks from date of written Purchase Order.

FACTORY SPECIFICATION SUBJECT TO CHANGE AND/OR MODIFICATION
