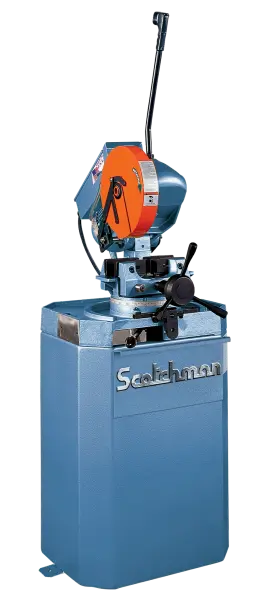

NEW SCOTCHMAN CPO 275 SS

(NEW) SCOTCHMAN COLD SAW

MODEL: CPO 275 SS

GENERAL SPECIFICATIONS

Maximum Blade Diameter: 10-3/4"
Arbor Bore: 1-1/4
Cutting Speed: 60 RPM
Miter Capabilities: 45 Degrees Left To 45 Degrees Right
Miter Locking Device Stops At: 45 Degrees Left, 90 Degrees, 45 Degrees Right
Capable Of Slotting

Maximum Capacities
Round Tubing, 90 Degrees: 3-3/8"
Round Tubing, 45 Degrees: 2"
Square Tubing, 90 Degrees: 3" x 3"
Square Tubing, 45 Degrees: 2" x 2"
Rectangle Tubing, 90 Degrees: 3" x 2-3/8"
Rectangle Tubing, 45 Degrees: 3" x 2"
Round Solids, 90 Degrees: 1-1/2"
Round Solids, 45 Degrees: 1"
Square Solids, 90 Degrees: 1-1/2" x 1-1/2"
Square Solids, 45 Degrees: 1" x 1"

EQUIPPED WITH

2 HP Motor, 220/60/1
Double Self-Centering Vise
Hardened and Ground Worm Wheel and Wheel Gear Box
Worm Wheel Of Top Quality Brass
Coolant System
30" Material Length Stop
Emergency Stop Button

Three Year Warranty
Made In USA

Approximate Weight: 600 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
