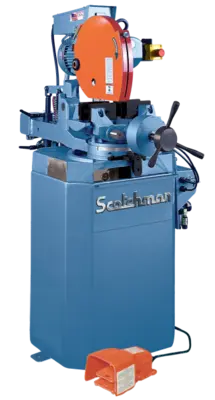

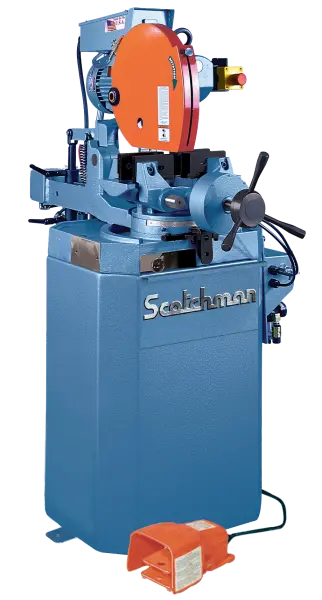

NEW SCOTCHMAN CPO 350 PK/PD/VS

(NEW) SCOTCHMAN COLD SAW

MODEL: CPO 350 PK/PD/VS

GENERAL SPECIFICATIONS

Maximum Blade Diameter: 14"
Arbor Bore: 1-9/16"
Cutting Speeds, Variable: 11 to 177 RPM
Miter Capabilities: 135 Degrees, 90 Degrees Left, 45 Degrees Right
Miter Locking Device Stops At: 45 Degrees Left, 90 Degrees, 45 Degrees Right
Capable Of Slotting
Maximum Capacities
Round Tubing, 90 Degrees: 4-1/2"
Round Tubing, 45 Degrees: 4"
Square Tubing, 90 Degrees: 4-1/4" x 4-1/4"
Square Tubing, 45 Degrees: 4" x 4"
Rectangle Tubing, 90 Degrees: 5-1/2" x 4"
Rectangle Tubing, 45 Degrees: 4" x 4"
Round Solids, 90 Degrees: 2"
Round Solids, 45 Degrees: 1-3/4"
Square Solids, 90 Degrees: 2" x 2"
Square Solids, 45 Degrees: 1-3/4" x 1-3/4"

EQUIPPED WITH

5 HP Motor
Pneumatic Power Down Feed With Electric Controls
Air Operated Double Self-Centering Vise
Double Reduction, Hardened and Ground Worm Wheel and Wheel Gear Box
Worm Wheel Of Top Quality Brass
Coolant System
Emergency Stop Button
Chip Drawer
Three Year Warranty On Parts
Made In USA

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
