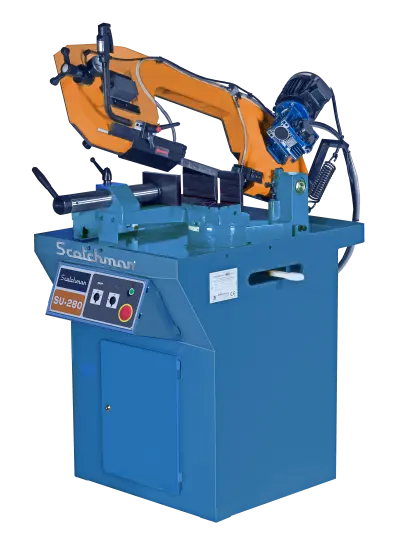

NEW SCOTCHMAN SU-280G

(NEW) SCOTCHMAN HORIZONTAL BAND SAW

MODEL: SU-280

FACTORY SPECIFICATIONS

Tubing, Round: 8" 90 Degree, 7" 45 Degree, 4-1/4" 30 Degree
Tubing, Square: 8" 90 Degree, 6-1/4" 45 Degree, 4" 30 Degree
Tubing, Rectangle: 11" x 7-3/4" 90 Degree, 7" x 6-1/4" 45 Degree, 30 Degree 4-1/4" x 4"
Solid, Round: 8"

STANDARD EQUIPMENT & FEATURES

Quick Action Locking Vise
Miter Capability 30 Degree Right
Blade Trigger Switch
Blade Tension Gauge
Two Cutting Speeds (3-phase model)
One Cutting Speed (1-phase model)
Re-circulating Coolant System
Band Door Interlocks
One 1" (27mm) Saw Blade
One Gallon Concentrated Coolant
Three-Year Warranty on Parts
Made in Spain

SPECIFICATIONS

Blade Length: 1" x 96.5"
Two Cutting Speeds: 3 Phase Machines, 131/262 FPM
One Cutting Speed: 1 Phase Machines, 196 FPM
Motor Rate: 1-1/2 HP
Factory Wired: Specify, 230 Volt, 1 Phase, 230 Volt, 3 Phase, or 460 Volt, 3 Phase
Machine Dimensions: 33-1/2" x 55" x 69"H
Shipping Weight: 650 Lbs.

F.O.B. Philip. South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
