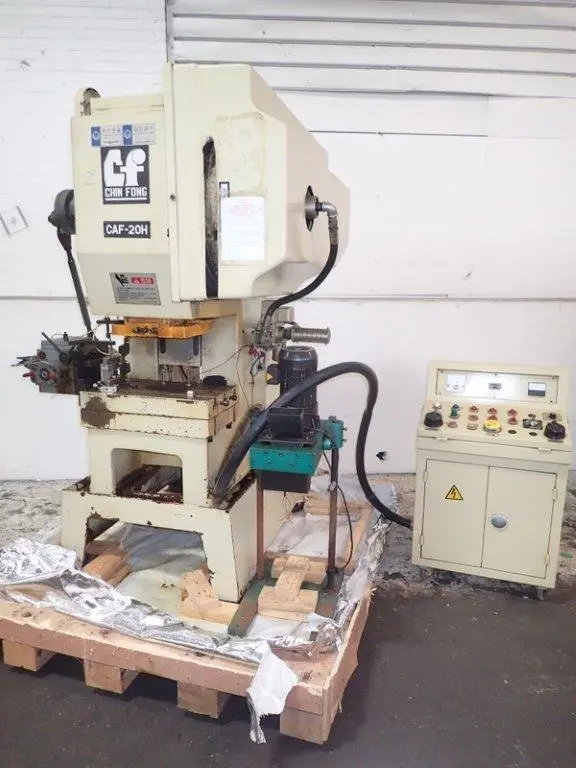

USED 2005 CHIN FONG CAF-20H

CHIN FONG GAP FRAME PRESS

MODEL: CAF-20H

SERIAL NUMBER: A55160    Year: 2005

GENERAL SPECIFICATIONS

Capacity: 20 Tons

Stroke: 30 mm

Die Height: 195 mm

Slide Adjustment: 50 mm

Slide Area: 300 mm L-R x 240 mm F-B

Bolster Area: 530 mm L-R x 310 mm F-B

Strokes Per Minute: 200 - 400

EQUIPPED WITH

2.2 KW Variable Speed Motor

Rack and Pinion Feeder

Scrap Chopper

Console Control w/Palm Buttons

Approximate Dimensions: 57" L-R x 52" F-B x 78"H

Approximate Weight: 4000 Lbs.

F.O.B. Monclova, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
