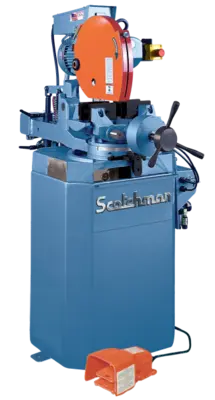

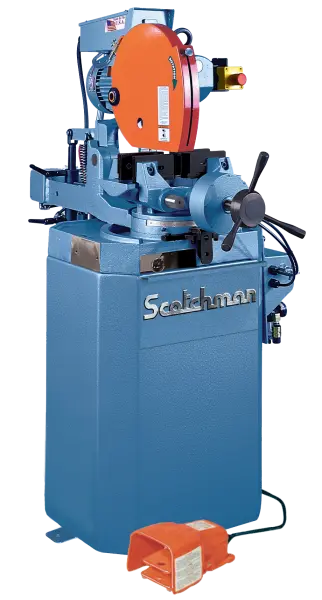

NEW SCOTCHMAN CP0 350 LT/PD

(NEW) SCOTCHMAN SEMI-AUTOMATIC COLD SAW

MODEL: CPO 350 LT/PD

GENERAL SPECIFICATIONS

Semi-Automatic Saw

*Pneumatic Power Down Feed With Electric Controls

*Separate Feed Controls For Rate and Pressure

*Capable Of Slotting

Maximum Blade Diameter: 14"

Arbor Bore: 1-9/16"

Cutting Speeds: 22 & 44 RPM

Miter Capabilities: 45 Degrees Left To 45 Degrees Right

Miter Locking Device: Quick Accurate Setting-Stops At 45 Degrees Left, 90

Degrees, and 45 Degrees Right

Maximum Capacities

Round Tubing, 90 Degrees: 4-1/2"

Round Tubing, 45 Degrees: 4"

Square Tubing, 90 Degrees: 4-1/4" x 4-1/4"

Square Tubing, 45 Degrees: 4" x 4"

Rectangle Tubing, 90 Degrees: 5-1/2" x 4"

Rectangle Tubing, 45 Degrees: 4" x 4"

Round Solids, 90 Degrees: 2"

Round Solids, 45 Degrees: 1-3/4"

Square Solids, 90 Degrees: 2" x 2"

Square Solids, 45 Degrees: 1-3/4" x 1-3/4"

EQUIPPED WITH

3 HP Motor

Double Self-Centering Vise

Hardened and Ground Worm and Wheel Gear Box

Coolant System

30" Material Length Stop

Emergency Stop Button

Three Year Warranty

Made In USA

F.O.B. Philip, South Dakota

SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
