USED US INDUSTRIAL JIMK530X2500

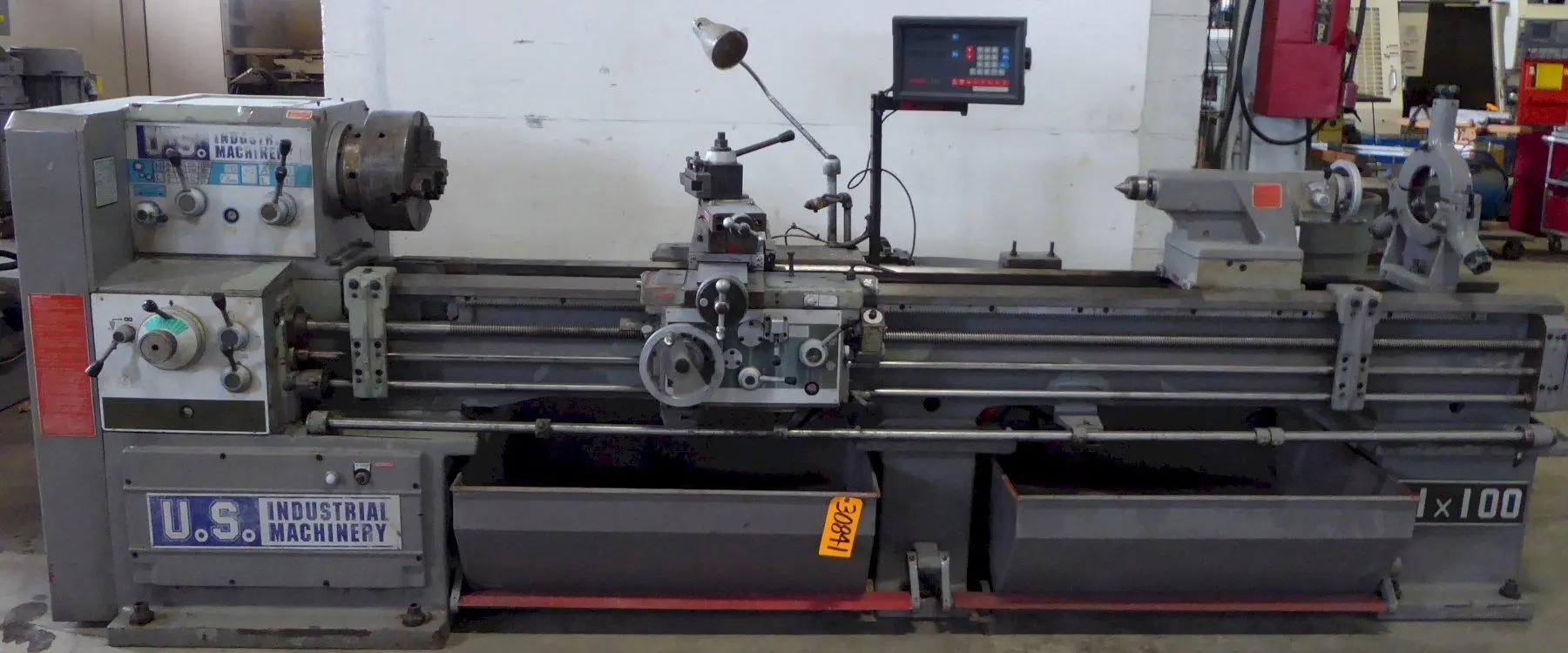

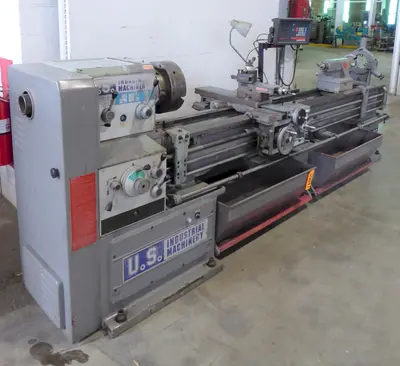

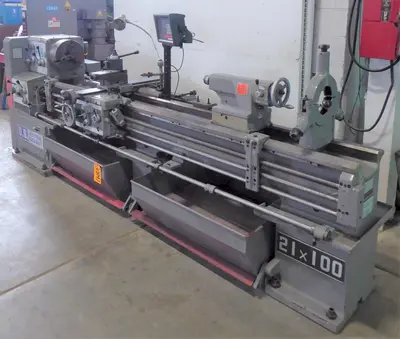

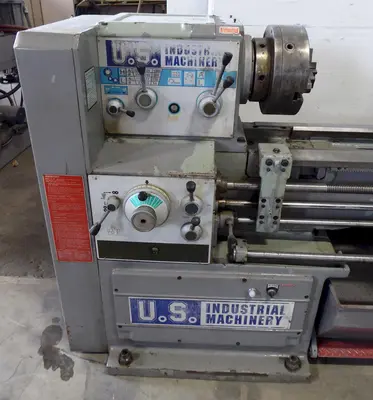

US INDUSTRIAL GAP BED ENGINE LATHE

MODEL: JIMK530X2500
SERIAL NUMBER: K6129426

GENERAL SPECIFICATIONS

Swing Over Bed: 21"
Swing In Gap: 28"
Length Of Gap: 11.4"
Swing Over Cross Slide: 13"
Distance Between Centers: 100"
Spindle Speeds: (12) 25 - 1500 RPM
Spindle Nose: D1-8
Spindle Hole: 3.14"

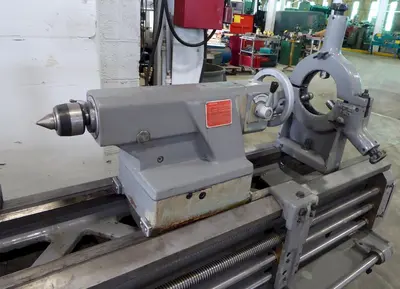

Tailstock Quill Travel: 6.3"
Tailstock Quill Diameter: 2.5"
Tailstock Taper: No. 4 M.T.

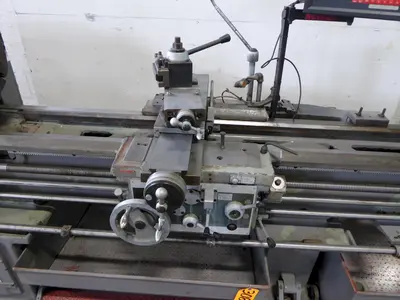

Cross Slide Travel: 10.6"
Compound Travel: 4.3"

EQUIPPED WITH

10 HP Motor

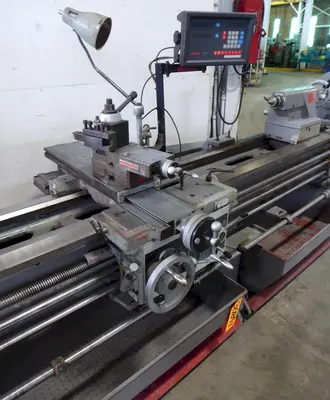

Newall DP7 Two Axis Digital Readout
Inch/Metric Threading

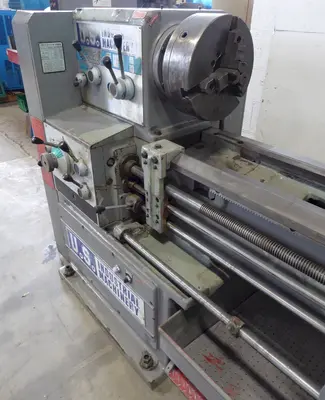

3-Jaw Chuck
Steady Rest
Taper Attachment
Chip Pans

Approximate Weight: 6750 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
