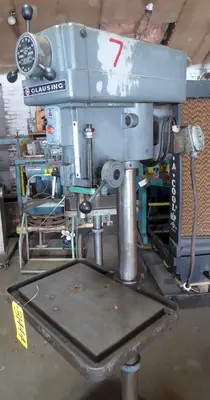

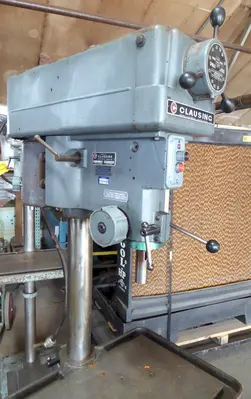

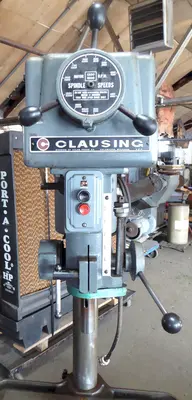

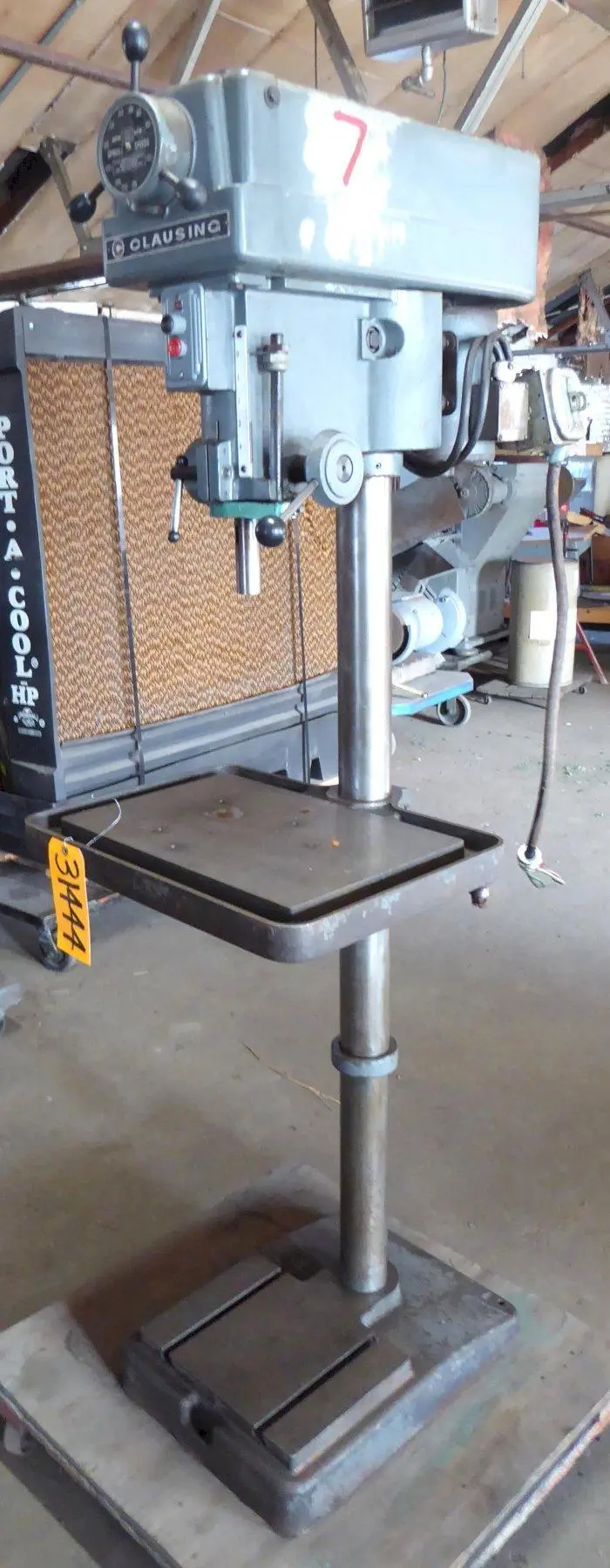

USED CLAUSING 16VT-1

CLAUSING SINGLE SPINDLE DRILL

MODEL: 16VT-1
SERIAL NUMBER: 510913

GENERAL SPECIFICATIONS

Hand Feed
Drill to Center of Circle: 15"
Capacity, Hand Feed: 5/8"
Spindle Speeds, Variable: 500 - 4000 RPM
Spindle Travel: 4-3/4"
Spindle Taper: No. 2 M.T.
Column Diameter: 3"
Quill Diameter: 2"

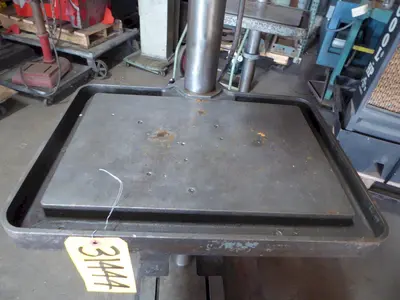

Table Working Surface: 14" x 10"
Base Working Surface: 13" x 10"

EQUIPPED WITH

3/4 HP Motor 230/460/60

Approximate Weight: 300 Lbs.

F.O.B. Cincinnati, Ohio 45223

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
