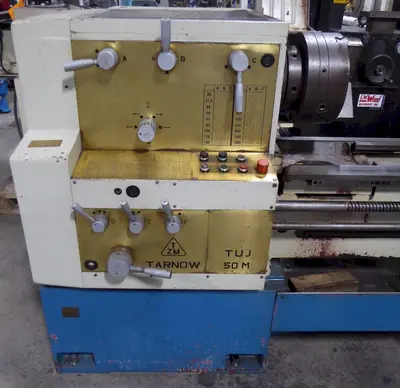

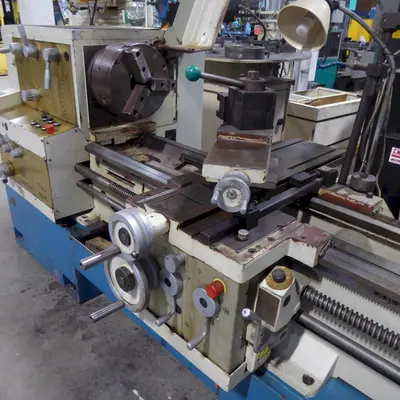

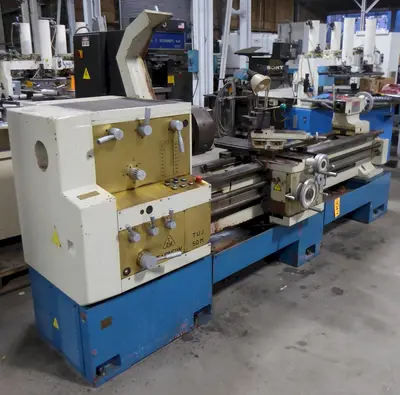

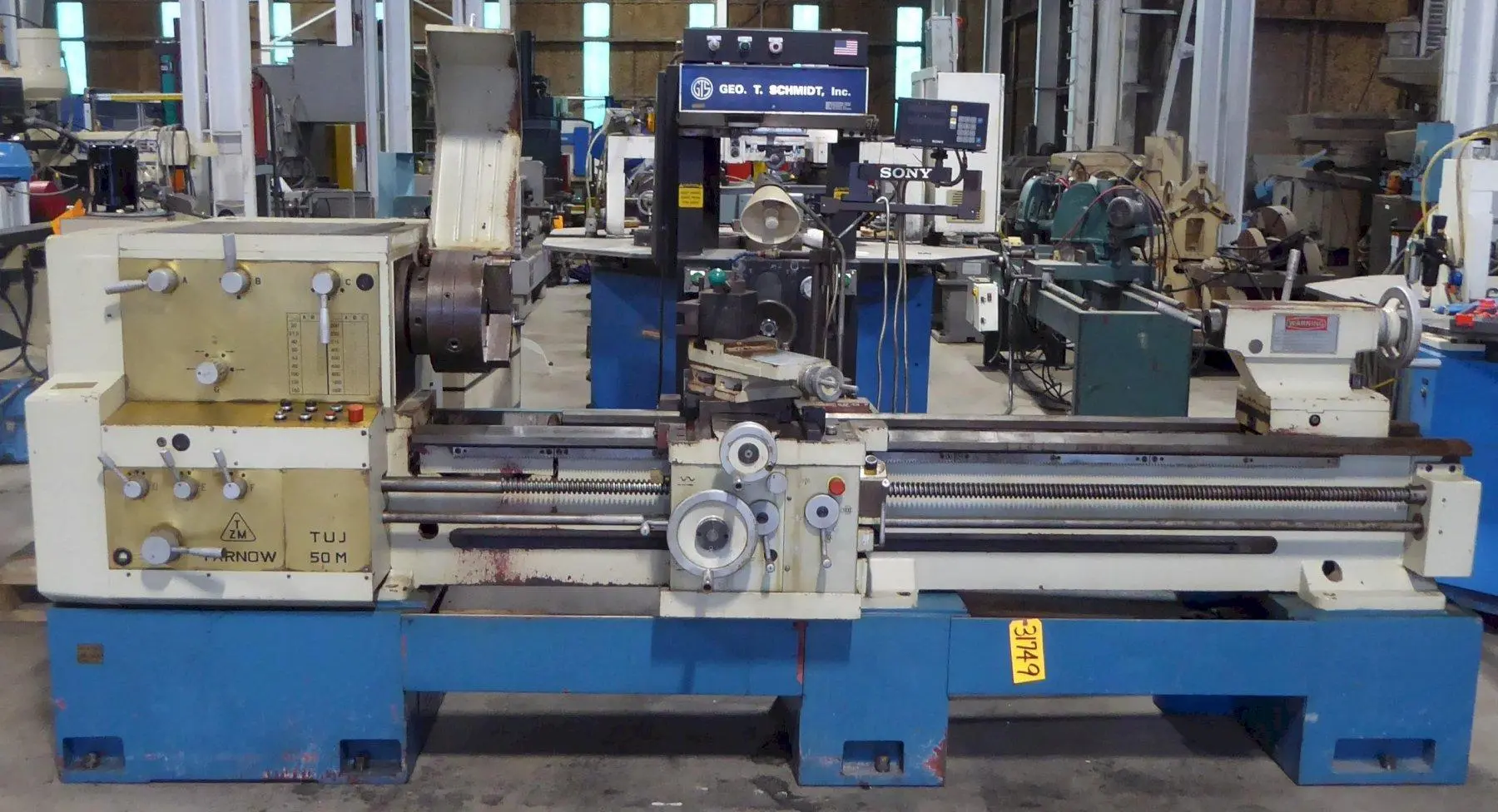

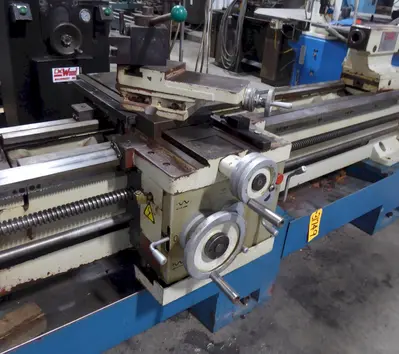

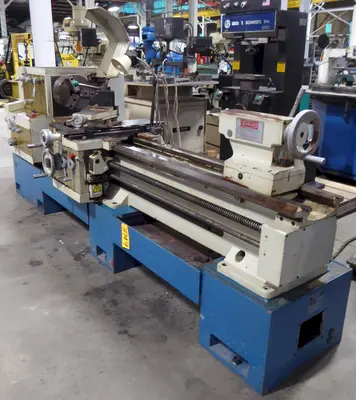

TARNOW GAP BED ENGINE LATHE
MODEL: TUJ 50M/80
SERIAL NUMBER: 3898
GENERAL SPECIFICATION
Swing Over Bed Ways: 22"
Swing In Gap: 31-1/2"
Swing Over Cross-Slide: 14-1/2"
Distance Between Centers: 80"
Spindle Speeds: (18) 20 to 1600 RPM
Spindle Bore: 3-1/2"
Longitudinal Feeds: (42) .0007 to .72" IPR
Cross Feeds: (42) 1/2 of Longitudinal Feeds
Inch Threads: (70), 1/4" to 56 TPI
Metric Threads: (60), .5 to 112 MM

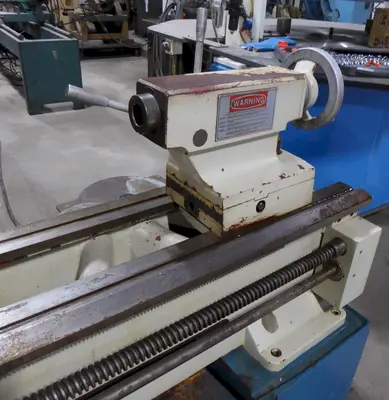

Tailstock Quill Taper: No. 5 M.T.
EQUIPPED WITH
15 HP Motor
Sony Two-Axis Digital Readout
15" 3-Jaw Chuck
Hardened and Ground Bed Ways
Quick Change Tool Post
Full Length Splash Guard
Approximate Weight: 6000 Lbs.
F.O.B. Cincinnati, Ohio 45223
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
