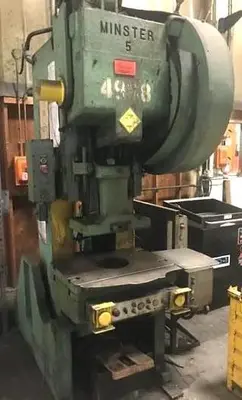

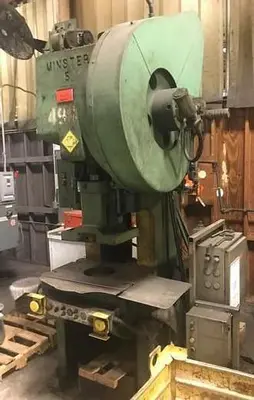

MINSTER O.B.I. PRESS
MODEL: 5F

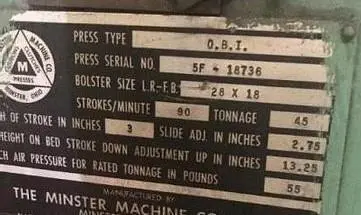

SERIAL NUMBER: 5F-18736
GENERAL SPECIFICATIONS
Flywheel Type
Capacity: 45 Tons
Stroke: 3"
Shut Height (SDAU): 13-1/4"
Ram Adjustment: 2-3/4"
Slide Area: 18" x 12"
Bed Area: 28" x 18"
Bed Opening: 16" x 16"
Width Of Opening In Back: 13-1/2"
Throat Depth: 9-1/2"
Strokes Per Minute: 90
EQUIPPED WITH
Air Clutch and Brake
Dual Palm Button Operation
Screw Type Inclining Mechanism
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
