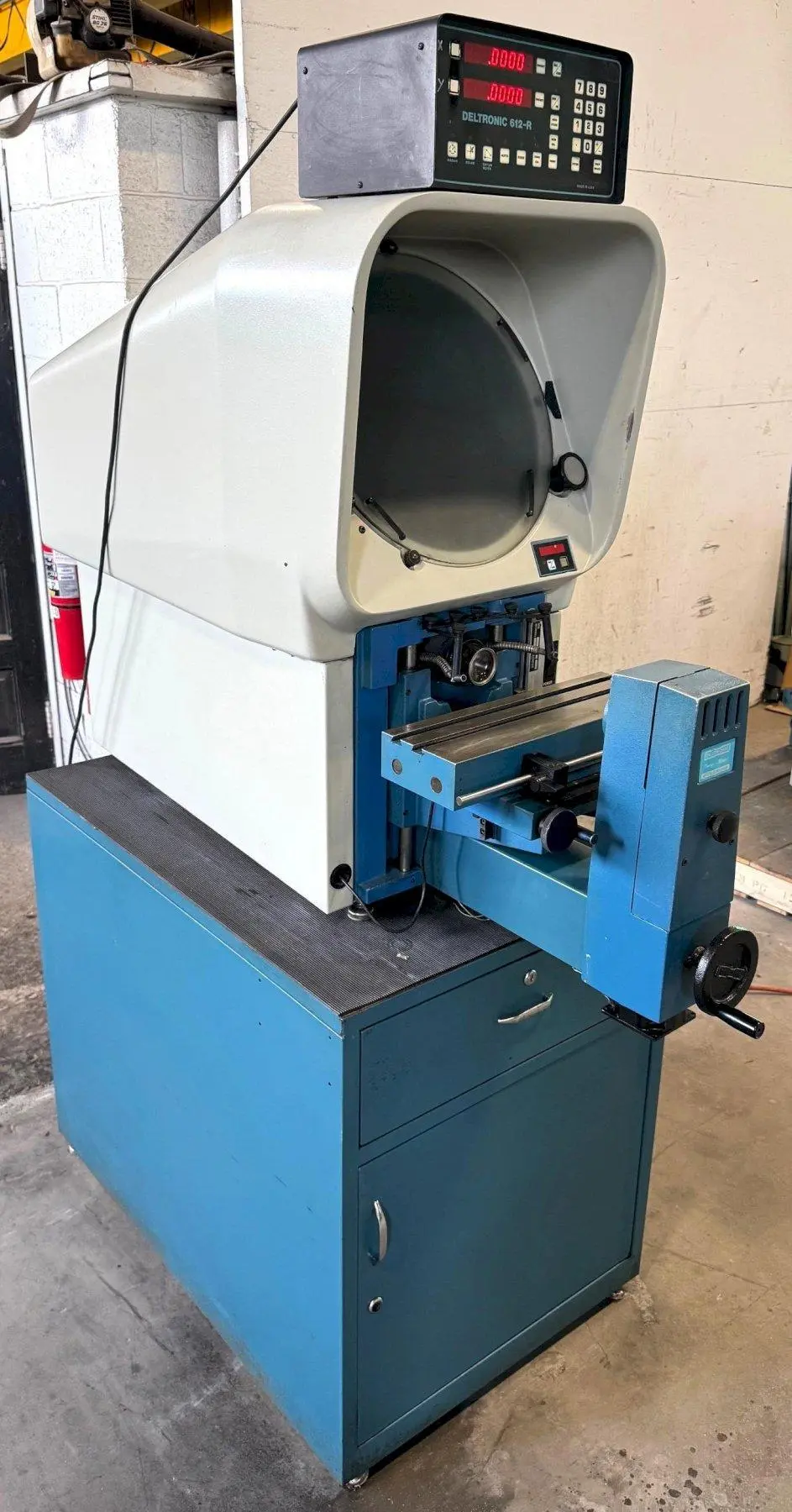

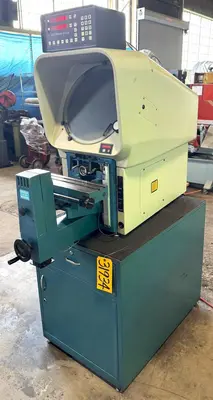

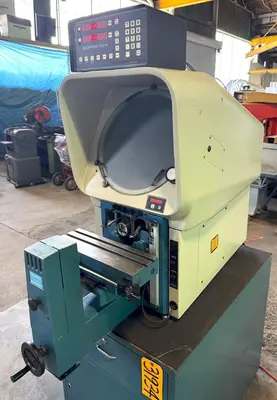

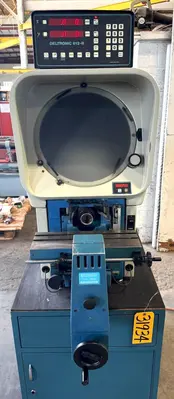

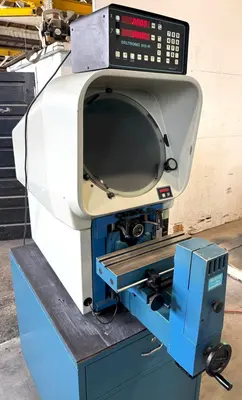

DELTRONIC OPTICAL COMPARATOR & MEASURING MACHINE

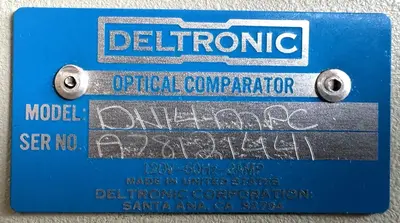

MODEL: DH14-MPC
SERIAL NUMBER: A78121441
GENERAL SPECIFICATIONS

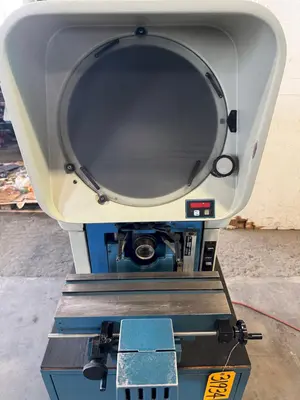

Screen Diameter: 15.5"
Size Of Work Table: 5" x 15"
Longitudinal Table Travel (X-Axis) : 6.5"
Vertical Table Travel Z-Axis): 4.1"
Cross Travel For Focusing: 3:
Electrical: 120/60/1
EQUIPPED WITH
Tungsten Halogen Projection
Fiber Optic Surface Illuminator
10X Lens, 20X Lens
Digital Angle Display-360 Degree Rotation
Deltronic 612-R Computational Two-Axis Digital Readout System w/Glass Scales
Cabinet Base
Floor Space: 30" L-R x 55" F-B x 66"H
Approximate Weight: 300 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
