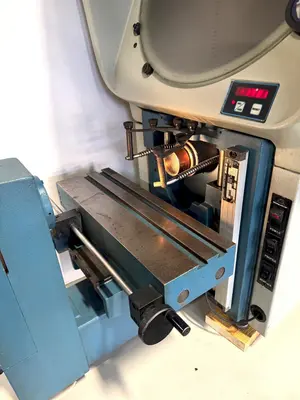

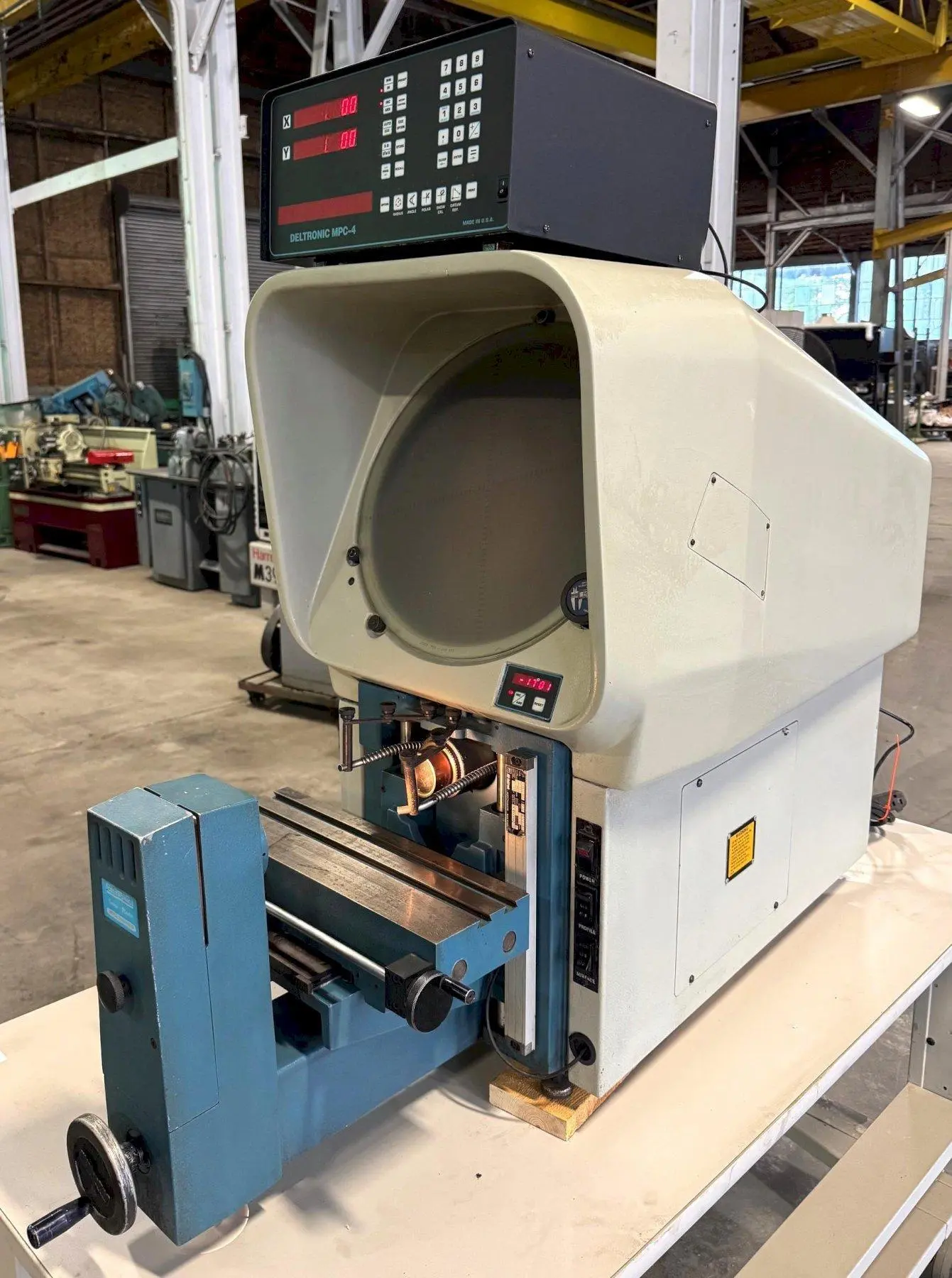

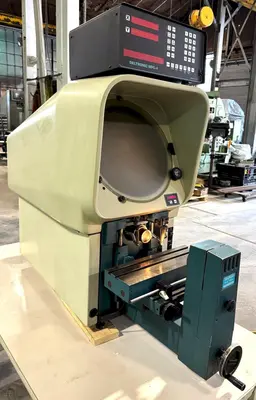

DELTRONIC OPTICAL COMPARATOR & MEASURING MACHINE
MODEL: DH14-MPC4

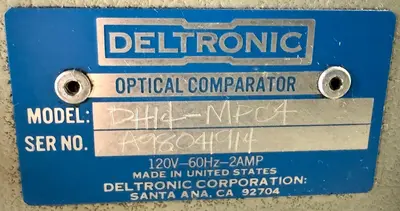

SERIAL NUMBER: A98041914
GENERAL SPECIFICATIONS
Screen Diameter: 15.5"
Size Of Work Table: 5" x 15"
Longitudinal Table Travel (X-Axis): 6.5"
Vertical Table Travel (Z-Axis) : 4.1"
Cross Travel For Focusing: 3:
Electrical: 120/60/1
EQUIPPED WITH
Tungsten Halogen Projection
Fiber Optic Surface Illuminator
10X Lens
Digital Angle Display

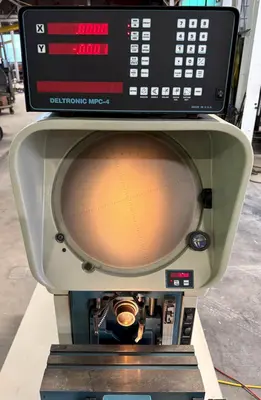

Deltronic MPC-4 Computational Two-Axis Digital Readout System w/Glass Scales and Edge Detection
Floor Space: 24" L-R x 52" F-B x 45"H
Approximate Weight: 220 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
