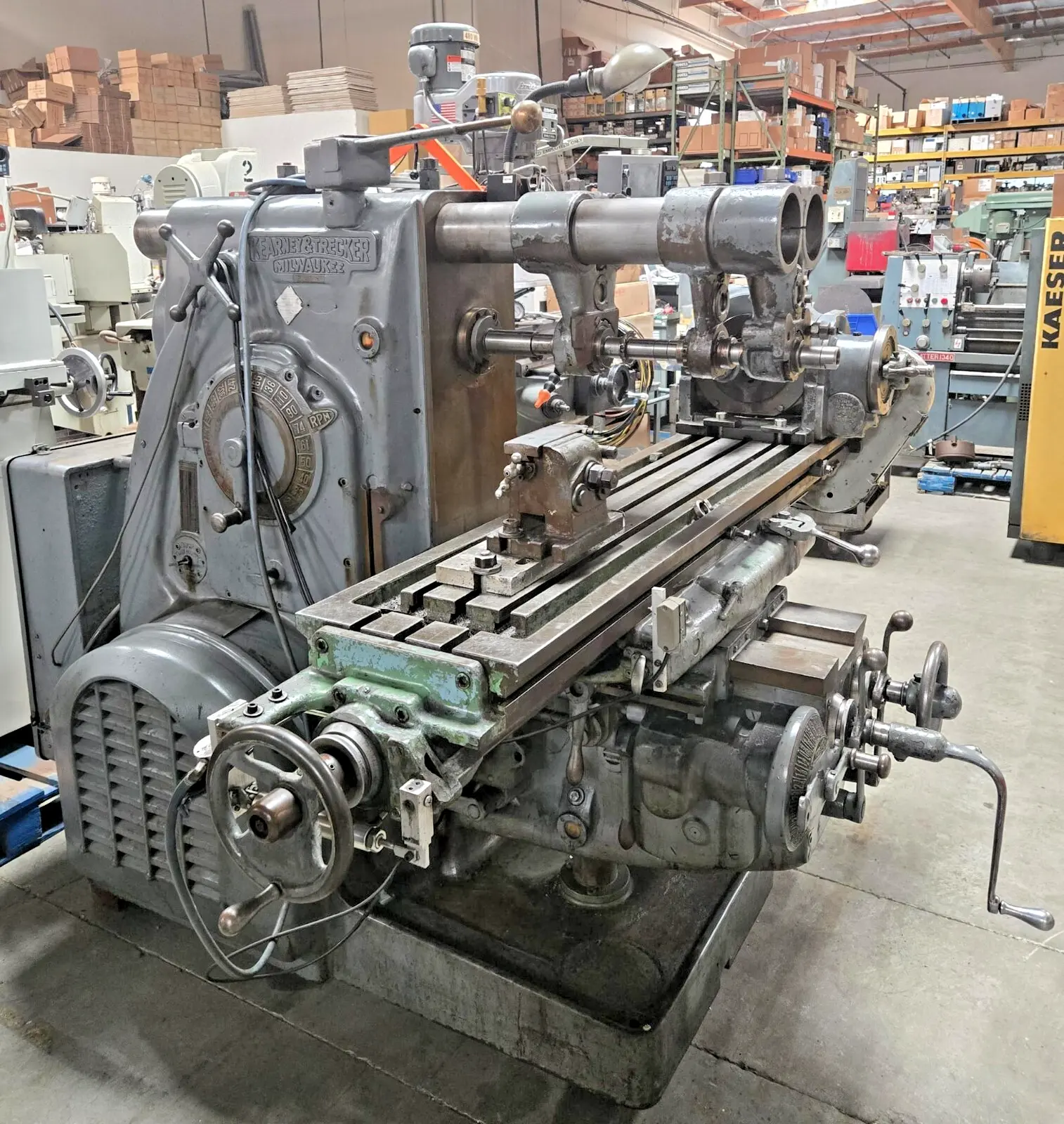

Kearney & Trecker 10HP-2CK Horizontal Mill Milling Machine from a USAF Facility
| Table Size-W | 12" | 304.8 mm |
| Table Size-L | 50" | 1,270 mm |
Brand: Kearney & Trecker
Model: 2CH
Type: Horizontal Mill
Serial #: 14-6554
Year: 1952
Typical Specifications:
Table Size: 64" x 13-1/2" Large Table
Longitudinal (X-axis) Travel: 28″
Cross (Y-axis) Travel: 12″
Vertical Knee (Z-axis) Travel: 15″
Sliding Head Travel: ~4″ (when equipped)
Spindle to Table Distance: ~4″–17″ (depending on setup)
Drive Motor: ~5 HP
Spindle & Speeds
Spindle Taper: #50 National Standard (NST)
Spindle Speeds: Typically 16 speeds from about 25 to 1500 RPM
Overall Dimensions: ~67″ L × 76″ W × 64″ H
Weight: ~4,200 lbs
TERMS:
Location Oxnard, CA - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment.Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
