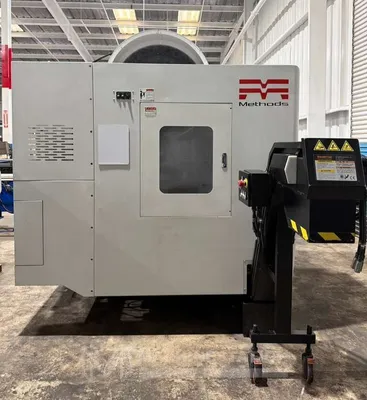

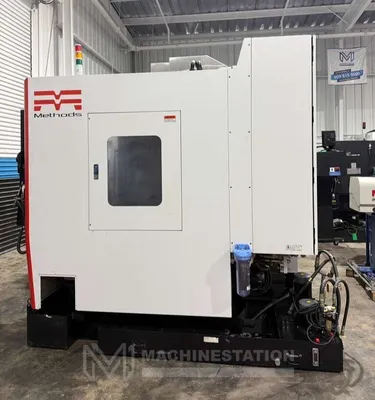

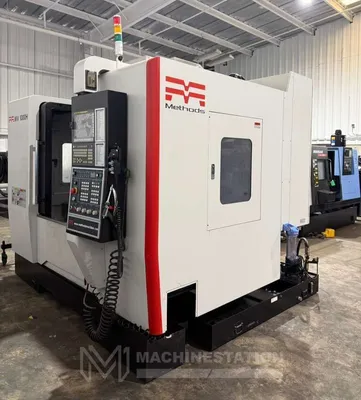

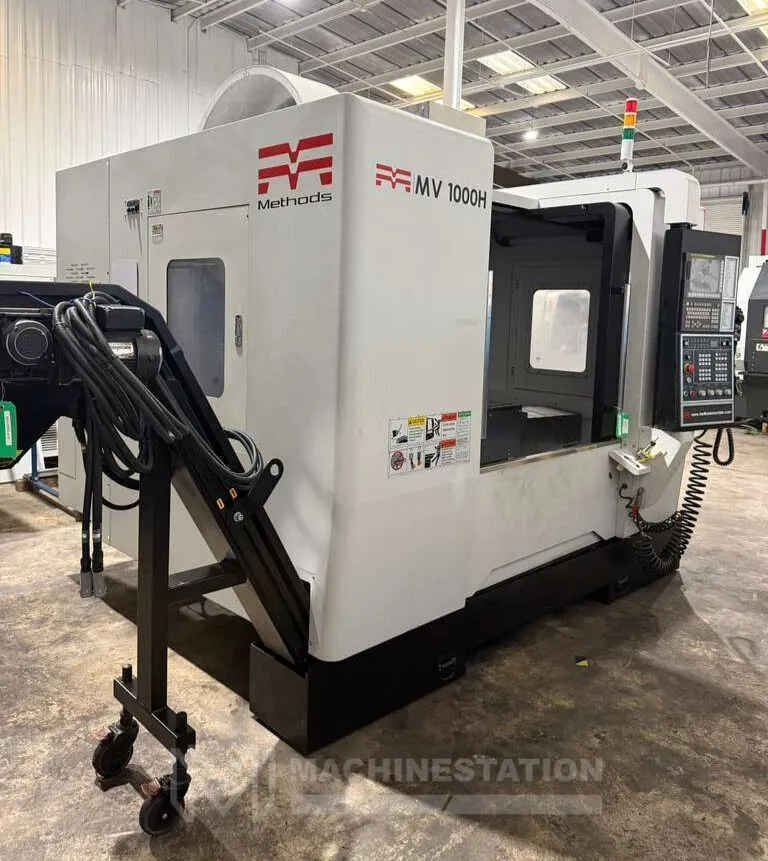

USED 2019 METHODS MV 1000H

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Replacement cost $110k with similar options.

Features:

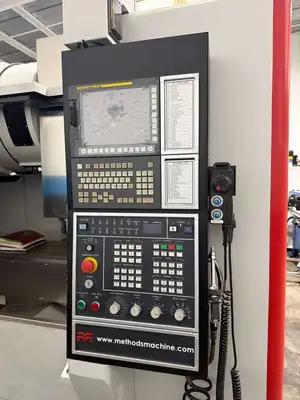

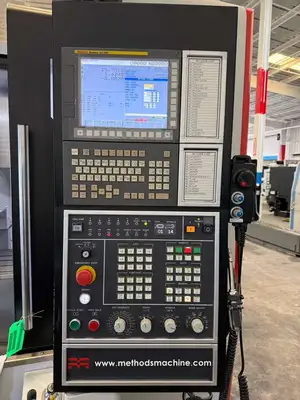

Fanuc Oi-MF Series CNC Control
3,511 Hours Cutting Time
X, Y Axis Roller Guidways Z Axis Box Way

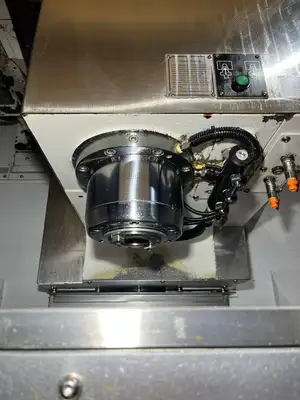

BT-40 Big Plus Taper Spindle
MPG Handwheel Control
USB, PCMCIA, RS232C
Rigid Tapping
Coolant System

Table:
Length: 42.2″
Width: 20.5″
Number of Std T-Slots: 5
T-Slot Width: 0.70″ X 3.93″
Max Weight on Table: 1102 lbs

Travels:
X-Axis: 39.40″
Y-Axis: 20.47″
Z-Axis: 20.70″
Rapid Traverse Rates X & Y Axis: 2362 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Cutting Feed Rates X & Y Axis: 1181 IPM
Cutting Feed Rates Z Axis: 787 IPM
Spindle Nose to Table (Min.- Max.): 3.94″ – 24.60″

Spindle:
Taper Size: BT-40 Big Plus
Speed Range: 15,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15.43 lbs
Max Tool Dia: 3.10″ – 5.90″
Max Tool Length: 11.81″
Tool Changing Time (Tool to Tool): 1.5 Seconds

General:
Air Required: 80 psi, 4 scfm

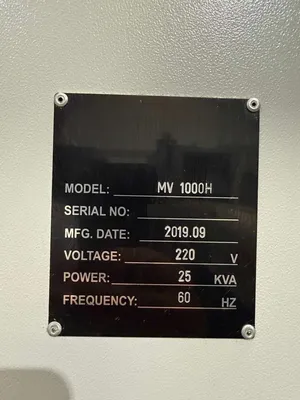

Power: 220v / 25 kva / 3-Phase
Overall Dimensions: 154.3″ x 96.3″ x 118″ High (With Chip Conveyor)
Weight: 15,760 lbs

15,000 RPM High Speed Spindle

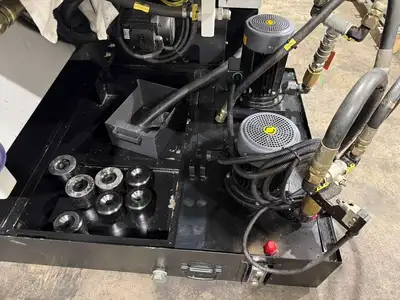

Through Spindle Coolant – 300 psi
30 Station Side Mounted Automatic Tool changer
Spindle Chiller Unit
Chip Conveyor
Levelling Pads

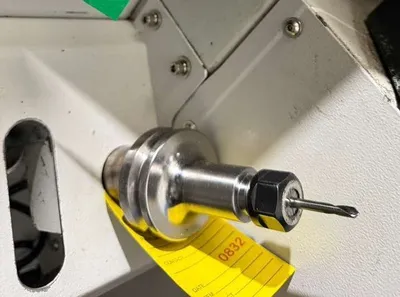

(5) Tool Holders are Included with the Machine
