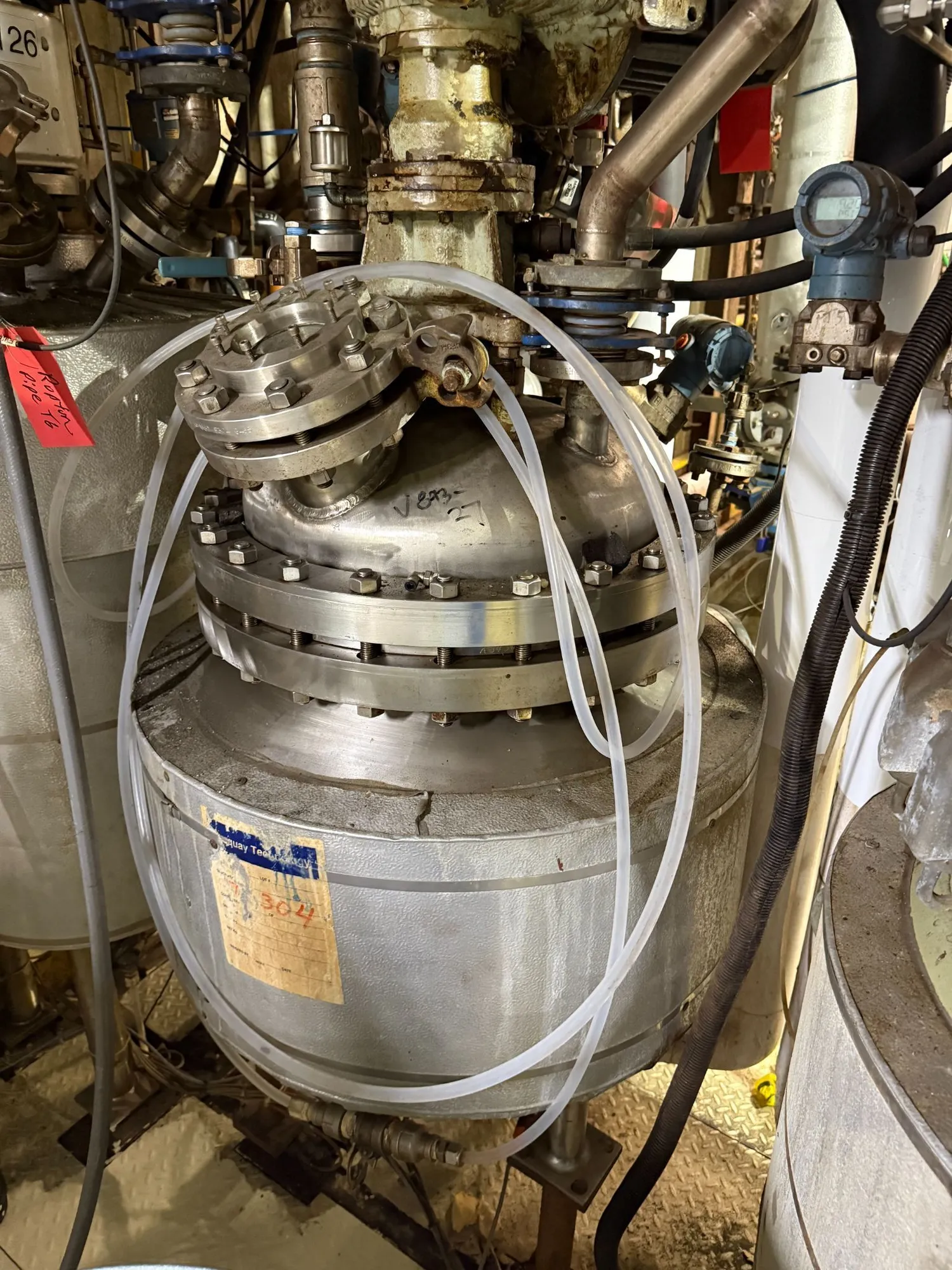

Used Approximately 30 Gallon Pfaudler Hastelloy C-276 Reactor
National Board: 46834
Internal pressure: 150/FV @ 350°F
Jacket pressure: 75/FV @ 350°F
Top, center-mounted agitator
Mounted on legs
* This equipment will be available for sale in early April 2026.
| Capacity | 30 gal | 113.6 L |
| National Board No. | 46834 | 46834 |
| Type of stainless | Hastelloy C-276 | Hastelloy C-276 |
| Internal Pressure | 150 PSI | 10.3 bar |
| Internal Temperature | 350°F | 176.7°C |
| Jacket Pressure | 75 PSI | 5.2 bar |
| Jacket Temperature | 350°F | 176.7°C |
| Diameter | 20" | 508 mm |
| Straight Side | 22" | 558.8 mm |
| Type Of Heads | Dished | Dished |
| Legs/Lugs | Legs | Legs |
