42" BLANCHARD "18K-42" EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER - Segmented Grinding Wheel - 21" Vertical Range - 50 HP Motor - Automatic Conveyor Base For Sludge Removal
| Chuck Size | 42" | 1,066.8 mm |
| Horz/Vert | 'Vert' | 'Vert' |
| Power | 50 hp | 37.3 kW |
| Swing | 48" | 1,219.2 mm |
| Under Wheel | 21" | 533.4 mm |
| Grinding Wheel Dia. | 18" | 457.2 mm |
| Dimensions | 9'9" x 5'5" | 9'9" x 5'5" |
| Weight | 13900 LBS | 13900 LBS |

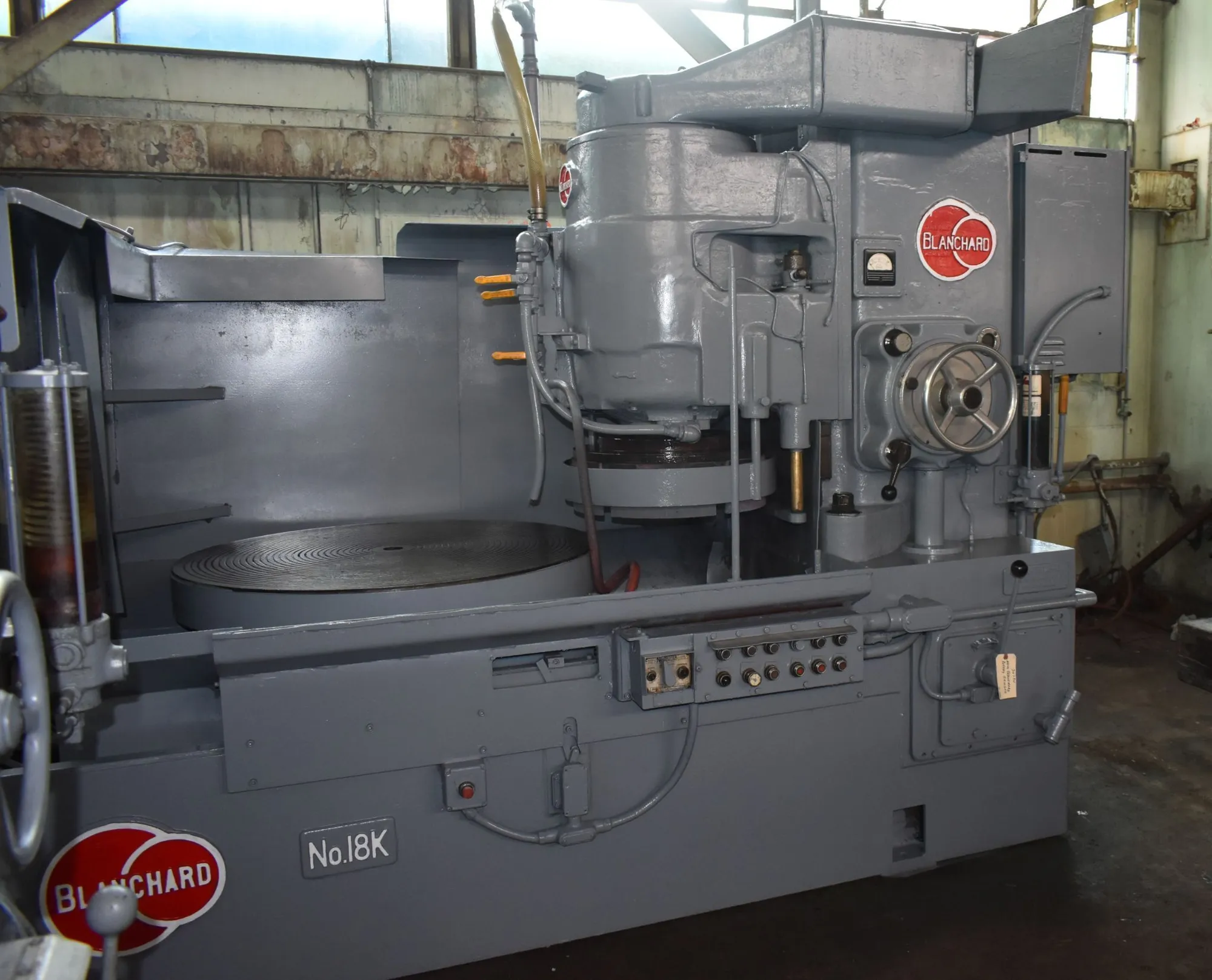

42" BLANCHARD EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 11523, Model 18K-42
EQUIPPED WITH:
Vertical Spindle Machine Design
42" Diameter Electro-Magnetic Chuck w/Neutrofier
21" Vertical Range
Segmented Grinding Wheel
Coolant System w/Automatic Conveyor Base For Sludge Removal
CATALOGUE SPECIFICATIONS:
Magnetic Chuck, Diameter 42"
Magnetic Chuck Face, Diameter 42"
Swing Between Coolant-Guards 48"
Magnetic Chuck Work Load Capacity 2000 LBS
Grinding Wheel Vertical Range, Maximum 21"
(6) Chuck Speeds, Range 6 to 33 RPM
(20) Power Down Feeds, Range .004 to .076 IPM
Spindle Motor, Horsepower 50 HP
Floor Space Required, W x D 9'9" x 5'5"
Overall Height 8'2"
Weight, Approximately 13900 LBS
F.O.B. OUR WAREHOUSE
