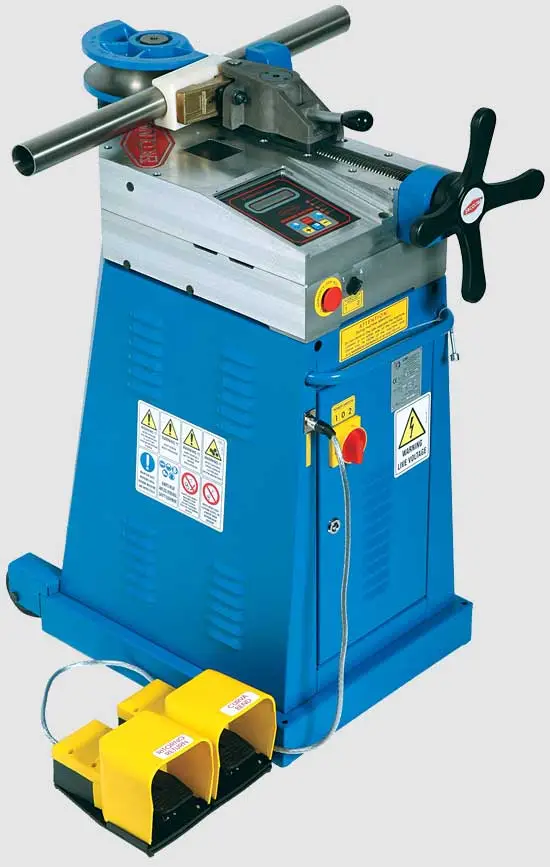

NEW ERCOLINA TB60

(NEW) ERCOLINA ROTARY DRAW BENDER

MODEL: TB60

FACTORY SPECIFICATIONS

BENDING CAPACITIES

Tube, Minimum: 1/4"

Tube, Maximum: 2-1/2"

Pipe, Maximum: 2" Schedule 40

Centerline Radius, Minimum: 2 x Profile Diameter

Centerline Radius, Maximum: 15"

Degree Of Bend: 0-210 Degrees

*All capacities based on A53 grade A 48,00 psi tensile materials; heavy wall and high tensile materials reduce machine capacity.

SPECIFICATIONS

Bending Speed: 1.7 or 3.4 RPM

Programming: NC With Touchpad, (30) Programs, (9) Bends Per Program

Voltage: 220 or 440 Volt, 3 Phase

EQUIPPED WITH

Foot Pedal: Allows For Hands-Free Operation

Touch Screen Programming

Digital Display Of Bend Angle

Electronically Monitored Counterbending Die Vise Position For Accuracy and Repeatability

Quick-Change Tooling System

Material Springback Compensation

Approximate Weight: 450 Lbs.

F.O.B. Davenport, IA

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
