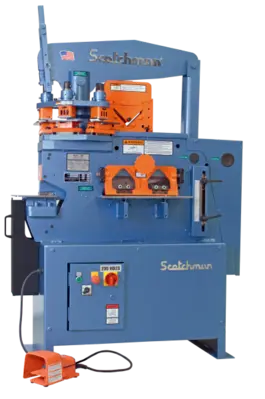

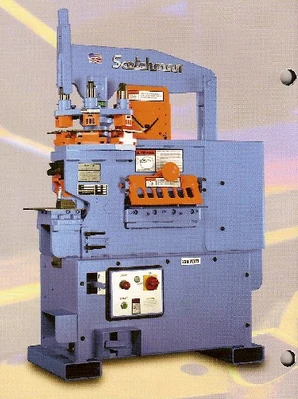

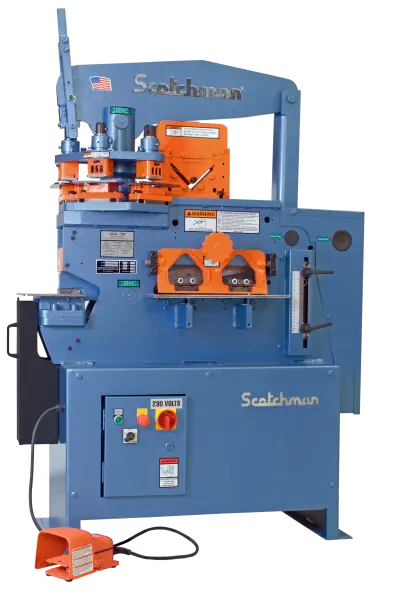

NEW SCOTCHMAN 5014-ET

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER

MODEL: 5014-ET

STANDARD FEATURES

Single Operator, 7 Stations

50 Ton Punch Station With 3-Station Revolving Turret

Keyed Punch Ram For Safety

4" Throat Depth

Three 2" Die Holders, Three Punch Nuts With Wrench and Three Strippers

One Round Punch & Die: Maximum Diameter 1"

Adjustable Electric Stroke Control With Scale

Electric Remote Foot Pedal

Flat Bar Shear With 4-Way Reversible Blade

Tool Table Work Area

Slug Receptacle

Electrical Box Supplied With Emergency Palm Button and Lock-Out

 Tag-Out Accommodations

230/460 Volt/3 Phase Electrics (Must Specify Voltage)

All Guards Necessary To Comply With ANSI B 11-5 Standards

Forklift Accommodations

Three Year Warranty On Parts

Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 50 Ton

1-1/4" In 1/2"

13/16" In 3/4"

Special Tooling: 2-1/4" Maximum Diameter

Throat Depth: 4"

Flat Bar Shear: 14" Length

3/4" x 4"

1/2" x 8"

3/8" x 10"

1/4" x 14"

Optional Saber Blade: 1/2" x 10", 3/8" x 12"

Angle Shear, 90 Degrees: 4" x 4" x 3/8"

Angle Shear, 45 Degrees: 2" x 2" x 3/8"

Brake 8"*: 25 Ton

Brake 12*: 25 Ton

Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"

Rectangle Notcher: 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" x 3/8"

90 Degree V-Notcher*: 6" x 6" x 1/8"

Rod Shear*

Round Rod, 5 Cavity: 1/4" to 1"

Square Rod, 1 Cavity: 1/4" to 3/4"

Square Tube Shear*: 1/2" to 1", 12 Gauge

Picket Tool Housing*: 1/2", 3/4", 1", 16 Gauge

Strokes Per Minute, Light Material, 1/4" Stroke: 40 SPM

Strokes Per Minute, Heavy Material, 3/4" Stroke: 17 SPM

Hydraulics: 2350 PSI

Standard Motor: 3 HP, 3 Phase 230/460/208//380/575 V

Optional Motor: 5 HP, 1 Phase 220 V

*Optional Equipment Available

Dimensions: 23"W x 48"L x 70"H

Approximate Weight: 1575 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS, SUBJECT TO CHANGE AND/OR MODIFICATION
