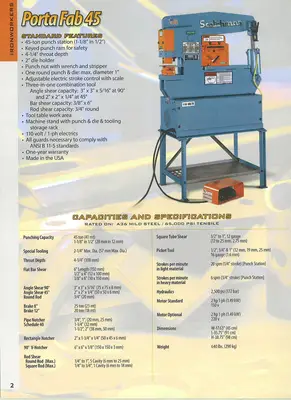

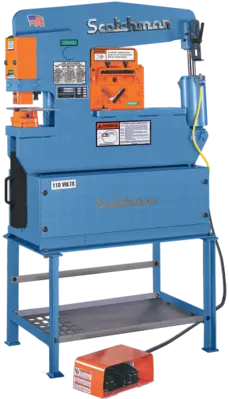

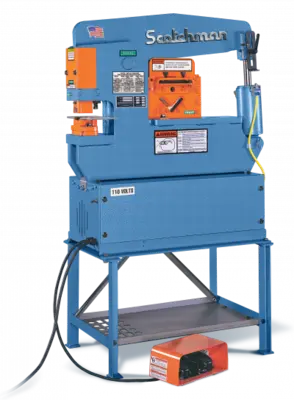

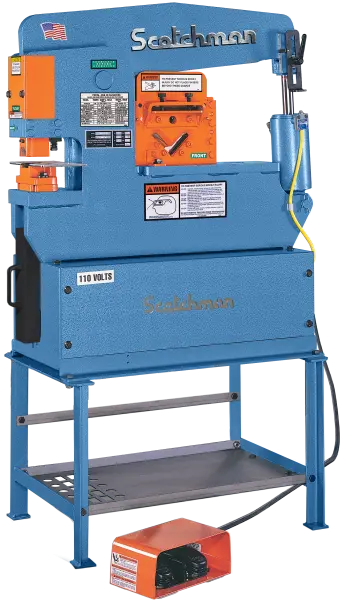

NEW SCOTCHMAN PORTA FAB 45

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER


MODEL: PORTA-FAB 45

STANDARD FEATURES

45 Ton Punch Station
Keyed Punch Ram For Safety
2" Die Holder
Punch Nut With Wrench and Stripper
One Round Punch and Die: Maximum Diameter 1"
Electric Remote Foot Pedal
Adjustable Electric Stroke Control With Scale
Tool Table Work Area
Machine Stand With Punch and Die and Tooling Storage Racks
110 Volt/1 Phase Electrics
All Guards Necessary To Comply With ANSI B 11-5 Standards
Three-Year Warranty
Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 45 Ton
1-1/8" In 1/2"
Special Tooling: 2-1/4" Maximum Diameter
Throat Depth: 4-1/4"
Flat Bar Shear: 6" Length
1/2" x 4"
3/8" x 6"
Angle Shear, 90 Degrees: 3" x 3" x 5/16"
Angle Shear, 45 Degrees: 2" x 2" x 1/4"
Brake 8"*: 25 Ton
Brake 12*: 20 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"
Rectangle Notcher*: 2" x 1-3/4" x 1/4"
90 Degree V-Notcher*: 6" x 6" x 1/8"
Rod-Angle Combo*
Angle Shear: 2" x 2" x 1/4"
Round Rod: 1/4" to 1"
Square Rod: 1/4" to 3/4"
Square Tube Shear*: 1/2" to 1", 14 Gauge
Picket Tool Housing*: 1/2", 3/4", 1"
Strokes Per Minute, Light Material: 10 SPM
Strokes Per Minute, Heavy Material: 4 SPM
Hydraulics: 2500 PSI
Standard Motor: 2 HP, 1 Phase 110 V
Optional Motor: 2 HP, 1 Phase 220 V

*Optional Equipment Available

Dimensions: 18"W x 36"L x 39"H
Approximate Weight: 700 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
