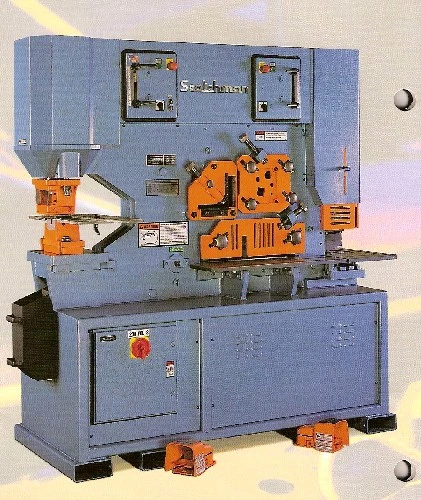

NEW SCOTCHMAN DO 8514-20M

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER

MODEL: DO 8514-20M

STANDARD FEATURES

Dual Operator Allows For Two Operators To Work At The Same Time At Full Capacity

85 Ton Punch Station

Keyed Punch Ram For Safety

Punch Gauging Table With Fence and Scale

Die Holder Complete With 2" Die Insert

Punch Nut With Wrench and Stripper

Adjustable Swing-Away Stripper

Punch Jog Control

Two Adjustable Electric Stroke Controls With Scale

Two Electric Remote Foot Pedals

Two 2-Stage Hydraulic Pumps

Two Valves

6" x 6" x 1/2" Slug-Less Angle Shear

Built-In Rectangle Notcher: Can Be Converted To 3" x 3" V-Notcher, 50 Ton Punch Station,

 and 6" Open End Brake

20" Flat Bar Shear

Shear Table With Miter Fence

Rod Shear: 1/2", 3/4", 1", 1-1/2" Round and 1-1/2" Square

Slug Receptacles

Electrical Box Supplied With Emergency Palm Button and Lock-Out

Tag-Out Accommodations

230/460 Volt/3 Phase Electrics (Must Specify Voltage)

All Guards Necessary To Comply With ANSI B 11-5 Standards

Forklift Accommodations

Three Year Warranty

Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 85 Ton, 1-1/16" In 1"

Special Tooling: 4" Maximum Diameter

Throat Depth: 14"

Flat Bar Shear: 20" Length

 1" x 16"

 3/4" x 20"

Angle Shear, 90 Degrees: 6" x 6" x 1/2"

Angle Shear, 45 Degrees: 4" x 4" x 1/2"

Brake 12"*: 85 Ton

Brake 24"*: 85 Ton

Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"

Rectangle Notcher: 2" x 4" x 1/2"

90 Degree V-Notcher (Notcher Station): 3" x 3" x 1/2"

90 Degree V-Notcher (Punch Station): 9" x 6" x 5/16"

Punch Attachment (Notcher Station): 50 Ton, 1-1/4" in 1/2"

Throat Depth With Punch Attachment: 4-7/16"

Channel Shear: 2" to 6"

Rod Shear

Round Rod: 1/2", 3/4", 1", 1-1/2"

Square Rod: 1-1/2"

Square Tube Shear*: 1/2" to 2", 12 Gauge

Picket Tool Housing*: 1/2", 3/4", 1", 16 Gauge

Offset Die Holder: Maximum 40 Ton

Strokes Per Minute, Light Material: 48 SPM

Strokes Per Minute, Heavy Material: 20 SPM

Hydraulics: 3350 PSI

Standard Motor: 10 HP, 3 Phase 230/460/208//380/575 V

Optional Motor: 10 HP, 1 Phase 230 V

*Optional Equipment Available

Dimensions: 30"W x 70"L x 77"H

Approximate Weight: 5500 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS, SUBJECT TO CHANGE AND/OR MODIFICATION
