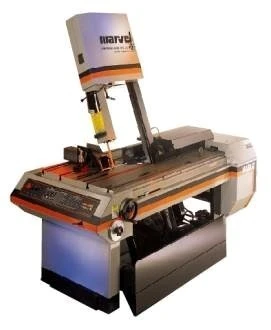

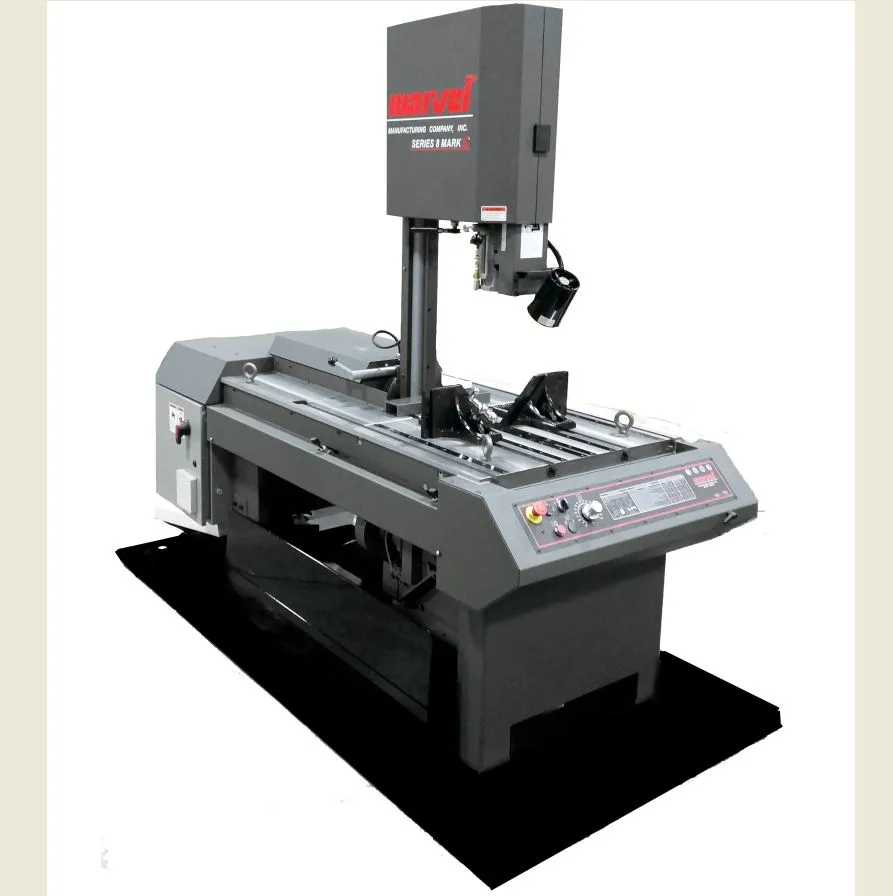

USED MARVEL SERIES 8 MARK II

MARVEL TILT FRAME VERTICAL BAND SAW

MODEL: Series 8 Mark II

GENERAL SPECIFICATIONS

*Tilting Column For Straight and Miter Cutting

*Miter Cutting: Column and Blade Tilt Up To 45 Degrees Right and Left of

*Vertical. Work Always Stationary. Built-In Protractor.

Horizontal Capacity: 18"

Vertical Capacity: 22"

Vertical Capacity at 45 Degrees: 12-3/4"

Blade Size: 14'6" x 1" x .035"

Blade Speed Range: 50 to 450 FPM, Infinitely Variable With Inverter Drive

Feed Force: 0 to 140 Lbs., Infinitely Variable

Wheel Diameter: 19"

Table Height: 34.5"

T-Slotted Work Table: 33" x 24.25"

Maximum Vise Opening: 21"

EQUIPPED WITH

5 HP Drive Motor

Coolant System: Built-In With Flood System.

1/8 HP Coolant Pump

Flushing Hose

Quick-Action Vise: Jaws Can Be Shifted To Either Right Or Left Side Of Blade

 Jaws Are 6" High, 12" Wide

Power Chip Brush

Automatic Stops: Adjustable Stops Can Be Pre-Set To Stop Advance and Return Of

 Blade, and Also To Stop Motor At Any Location Within The 18" Travel Of The

 Blade

Front Mounted Speed Control: Allows Blade Speed To Be Adjusted From Operator's

 Control Station

Approximate Weight: 2600 Lbs.

F.O.B. Oshkosh, Wisconsin

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
