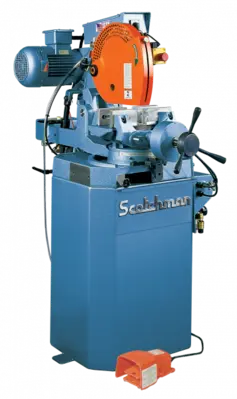

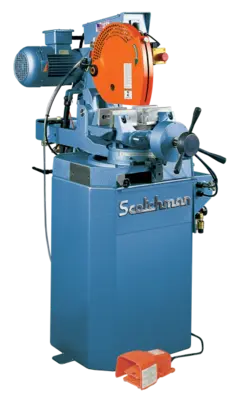

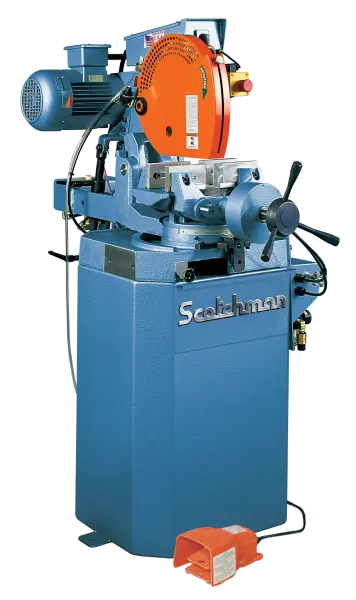

NEW SCOTCHMAN CPO 350 NF PK/PD

(NEW) SCOTCHMAN COLD SAW

MODEL: CPO 350 NF PK/PD

GENERAL SPECIFICATIONS

Semi-Automatic Saw
*Air-Operated Clamp For Material Vise
*Pneumatic Power Down Feed With Electric Controls
*Separate Feed Controls For Rate and Pressure
*Capable Of Slotting
*Positive Cog Belt Driven

Maximum Blade Diameter: 14"
Arbor Bore: 1-9/16"
Cutting Speeds: 1500 & 3000 RPM
Miter Capabilities: 45 Degrees Left To 45 Degrees Right

Maximum Capacities
Round Tubing, 90 Degrees: 4-1/2"
Round Tubing, 45 Degrees: 4-1/4"
Square Tubing, 90 Degrees: 4-1/4" x 4-1/4"
Square Tubing, 45 Degrees: 4" x 4"
Rectangle Tubing, 90 Degrees: 5-1/2" x 4"
Rectangle Tubing, 45 Degrees: 4" x 4"
Round Solids, 90 Degrees: 3"
Round Solids, 45 Degrees: 2-1/2"
Square Solids, 90 Degrees: 3" x 3"
Square Solids, 45 Degrees: 2-1/2" x 2-1/2"

EQUIPPED WITH

3/3.8 HP Motor
Double Self-Centering Vise
Hardened and Ground Worm and Wheel Gear Box
Coolant System
30" Material Length Stop
Emergency Stop Button

Three Year Warranty
Made In USA

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
