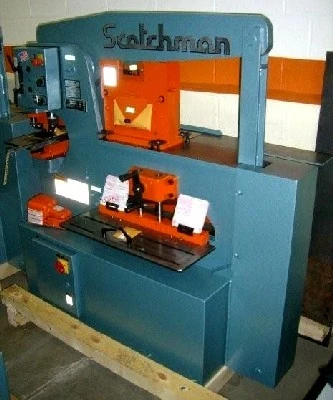

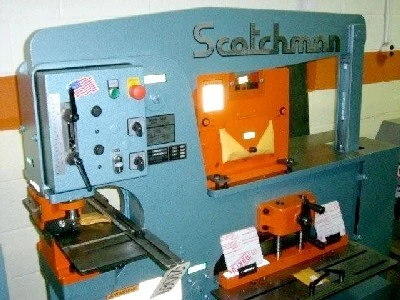

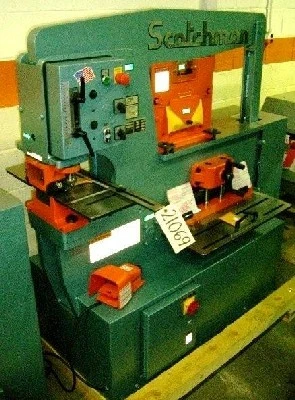

NEW SCOTCHMAN 6509-24M

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER

MODEL: 6509-24M

STANDARD FEATURES

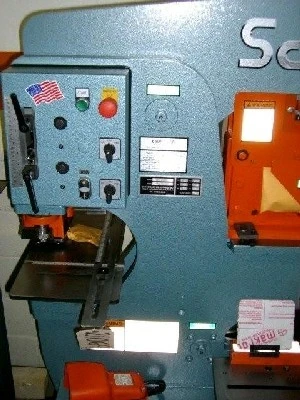

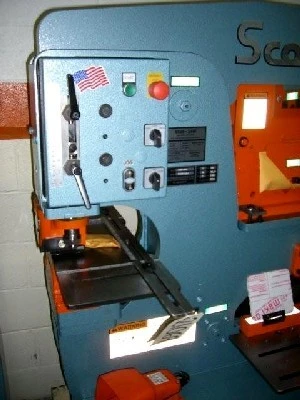

65 Ton Punch Station

Keyed Punch Ram For Safety

Die Holder Complete With 2" Die Insert

Punch Nut With Wrench and Stripper

Punch Jog Control

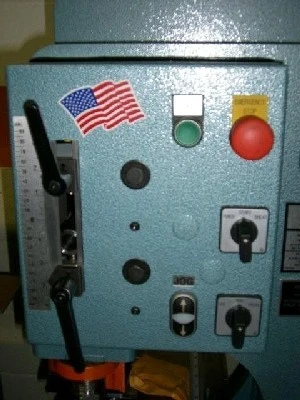

Adjustable Electric Stroke Control With Scale

Electric Remote Foot Pedal

Flat Bar Shear With 4-Way Reversible Blade

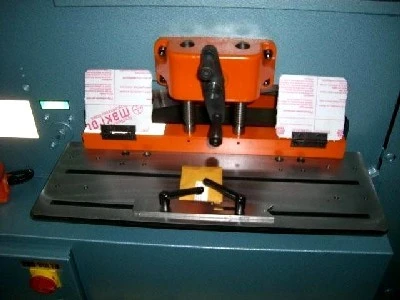

Tool Table Work Area

Two-Stage Hydraulic Pump

Electrical Box Supplied With Emergency Palm Button and Lock-Out

Tag-Out Accommodations

230/460 Volt/3 Phase Electrics (Must Specify Voltage)

All Guards Necessary To Comply With ANSI B 11-5 Standards

Forklift Accommodations

Three-Year Warranty

Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 65 Ton

1-1/16" In 3/4"

Special Tooling: 4" Maximum Diameter

Throat Depth: 9"

Flat Bar Shear: 24" Length

1" x 6"

3/4" x 10"

3/8" x 16"

1/4" x 24"

Optional Saber Blade: 1" x 8"

1/2" x 16"

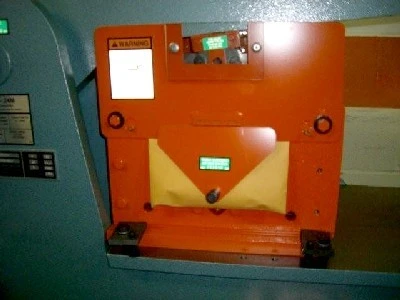

Angle Shear, 90 Degrees: 6" x 6" x 3/8"

45 Degrees: 3" x 3" x 3/8"

With Bar Shear: 4" x 4" x 1/2"

Brake 12"*: 40 Ton

Brake 24"*: 30 Ton

Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"

Rectangle Notcher*: 2" x 2-1/2" x 3/8"

90 Degree V-Notcher*: 6" x 6" x 5/16"

Channel Shear: 2" to 5" Adjustable

Rod Shear

Round Rod: 1/4" to 1-1/4", 9 Cavity

Square Rod: 1/4" to 1", 1 Cavity

Square Tube Shear*: 1/2" to 2", 14 Gauge

Picket Tool Housing*: 1/2", 3/4", 1"

Strokes Per Minute, Light Material: 40 SPM

Strokes Per Minute, Heavy Material: 17 SPM

Hydraulics: 2500 PSI

Standard Motor: 5 HP, 3 Phase 230/460/208//380/575 V

Optional Motor: 5 HP, 1 Phase 230 V

*Optional Equipment Available

Dimensions: 24"W x 60"L x 66"H

Approximate Weight: 2750 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
