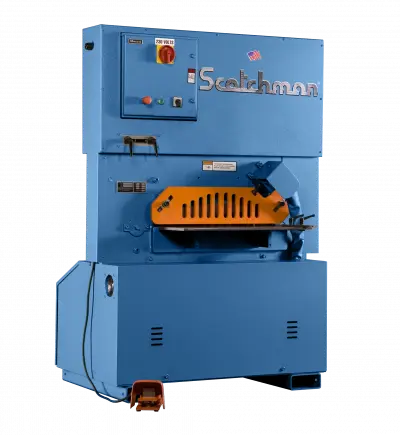

NEW SCOTCHMAN SHEARMASTER 610

SCOTCHMAN HYDRAULIC SHEAR

MODEL: ShearMaster 610

FACTORY SPECIFICATIONS

Shearing Capacity: 1" x 12"
                               3/4" x 16"
                               1/2" x 24"
Strokes Per Minute, Full Stroke: 12
Strokes Per Minute, Half Stroke: 30

EQUIPPED WITH

10 HP Motor, 230/460/60/3
Four-Way Reversible Blades
Two Stage Hydraulic Pump
Shear Table With Miter Fence
Hydraulic Holddown
Electric Back Gauge
Electric Stroke Control
Electric Foot Pedal
Electrical Box With Emergency Palm Button and Lock-Out
Forklift Accommodations
Three Year Warranty On Parts

AVAILABLE OPTIONS

Work Light (Factory Install)
Infeed Conveyor
Advanced Feed System: Call For Price and Delivery

Approximate Dimensions: 32"W x 48"L x 70"H
Approximate Weight: 3100 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
