NEW BURR KING 482

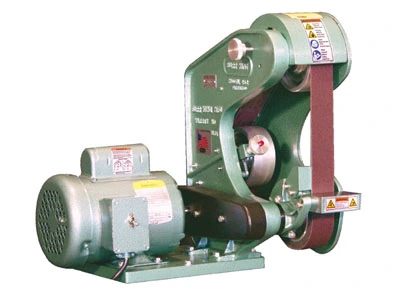

(NEW) BURR KING BELT GRINDER

MODEL: 482

FEATURES

*Can Be Bench Or Pedestal Stand Mounted Depending On Application
*Contact Wheel, Platen and Workrest Support Grinding
*Slack Belt Grinding
*Adjustable Belt Tensioning
*Positive Belt Tracking
*Quick Belt Change
*Large Throat Clearance For Enhanced Work Point Access
*Precision Machined Cast Aluminum Frame
*Accepts Internal Grinding Attachments
*Accepts Nylon, Buffing, Wire, Fiber Wheels

GENERAL SPECIFICATIONS

Belt Width: Up to 2"
Belt Length: 48"
Abrasive Belt Speed: 6000 SFPM
Motor: 1 HP, 115/230/60/1
Throat Clearance: 7-1/2"
Contact Wheel: 5" x 2"
Base Area: 10" x 13"
Steel Backup Platen: 2" x 6" x 1/8"

Approximate Weight: 80 Lbs.

F.O.B. Warsaw, MO

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
