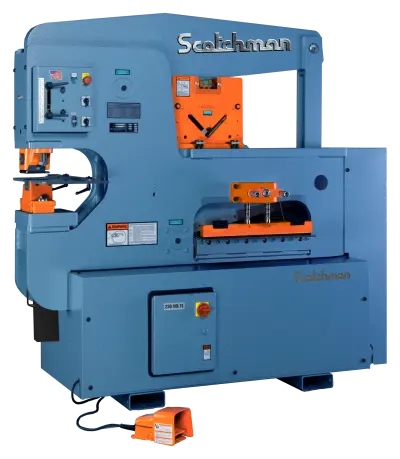

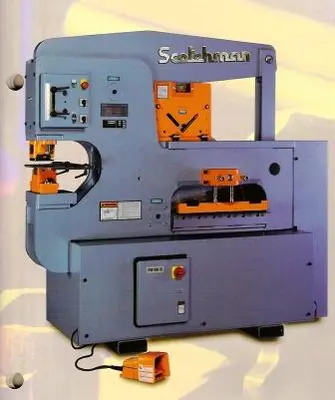

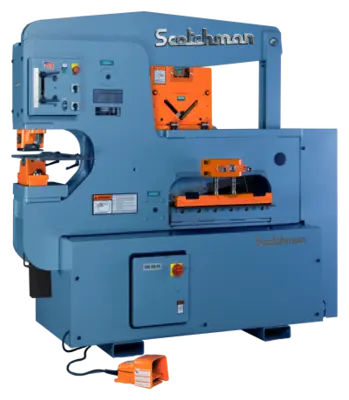

NEW SCOTCHMAN 12012-24M

(NEW) SCOTCHMAN HYDRAULIC IRONWORKER

MODEL: 12012-24M

STANDARD FEATURES

120 Ton Punch Station (1-1/2" in 1")

Keyed Punch Ram For Safety

Punch Gauging Table With Fence and Scale

Die Holder Complete With 2" and 2-1/2" Die Inserts

#40 and #45 Punch Nuts With Wrench and Stripper

Punch Jog Control

Adjustable Electric Stroke Control With Scale

Electric Remote Foot Pedal

Flat Bar Shear With 4-Way Reversible Blade

Tool Table Work Area

Two-Stage Hydraulic Pump

Electrical Box Supplied With Emergency Palm Button and Lock-Out

Tag-Out Accomodations

230/460 Volt/3 Phase Electrics (Must Specify Voltage)

All Guards Necessary To Comply With ANSI B 11-5 Standards

Forklift Accomodations

Three-Year Warranty

Made In USA

CAPACITIES AND SPECIFICATIONS: Rated On: A 36 Mild Steel/65,000 psi Tensile

Punching Capacity: 120 Ton

1-1/2" In 1"

Special Tooling: 4" Maximum Diameter

Throat Depth: 12"

Flat Bar Shear: 24" Length

1" x 12"

3/4" x 20"

5/8" x 18"

1/2" x 24"

Angle Shear, 90 Degrees: 6" x 6" x 1/2"

45 Degrees: 3" x 3" x 3/8"

Brake 12"*: 83 Ton

Brake 24"*: 65 Ton

Open End Brake*: Max. 1/4" x 6" Flat or Angle Iron

Pipe Notcher, Schedule 40 I.D.*: 3/4", 1", 1-1/4, 1-1/2", 2"

Rectangle Notcher*: 2" x 2-1/2" x 3/8"

90 Degree V-Notcher*: 6" x 6" x 5/16"

Channel Shear*: 2" to 6" Adjustable

Rod Shear*

Round Rod: 1/4" to 1-1/4", 9 Cavity

Square Rod: 1/4" to 1", 1 Cavity

Square Tube Shear*: 1/2" to 2", 14 Gauge

Picket Tool Housing*: 1/2", 3/4", 1"

Offset Die Holder*: Max. 40 Ton

Strokes Per Minute, Light Material: 37 SPM

Strokes Per Minute, Heavy Material: 25 SPM

Hydraulics: 2600 PSI

Standard Motor: 5 HP, 3 Phase 230/460/208//380/575 V

Optional Motor: 5 HP, 1 Phase 230 V

*Optional Equipment Available

Dimensions: 28"W x 77"L x 73"H

Approximate Weight: 5200 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
