USED WDM 403-13-10

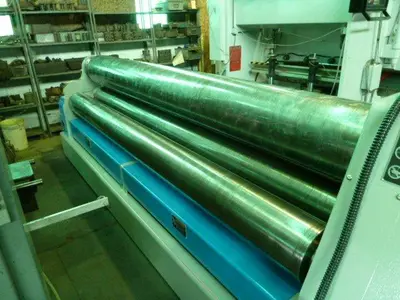

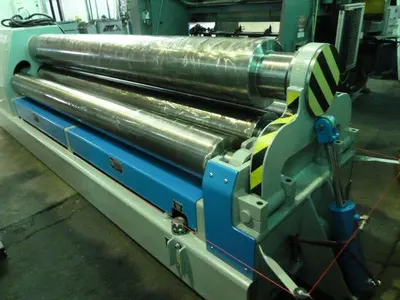

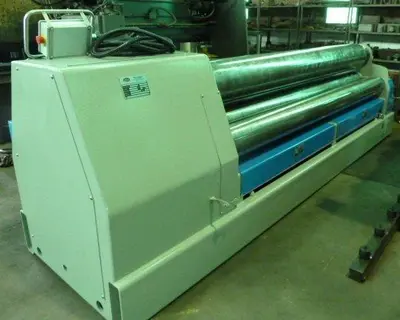

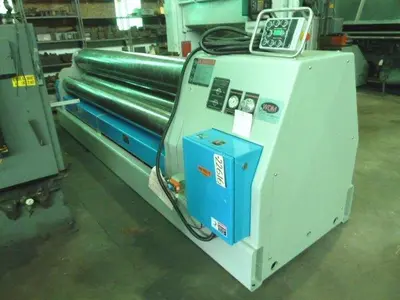

WDM Double Pinch Hydraulic Plate Bending Roll

MODEL: 403-13-10

SERIAL NUMBER: 61078-11

GENERAL SPECIFICATIONS

Total Hydraulic Operation

Two Roll Drive

Capacity: 10' x 19/32"

Nominal Roll Diameter: 13"

Roll Speed, Infinitely Variable: 0 to 22 FPM

EQUIPPED WITH

25 HP Drive Motor

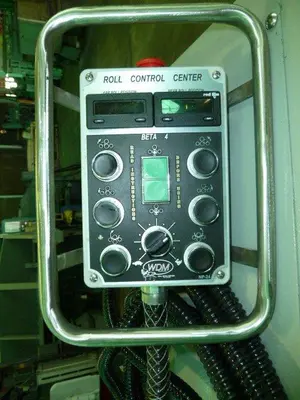

Beta 4 Pendant Control

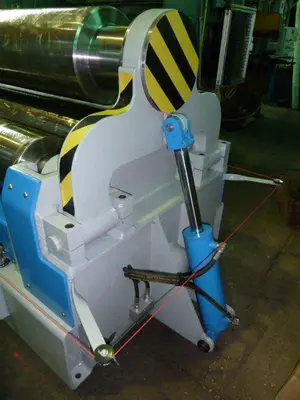

Hydraulically Actuated Drop End

Safety/Emergency Stop Cable On 3 Sides Of Machine

Overload Protection

Approximate Weight: 38,500 Lbs.

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
