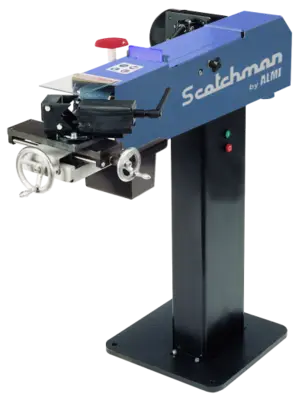

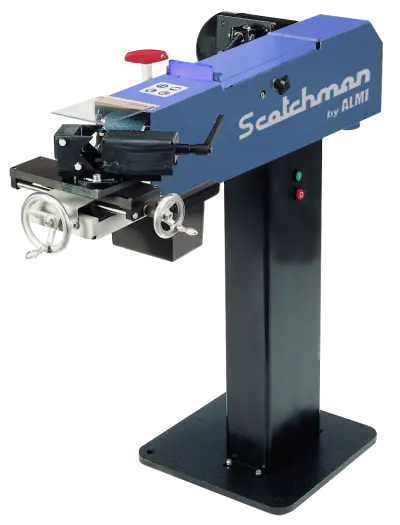

NEW SCOTCHMAN AL100-U-02

(NEW) SCOTCHMAN TUBE & PIPE GRINDER/NOTCHER

Grinding Capacity: 3/4" to 3" O.D.
Angle Range: Straight = 90 Degrees to 30 Degrees
Speed: 3420 RPM
Belt Speed: 98.4 Feet Per Second
Belt Size: 4" x 78-3/4"

Scotchman Tube & Pipe Grinder/Notchers are strong, accurate machines that operate at high speeds. Stainless-steel sections and pipes can be machined problem free, at high speed without grinding burrs or heat discoloration. The grinding rollers can be changed without tools in just seconds, saving time and money! The grinding belt can also be changed easily from one side of the machine. Once the sections and pipes have been ground, they can be deburred using the handy deburring table on top of the machine.

Scotchman machines with lever operation are suitable for left and right-handed operators. The pipe grinder/notchers offer toruble-free, accurate, quick and efficient machining of tubes and pipes for many years; and are backed by a 3-year warranty

Produces Gap-free Fits Ready for Welding

Smooth Operation with Minimal Vibration

Notches via Adjustments Straight =90° to 30° in Tube or Pipe from 3/4" to 3" Diameter in Seconds

Operated with Two Handwheels or a Hand Lever

Two Axis Precision Crossfeed Table with Both Handwheels and Hand Lever Feed Handle

Heavy Duty Frame and Base Construction

Mandrel Centerline Adjustment

One Vise Holds All Pipe and Tube Sizes

Top-mounted Deburring Surface

Easy Setup with Vise Graduated in Degrees

13 Mandrels available to Ensure Correct Gap-free Fits

Supplied with 2 Belts and Two Pipe Mandrels (1-1/4" & 1-1/2")

Belt Tensioning System Simplifies Tensioning the Grinding Belt

Tool-free Belt and Mandrel Change over

Grinding Belt can be Tensioned Quickly using the Hexagonal Spanner Supplied with the Machine

Grinding Rollers can be Changed in Seconds

Warranty: Three Years

 EQUIPPED WITH

4 HP Motor

Dimensions: 59" x 47" x 20"
Approximate Weight: 420 Lbs.

F.O.B. Philip, South Dakota

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
