NEW WELLSAW 613

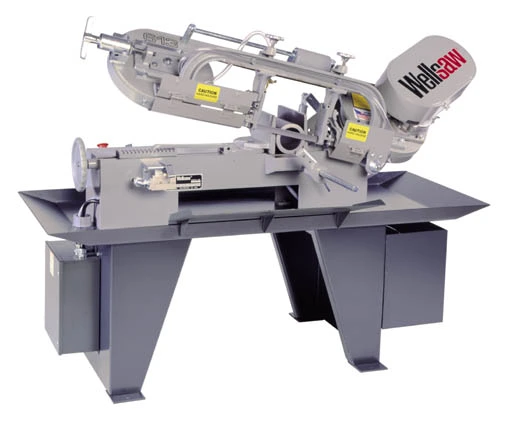

(NEW) WELLSAW HORIZONTAL BAND SAW

MODEL: 613

FACTORY SPECIFICATIONS

Capacity, Rectangle: 6"H  x 13"W

Capacity, Round: 7"

Capacity, Flat: 13"

Capacity, 45 Degree Angle: 6" x 6-1/2"

Blade Speeds: (4) 50, 90, 160, 250 FPM

Blade Size: 3/4" x .035" x 99"

Band Wheels: 11" Diameter

Bed Height: 29"

Coolant Tank Capacity: 8 Gallons

EQUIPPED WITH

1 HP Motor

Four Speed V-Belt Drive

Hydraulic Feed Control w/Adjustable Counterbalance Spring

Blade Brush

Quick Acting Vise

Positive Frame Lock

Auto Shut-Off At Completion Of Cut

Rite-Tension Band Tensioning Device

Ball Bearing Guides

Coolant System

Under Voltage and Overload Protection

Precision Ground Bed

Approximate Shipping Weight: 650 Lbs.

F.O.B. Kalamazoo, Michigan 49004

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
