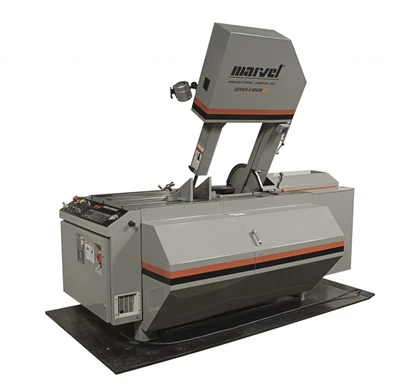

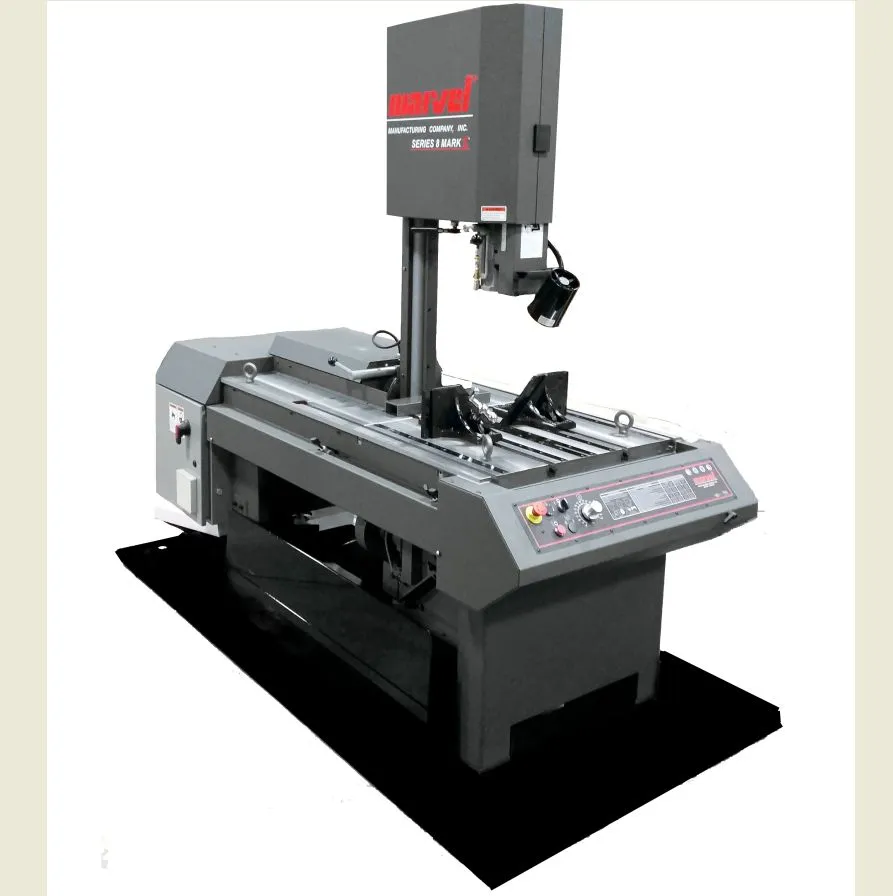

NEW MARVEL SERIES 8 MARK III

(NEW) MARVEL TILT FRAME VERTICAL BAND SAW

MODEL: Series 8 Mark III

FACTORY SPECIFICATIONS

*Tilting Column For Straight and Miter Cutting

*Miter Cutting: Column and Blade Tilt Up To 60 Degrees Right and Left of Vertical

*Work Always Stationary. Built-In Protractor.

Capacity, Blade At 90 Degrees: 18" Horizontal, 22" Vertical

Capacity, Blade At 45 Degrees Right: 18" Horizontal, 14-1/2" Vertical

Capacity, Blade At 45 Degrees Left: 18" Horizontal, 13" Vertical

Capacity, Blade At 60 Degrees Right: 18" Horizontal, 9.7" Vertical

Capacity, Blade At 60 Degrees Left: 18" Horizontal, 7.3" Vertical

Capacity, Column In 3 Degree Forward Cant Position: 17.5" Horizontal, 22" Vertical

Blade Speed Range: 50 to 450 FPM, Infinitely Variable With Inverter Drive

Feed Range: 0 - 250 Lbs., Infinitely Variable

Wheel Diameter: 19"

Table Height: 34.5"

T-Slotted Work Table: 33" x 24.25"

Maximum Vise Opening: 18"

EQUIPPED WITH

5 HP Drive Motor

Automatic Column Return

Coolant System: Built-In With Flood System.

1/8 HP Coolant Pump

Flushing Hose

Quick-Action Vise: Jaws Can Be Shifted To Either Right Or Left Side Of Blade

 Jaws Are 6" High, 12" Wide

Power Chip Brush

Automatic Stops: Adjustable Stops Can Be Pre-Set To Stop Advance and Return Of

 Blade, and Also To Stop Motor At Any Location Within The 18" Travel Of The Blade

Front Mounted Speed Control: Allows Blade Speed To Be Adjusted From Operator's

 Control Station

Controls: IEC Fused Disconnect Switch and Magnetic Starters, With Overload and Low-Voltage  Protection. Disconnect Is NFPA79 Compliant. DC Power Supply Provides Low Voltage Control (24  Volts) To All Push Buttons At Operator's Control Panel and Machine Lighting Circuits. PLC Control and  Components Mounted In Moisture Proof NEMA 12 Compartment. Electrical Panel Is  UL Labeled.

Approximate Weight: 3100 Lbs.

F.O.B. Oshkosh, Wisconsin

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
