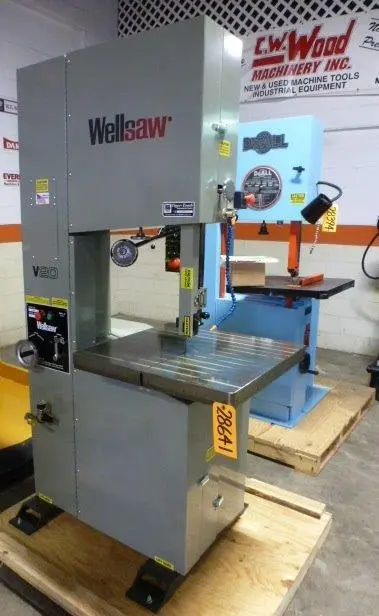

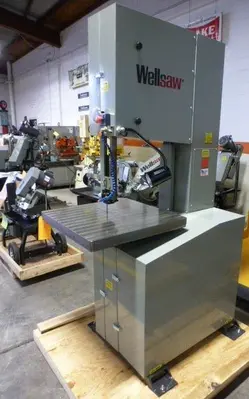

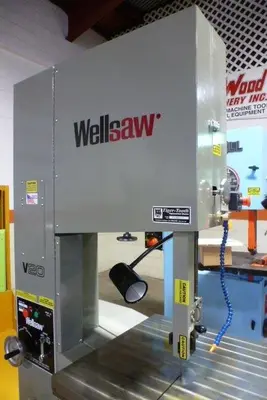

NEW WELLSAW V-20

(NEW) WELLSAW VERTICAL BAND SAW

MODEL: V-20

FACTORY SPECIFICATIONS

Capacity, Throat: 20"
Capacity, Table To Guide: 16"
Blade Size: 3/16" - 3/4"
Blade Length: 14'9"

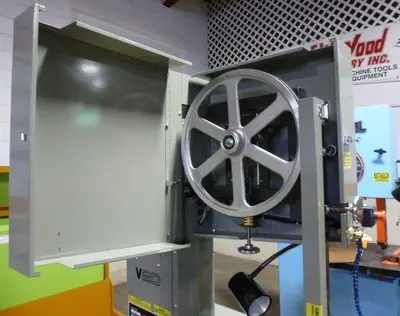

Band Wheels: 21" Diameter
Blade Speeds, Low Range: 45-400 FPM
Blade Speeds, High Range: 325-3000 FPM
Table Size: 26" x 26"
Table Tilt: 5 Degrees Inside, 45 Degrees Outside
Table Height: 37-1/2"

EQUIPPED WITH

3 HP Drive Motor With VFD

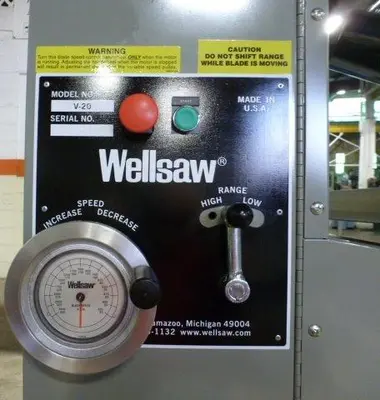

Blade Speed Indicator
Blade Tension Indicator

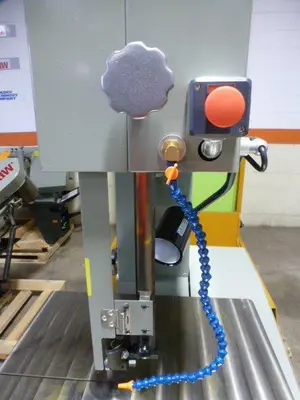

Chip Blower (Shop Air)
Removable Chip Tray
Rotary Blade Brush
Heavy Steel Frame

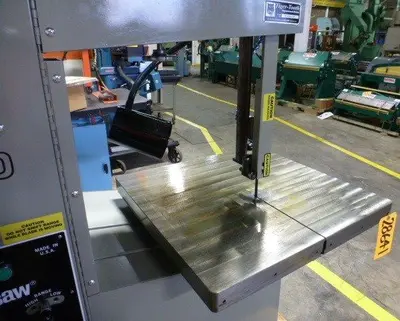

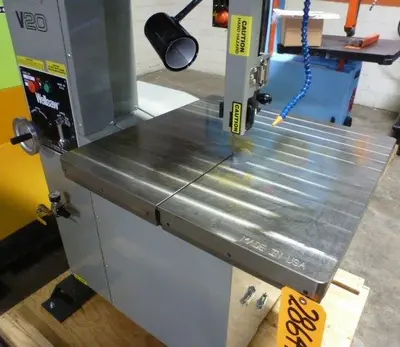

Precision Ground Cast Iron Table
Heavy Duty Roller Guides
Under Voltage and Overload Protection
Two Speed Cast Iron Gearbox
OSHA Blade Guarding
Flexible Arm Work Light

F.O.B.  Kalamazoo, Michigan

Approximate Weight: 1000 Lbs.

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
