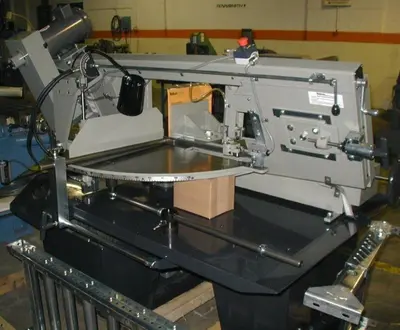

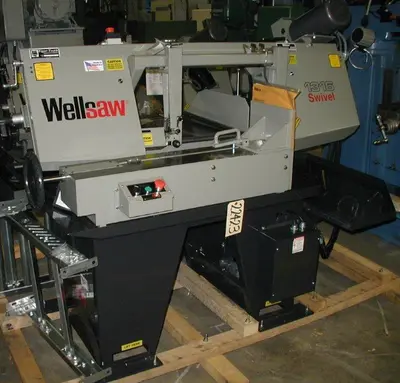

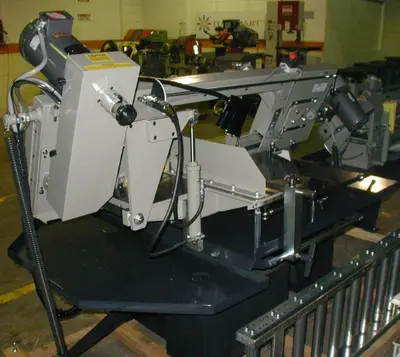

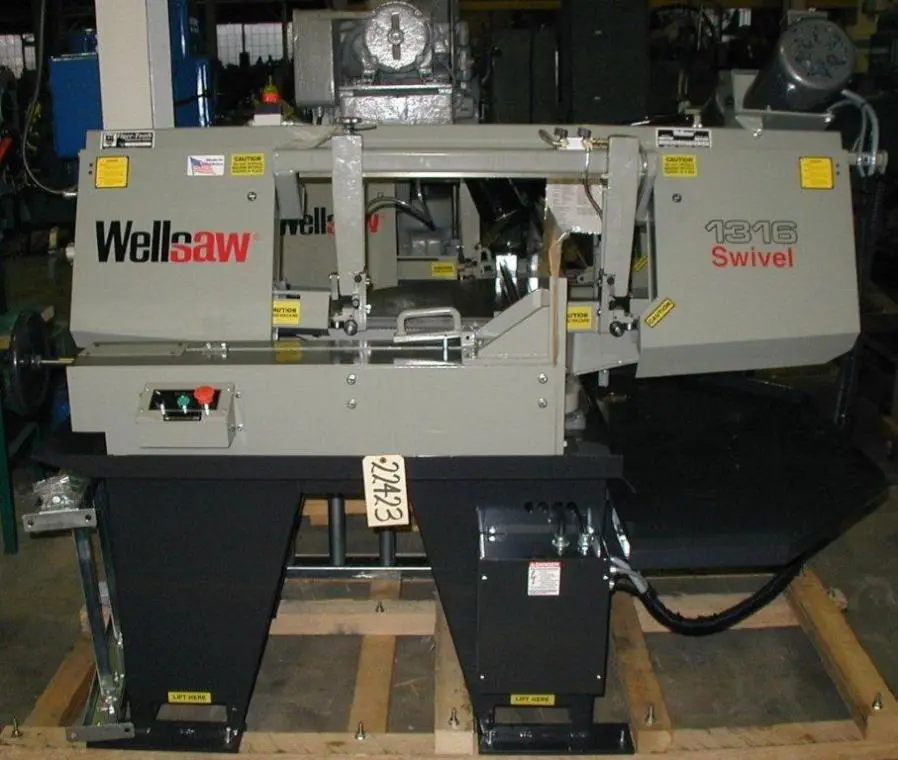

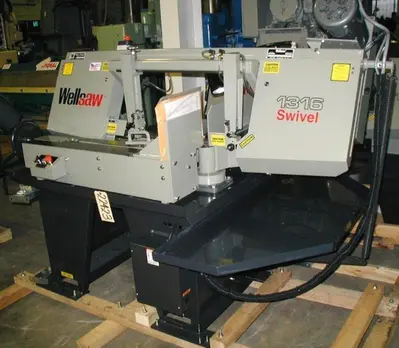

NEW WELLSAW 1316S-SA

WELLSAW SEMI-AUTOMATIC SWIVEL HEAD HORIZONTAL BAND SAW

MODEL: 1316S-SA

FACTORY SPECIFICATIONS

Saw Head Swivels On Precision Ball Bearings

Miter To 60 Degrees, No Need To Swivel The Stock

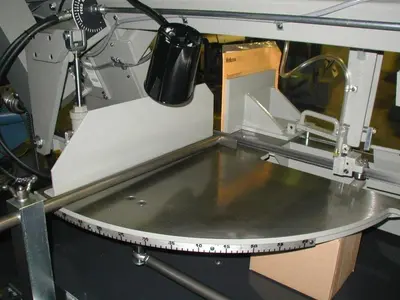

Large Protractor For Accurate Angle Selection

Capacity, Rectangular, 90 Degrees: 13"H x 16"W

Capacity, Rectangular, 45 Degrees: 13"H x 11-1/2"W

Capacity, Rectangular, 60 Degrees: 8-1/2"H x 8"W

Capacity, Rounds, 90 Degrees: 13"

Capacity, Rounds, 45 Degrees: 11-1/2"

Capacity, Rounds, 60 Degrees: 8"

Blade Size: 1" x .035" x 12'6"

Blade Speeds, Infinitely Variable: 70 - 375 FPM

Band Wheels: 15" Diameter Cast Iron

Stock Stop Projection: 25"

Bed Height: 35"

EQUIPPED WITH

3 HP Motor 230/460/60/3 (2 HP Single Phase Motor Optional)

PLC Controlled, Full Cycle Semi-Automatic

Full Function Control Panel For Manual Control Of All Functions

Variable Hydraulic Downfeed Control

"Rite-Tension" Blade Tensioning Device

Wet Cutting System w/Full Surround Pan

Powered Blade Brush

Spring Loaded Carbide Guides With Rollers

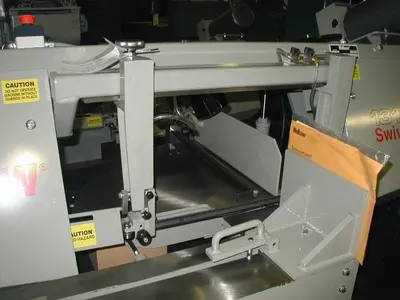

Quick Acting Vise/Air Powered

Precision Ground Bed and Vise Jaws

Adjustable Stock Stop/Back Gauge

Auto Shut-Off At End Of Cut

Magnetic Starter w/Overload and Under voltage Protection

Work Light

5' x 18" Infeed Roller Conveyor

Floor Area: 90"W x 76"L

Approximate Weight: 1800 Lbs.

F.O.B. Kalamazoo, Michigan

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
