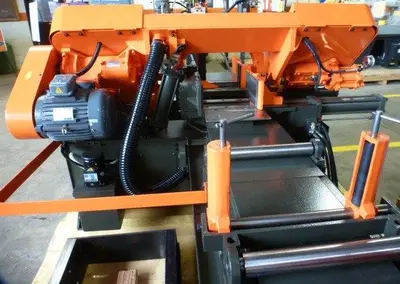

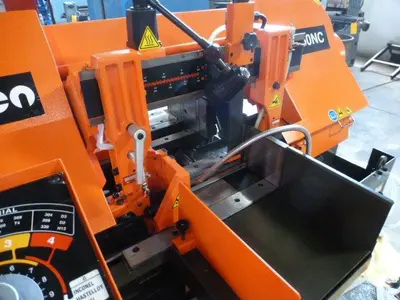

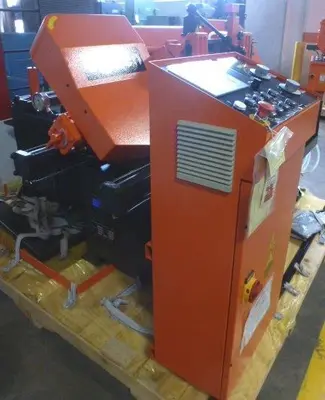

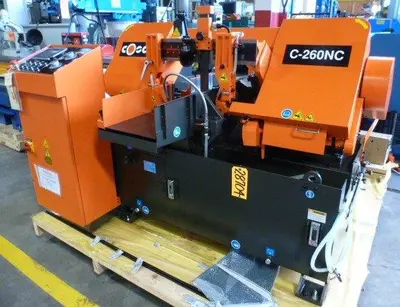

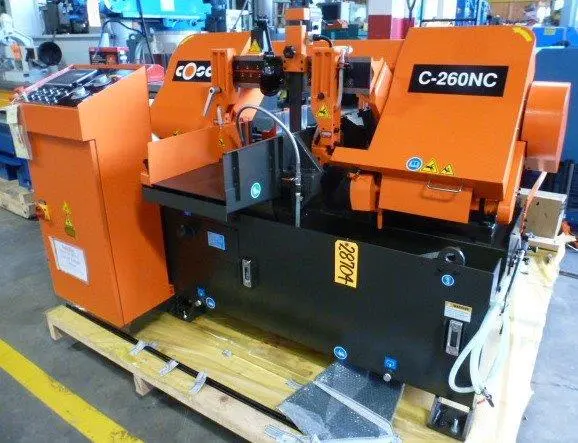

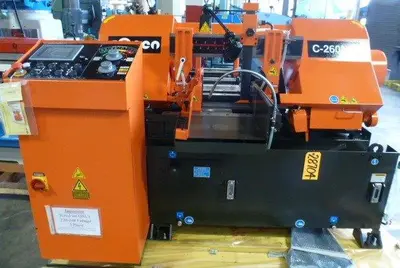

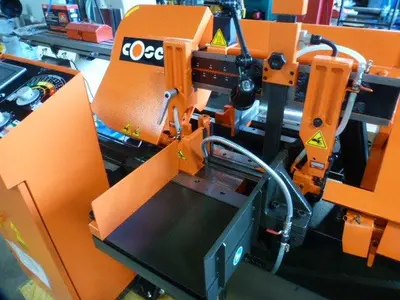

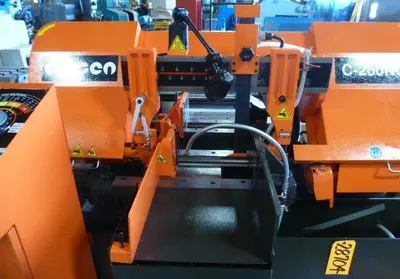

NEW COSEN C-260NC

(NEW) COSEN FULLY PROGRAMMABLE AUTOMATIC FEED HORIZONTAL BAND SAW

MODEL: C-260NC

SERIAL NUMBER:

FACTORY SPECIFICATIONS

Capacity, Rounds: 10.2"

Capacity, Square: 10.2" x 10.2

Capacity, Rectangle: 10.2" x 11.8"

Bundle Capacity (With Optional Top Clamps): 6.1"W x 4.7"H

Blade Speeds, Infinitely Variable: 66 - 328 FPM

Blade Size: 144" x 1-1/4" x .043"

Automatic Feed, Job Storage: Up To 100 Jobs

Automatic Feed, Single Index Stroke: 0 to 15.9"

Automatic Feed, Multiple Stroke Indexing: 0" to 999"

EQUIPPED WITH

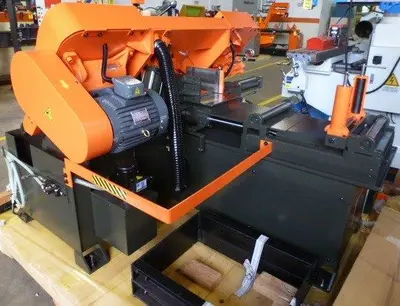

5 HP Blade Drive Motor

1 HP Hydraulic Motor

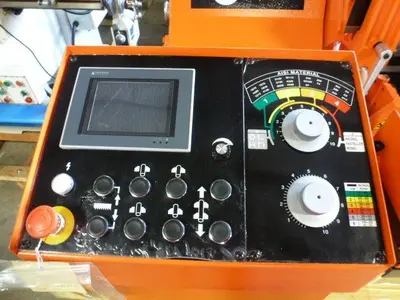

SNC-100 Touch Screen Control: Provides most of the benefits of NC controlled saws at a fraction of  the cost. The SNC control is programmable up to 100 different jobs including quantity and length of  cut. The control automatically compensates for kerf loss after data input and requires no manual  calculation of number of times to index. The control automatically shuts down the machine once the

 programmed number of cuts or out of stock situation has been achieved. The system includes an  error feedback function enabling rapid troubleshooting through an error code to be displayed in the  event of a malfunction.

Mitsubishi PLC Control

Hydraulic Full Stroke Vises w/Double Retracting Rear Vise

Hydraulic Chip Auger

Automatic Kerf Compensation

LED Readout For Setting Of Blade Speed

Automatic Hydraulic Blade Tensioning

Hydraulic Vise Control

Heavy Duty Roller Table 7' Long w/Vertical Rollers

Discharge Table

Vertical Alignment Rollers

Coolant System

Carbide Blade Guides

Floor Space: 85" x 86" x 60"H

Approximate Weight: 3100 Lbs.

F.O.B. Charlotte, North Carolina

FACTORY SPECIFICATION SUBJECT TO CHANGE AND/OR MODIFICATION
