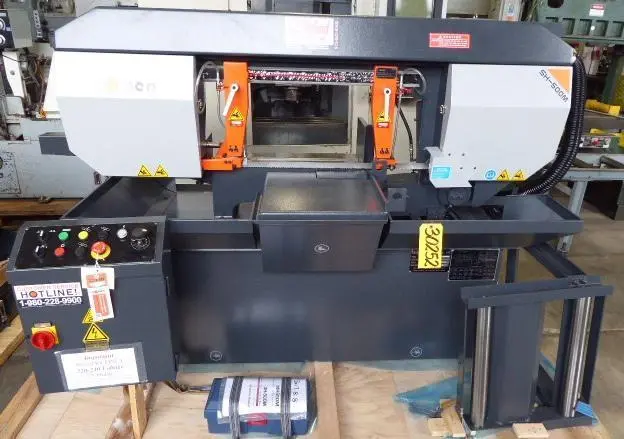

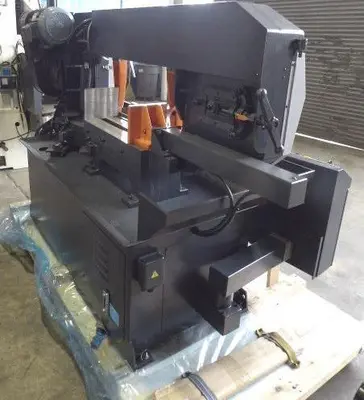

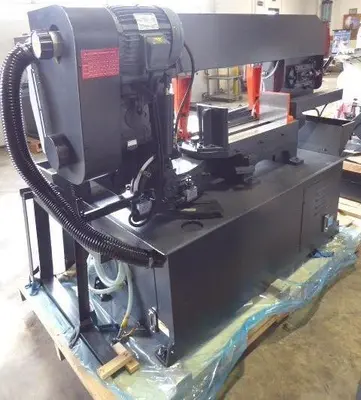

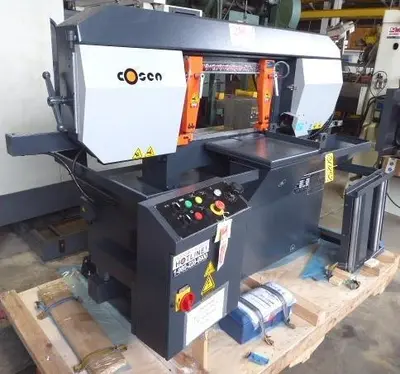

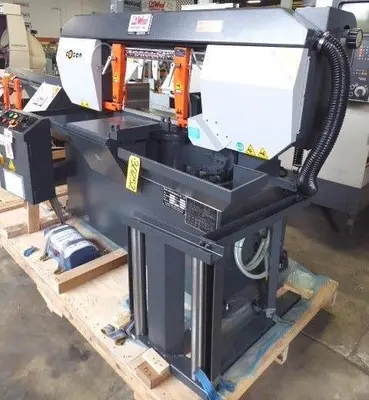

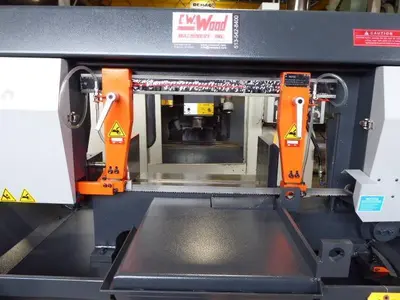

NEW COSEN SH-500M

(NEW) COSEN SEMI-AUTOMATIC MITER CUTTING HORIZONTAL BAND SAW

MODEL: SH-500M

FACTORY SPECIFICATIONS

Miter Capacity: 60 Degrees Maximum
Cutting Capacity, Round, 90 Degrees: 13"
Cutting Capacity, Round, 45 Degrees: 13"
Cutting Capacity, Round, 30 Degrees: 8.7"
Cutting Capacity, Square, 90 Degrees: 12" x 13"
Cutting Capacity, Square, 45 Degrees: 12" x 12"
Cutting Capacity, Square, 30 Degrees: 8" x 8"
Cutting Capacity, Rectangle, 90 Degrees: 13"H x 19.7"W
Cutting Capacity, Rectangle, 45 Degrees: 13"H x 12"W
Cutting Capacity, Rectangle, 30 Degrees: 13"H x 7.9"H
Blade Speeds, Variable: 102 - 377 FPM
Blade Size: 163" x 1" x .035"

EQUIPPED WITH

3 HP Blade Drive Motor
1/2 HP Hydraulic Motor

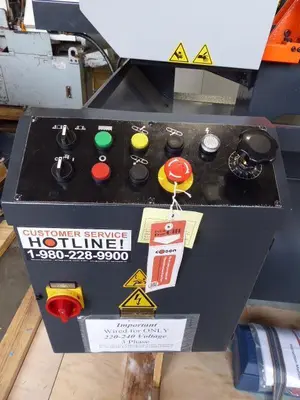

Operator's Control Station
Automatic Head Return
Hard Stops For 90, 45, and 30 Degrees For Quick Angle Set Up
Full Stroke Hydraulic Vise
Work Height Selector
Cast Iron Guide Arms
Adjustable Material Stop
18" Solid Discharge Table
Manual Blade Tension
Powered Blade Brush
Coolant System
Carbide Blade Guides

Approximate Weight: 2200 Lbs.

F.O.B. Charlotte, North Carolina

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
