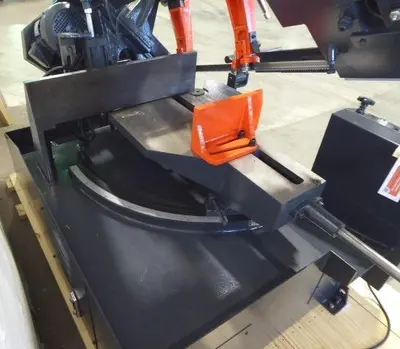

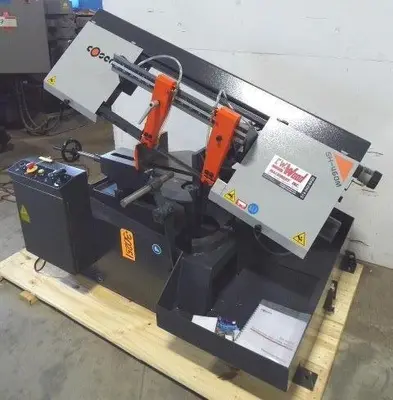

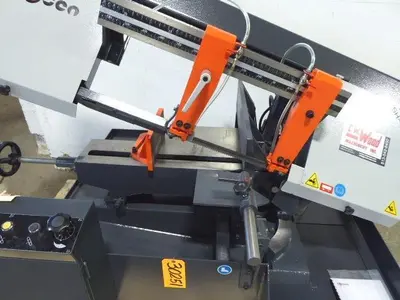

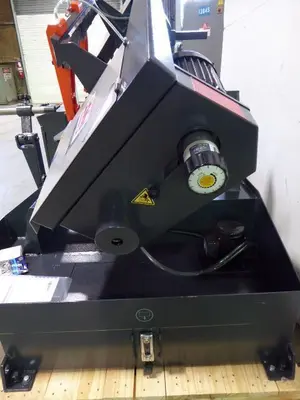

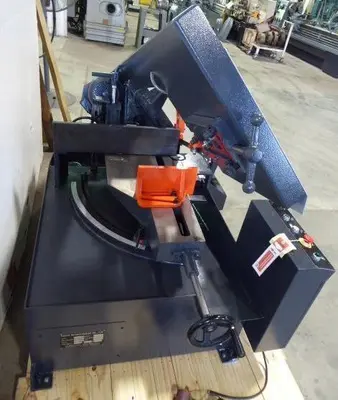

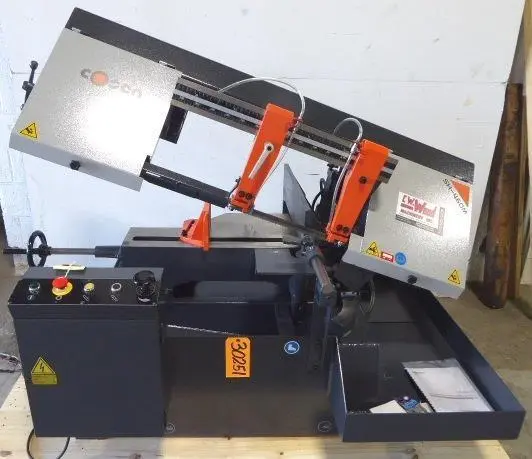

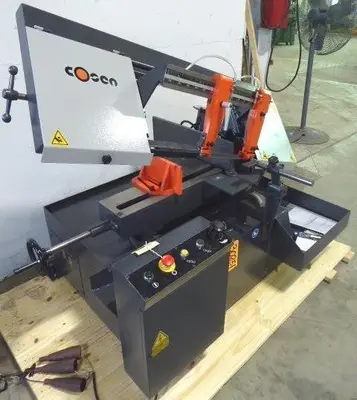

NEW COSEN SH-460M

(NEW) COSEN SEMI-AUTOMATIC MITER CUTTING HORIZONTAL BAND SAW

MODEL: SH-460M

FACTORY SPECIFICATIONS

Miter Capacity: 60 Degrees Maximum
Cutting Capacity, Round, 90 Degrees: 10"
Cutting Capacity, Round, 45 Degrees: 9"
Cutting Capacity, Round, 30 Degrees: 4.3"
Cutting Capacity, Square, 90 Degrees: 9" x 9"
Cutting Capacity, Square, 45 Degrees: 7.5" x 7.5"
Cutting Capacity, Square, 30 Degrees: 4.3" x 4.3"
Cutting Capacity, Rectangle, 90 Degrees: 9"H x 18.1"W
Cutting Capacity, Rectangle, 45 Degrees: 9"H x 9"W
Cutting Capacity, Rectangle, 30 Degrees: 9"H x 4.3"H
Blade Speeds: 95, 150, 213, 321 FPM
Blade Size: 138" x 1" x .035"
Bed Height: 25.4"

EQUIPPED WITH

2 HP Blade Drive Motor
1/4 HP Hydraulic Motor
Operator's Control Station
Automatic Head Return
Work Height Selector
Cast Iron Guide Arms
Adjustable Material Stop
Manual Blade Tension
Powered Blade Brush
Coolant System
Carbide Blade Guides

Shipping Dimensions:  48" x 73" x 45"H
Approximate Weight: 1450 Lbs.

F.O.B. Charlotte, North Carolina

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
