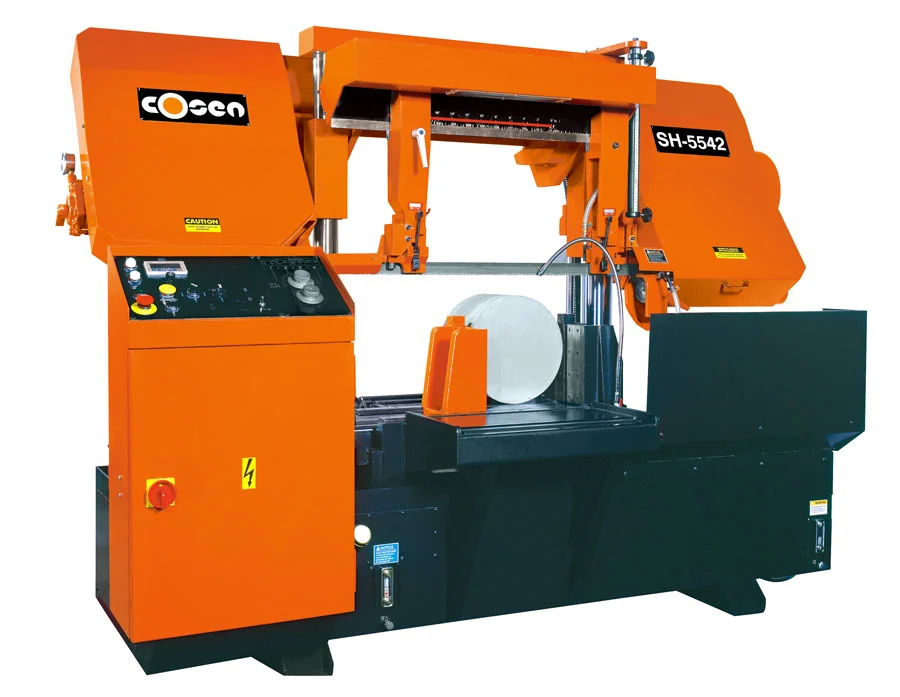

NEW COSEN SH-5542

COSEN SEMI-AUTOMATIC DUAL COLUMN HORIZONTAL BAND SAW

MODEL: SH-5542

FACTORY SPECIFICATIONS

Cutting Capacity, Round: 16.5"
Cutting Capacity, Square: 16.5" x 16.5"
Cutting Capacity, rectangle: 16.5" x 21.6"
Blade Size: 1-1/2" x 17'5" x .050"

EQUIPPED WITH

PLC: Controls the function of hydraulic and electric system.
Operators Station
7-1/2 HP Blade Drive Motor
2 HP Hydraulic Motor
Coolant System
Carbide Blade Guides
Automatic Hydraulic Blade Tensioning
Power Driven Blade Brush
Hydraulic Lifting Take-In Roller
Full Stroke Hydraulic Vise
Split Vise Jaws On Front Vise
Work Height Selector
Air Gap Eliminator
Flushing Hose

Available Options

Hydraulic Chip Conveyor
Inverter Blade Drive (Factory Installed)
Vise Pressure Regulator
Hydraulic Top Clamp
Vibration Dampening Roller

Approximate Weight: 4100 Lbs.

F.O.B. Charlotte, North Carolina

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
