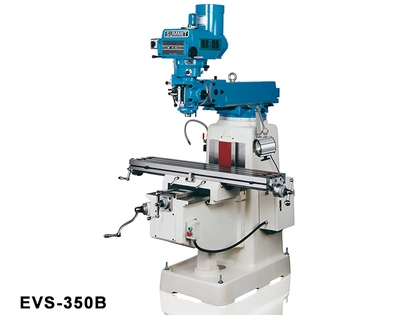

(NEW) SUMMIT VERTICAL MILLING MACHINE
MODEL: EVS-350B
FACTORY SPECIFICATIONS
Heavy Cast Iron Construction
Heavy Box Saddle
Table Size: 10" x 50"
Longitudinal Table Travel: 36"
Cross Table Travel: 16"
Spindle Speeds, Infinitely Variable: 0-4300 RPM
Spindle Taper: R-8
Spindle Travel: 5"
Spindle Feed Range: .0015", .003", .006"
Head Movement Side To Side: +/- 90 Degrees
Head Movement Front To Back: +/- 45 Degrees
Rotation Of Overarm: 360 Degrees
Overarm Adjustment: 22"
Spindle Nose To Table: 2-1/2" - 18-1/2"
EQUIPPED WITH
3 HP Spindle Motor
Yaskawa Compact AC Inverter Drive
Immediate Response Speed Control
Electronic Inverter Controlled Braking
Double Table Locks
Box Type Ways On Knee
Wipers On Saddle and Column
Rack and Pinion Ram Movement
Turcite B Lined Guideways
Built-In Coolant System
One Shot Lubrication
Adjustable Cross Slide Stops
Halogen Work
Full Electrics With Low Voltage Controls
Cogged Drive Belt
Included Accessories: Oil Gun, Clamping Kit, Screwdrivers, Anchor Bolts, Draw Bar, Open End Wrench Set, Box End Wrench Set, Hex Key Wrench Set, (6) R-8 Collets
Approximate Weight: 2900 Lbs.
F.O.B. Oklahoma City, OK
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
