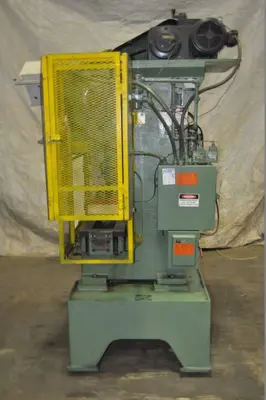

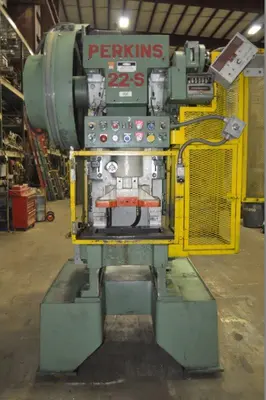

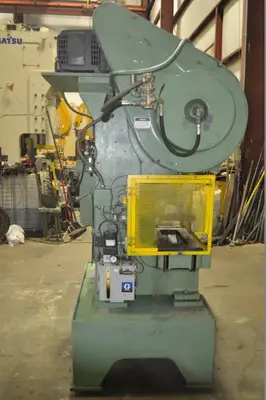

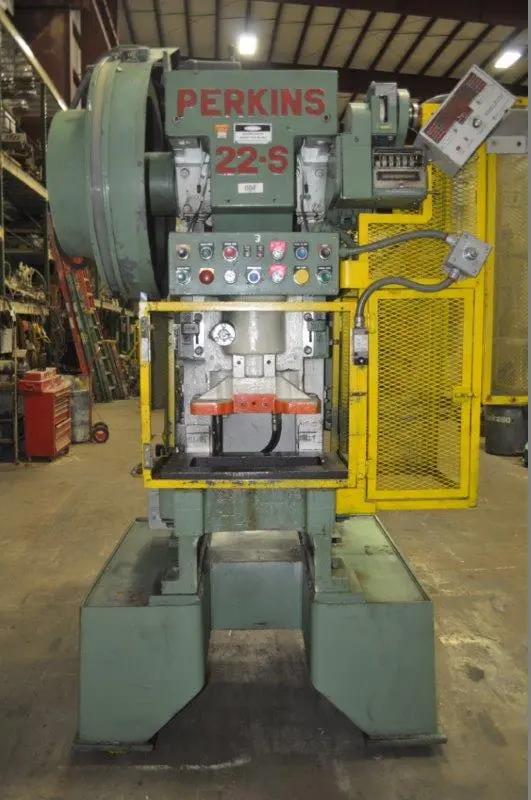

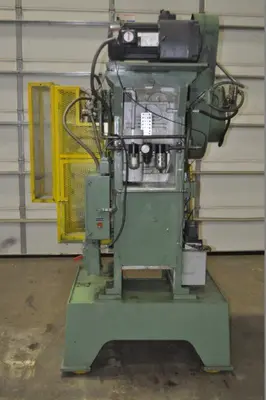

USED 1974 PERKINS 22-S

PERKINS GAP FRAME PRESS

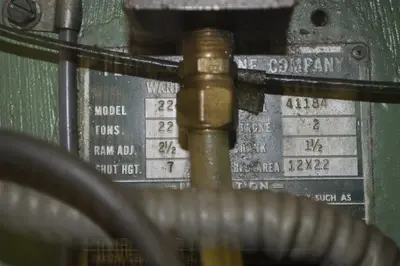

MODEL: 22-S

SERIAL NUMBER: 41184

GENERAL SPECIFICATIONS

Capacity: 22 Ton

Stroke: 2"

Shut Height: 7"

Ram Adjustment: 2-1/2"

Shank: 1-1/2"

Bed Area: 22" x 12"

Ram: 15" x 10"

Strokes Per Minute, Variable: 200 - 800

EQUIPPED WITH

3 HP Vari-Drive, 230/460/60/3

Control Console

Air Clutch and Brake

Bijur Recirculating Lubrication

Toledo Transducer Tonnage Monitor

Bolster Plate: 1-1/2" Thick

Approximate Dimensions: 48" F-B x 60" L-R x 96"H

Approximate Weight: 6000 Lbs.

F.O.B. Delta, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
