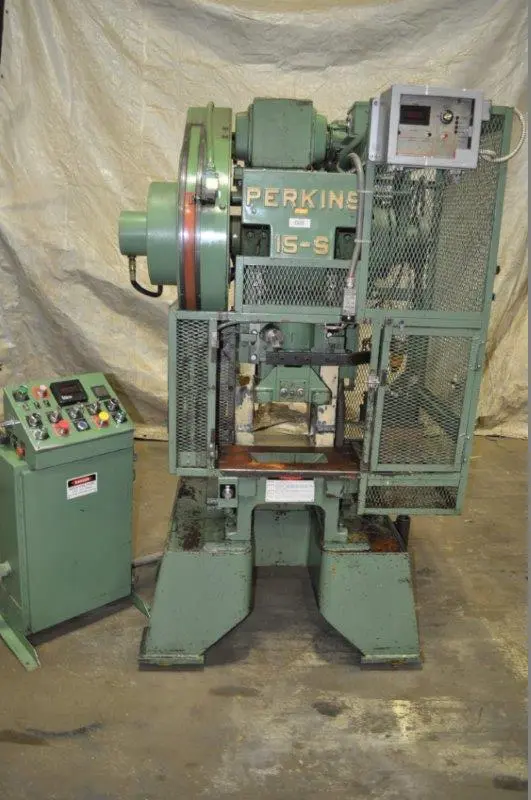

PERKINS GAP FRAME PRESS

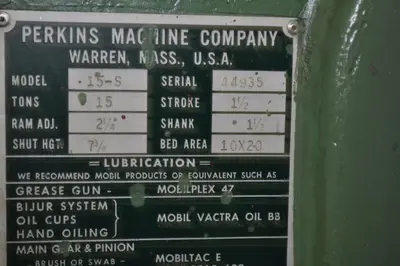

MODEL: 15-S
SERIAL NUMBER: 44935 Year: 1981
GENERAL SPECIFICATIONS
Capacity: 15 Ton
Stroke: 1-1/2"
Shut Height: 7-3/4"
Ram Adjustment: 2-1/4"
Shank: 1-1/2"
Bed Area: 20" x 10"
Strokes Per Minute, Variable: 100-300
EQUIPPED WITH
3 HP Vari-Drive, 230/460/60/3
Air Clutch and Brake

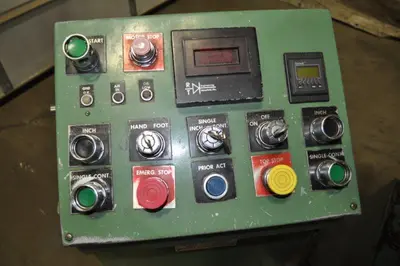

Controle Console
Recirculating Lube System
Dialtron 400 Tonnage Monitor
Bolster Plate: 2" Thick
Approximate Dimensions: 48" L-R x 40" F-B x 88"H
Approximate Weight: 4500 Lbs.
F.O.B. Delta, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
