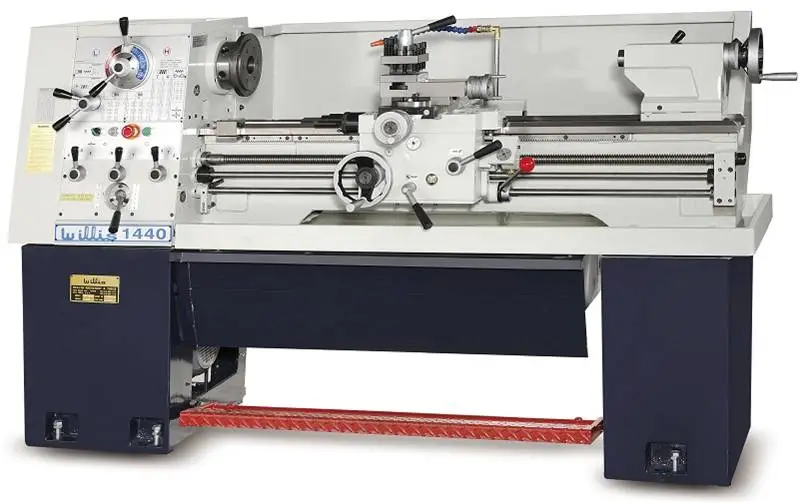

NEW WILLIS 1440

(NEW) WILLIS GAP BED ENGINE LATHE

MODEL: 1440

FACTORY SPECIFICATIONS

Swing Over Bed: 14-1/4"

Swing In Gap: 22"

Distance Between Centers: 40"

Spindle Speeds: (8) 70 - 2000 RPM

Spindle Bore: 1-5/8"

Spindle Nose: D1-5

Threads, Inch: (36) 4 - 72 TPI

Threads, Metric: (27) .4 - 7 mm

Longitudinal Feeds: .0012" - .016"

Cross Feeds: .0004" - .0053"

Cross Slide Travel: 8-1/4"

Compound Travel: 3-3/4"

Tailstock Quill Travel: 5-3/4"

EQUIPPED WITH

5 HP Spindle Motor

Hardened and Ground Bed Ways

Hardened and Ground Headstock Gears and Shafts

Inch/Metric Dual Dials

Foot Brake

Flood Coolant

Full Length Splashguard

Pull-Out Chip Pan

Four Way Tool Post

Instruction and Parts Manual, Service Tools

Approximate Weight: 2000 Lbs.

F.O.B. Toledo, Ohio

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND OR MODIFICATION
