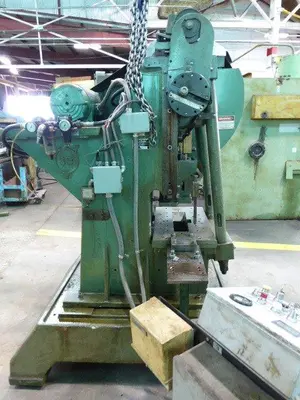

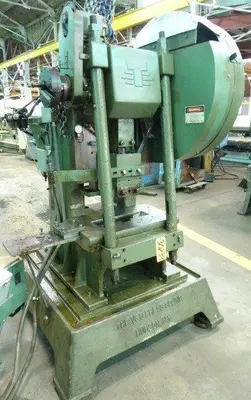

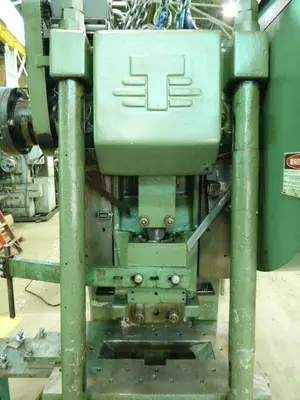

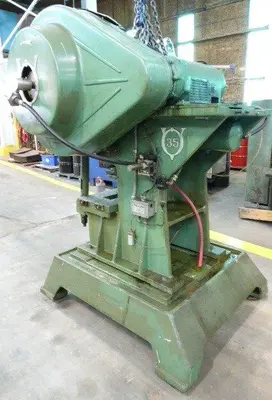

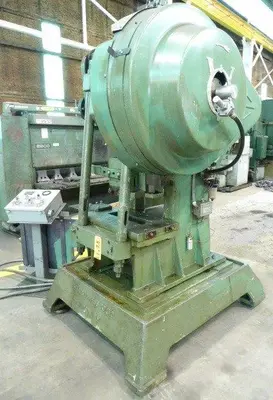

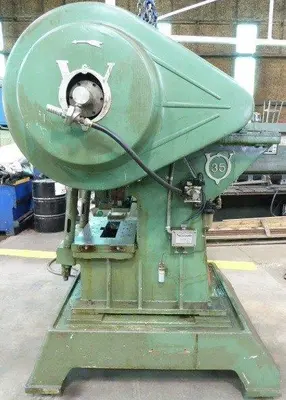

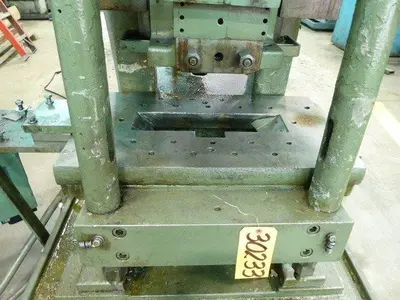

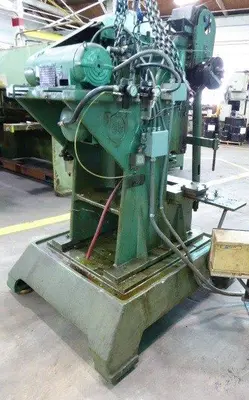

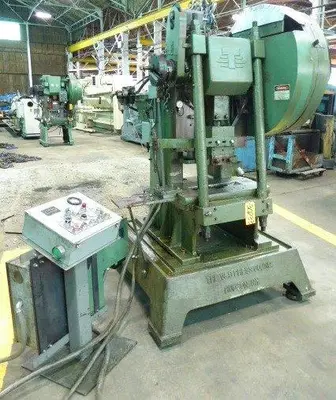

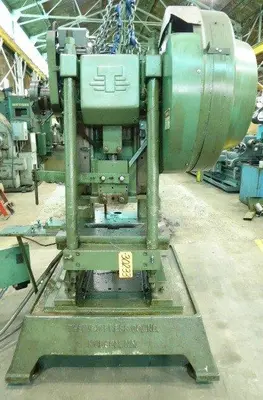

USED 1966 V&O 35 ST

V & O GAP FRAME HIGH SPEED PRESS

MODEL: 35 ST
SERIAL NUMBER: 35ST-43

GENERAL SPECIFICATIONS

Capacity Of Press Near Bottom Of Stroke: 35 Tons
Stroke: 1-1/2"
Shut Height: 10"
Bed Area: 16" F-B x 29" L-R
Slide Area: 8-3/4" x 12-1/2"
Throat: 8-1/2"
Opening Through Back: 13-1/2"
Strokes Per Minute, Variable: 200 - 600

EQUIPPED WITH

7-1/2 HP Ajusto Spede Variable Drive

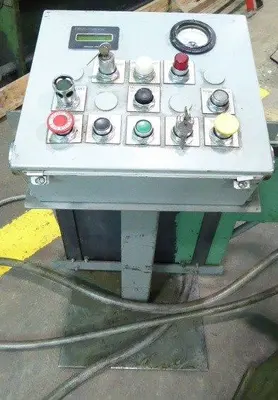

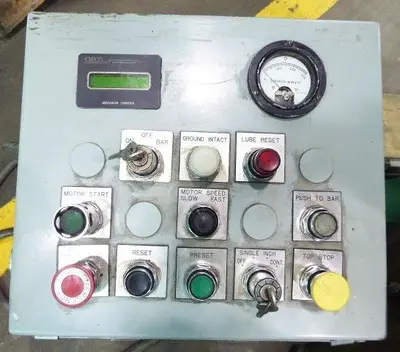

Pedestal Control w/Dual Palm Buttons, Top Stop, E-Stop
Air Clutch and Brake

Approximate Weight: 8400 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
