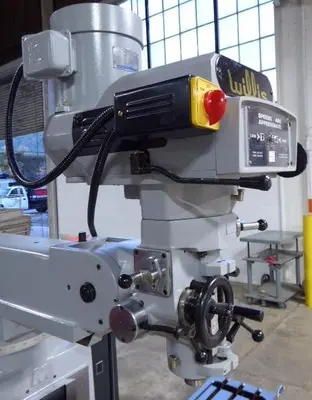

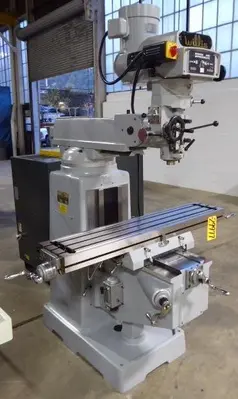

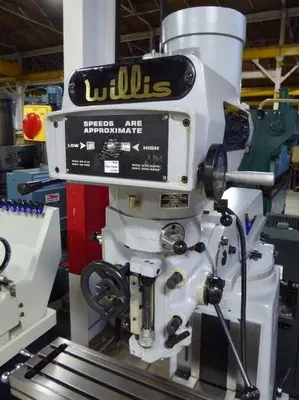

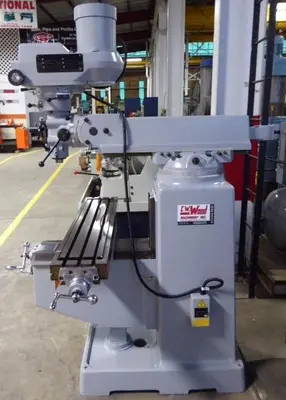

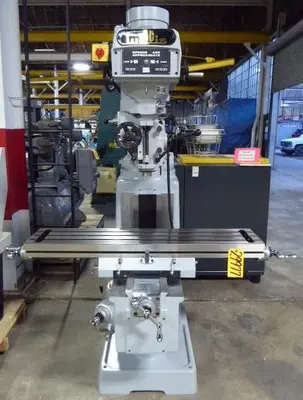

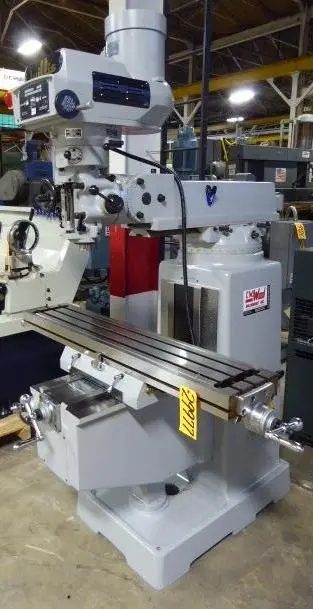

(NEW) WILLIS VERTICAL MILLING MACHINE
MODEL: 1050
FACTORY SPECIFICATIONS

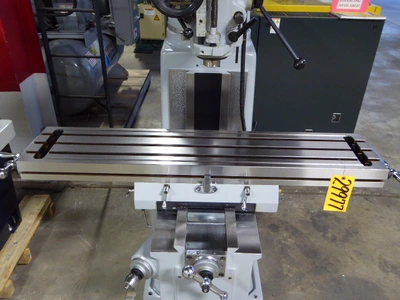

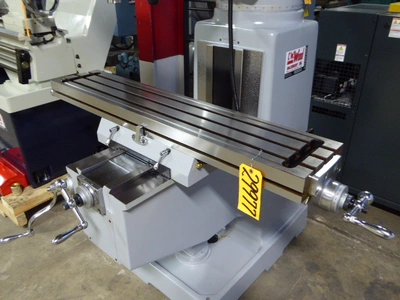

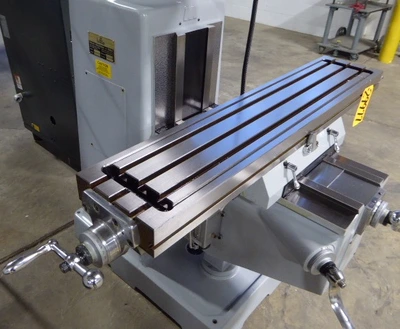

Table Size: 10" x 50"
Longitudinal Travel: 36"
Cross Travel: 16"
Vertical Knee Travel: 16"
Ram Travel: 24"
Ram Swivel: 360 Degrees
Quill Diameter: 3-3/8"
Spindle Speeds, Variable: 60 - 4200 RPM
Spindle Taper: R-8
Quill Power Feed Rates: (3) .00032", .0017", .0053"
Spindle Nose To Table, Minimum-Maximum: 2" - 18"
Center Of Spindle To Column Face, Minimum-Maximum: 3" - 27"
Maximum Work Piece Weight: 750 Lbs.
EQUIPPED WITH

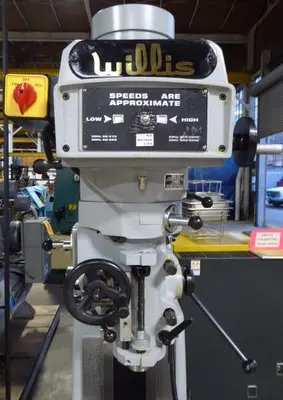

3 HP Variable Speed Head
Hardened and Ground Bedways
Meehanite Castings
Hardened and Ground Table Surfaces
Chrome Plated Ground Quill
Metered Valve Lubrication
Double Nuts On Leadscrews For Minimal Backlash
Double Locks On All Axes
Rubber Way Covers
Toolbox w/Tools
Operator's Manual
Approximate Weight: 2800 Lbs.
F.O.B. Toledo, Ohio
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
