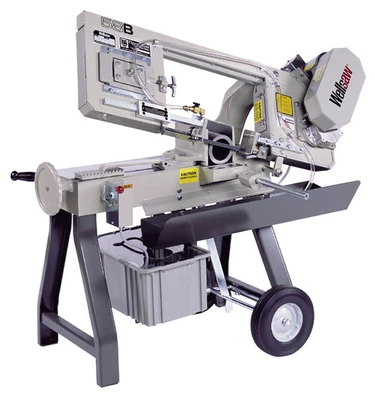

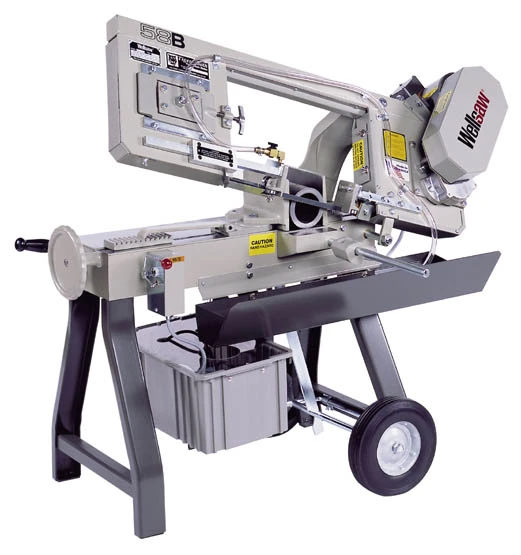

NEW WELLSAW 58BW

(NEW) WELLSAW HORIZONTAL/VERTICAL BAND SAW

MODEL: 58BW

FACTORY SPECIFICATIONS

Capacity, Rectangle: 9-1/2"H x 11"W

Capacity, Round: 9-1/2"

Vertical Capacity

 Throat Height: 9-1/2"

 Throat Depth: 6-1/4"

 Work Table: 8" x 10"

Blade Size: 7'9" x 1/2" x .025"

Blade Speeds: (3) 76, 141, 268 FPM

Bed Height: 26"

Band Wheels: 11" Diameter

EQUIPPED WITH

1/2 HP Motor, 115/60/1

Mobile Transfer System: Includes pull-out handle that automatically locks saw head assembly in   "down" position plus a foot-actuated jacking lever to position wheels for easy mobility.

Vertical Work Table

Stock Stop Assembly

Blade Brush

Under Voltage and Overload Protection

Power Interruption Breaker Switch

Quick Acting Vise

Adjustable Pressure Gravity Feed

Auto Shutoff At Cut Completion

Approximate Weight: 385 Lbs.

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
