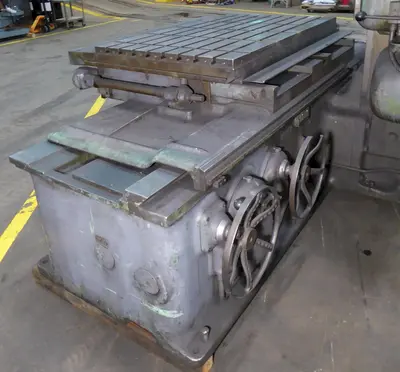

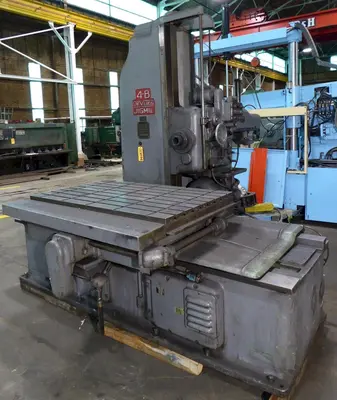

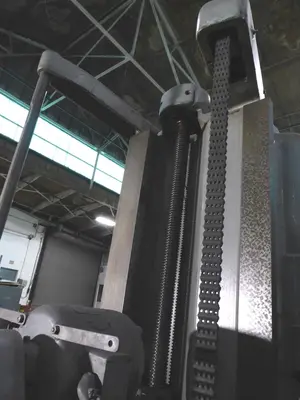

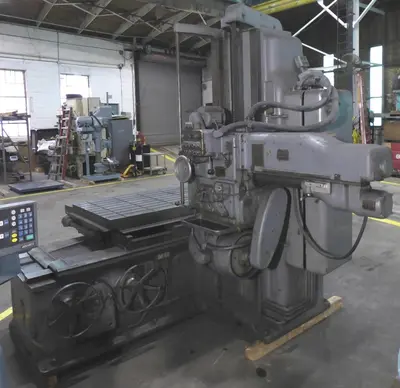

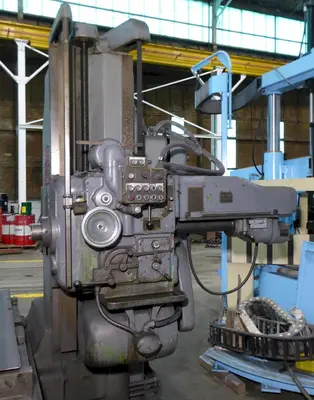

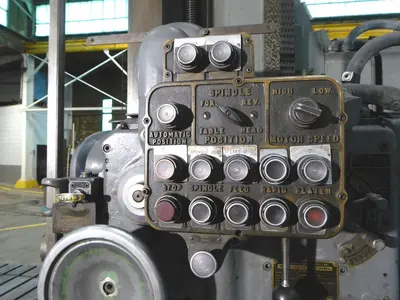

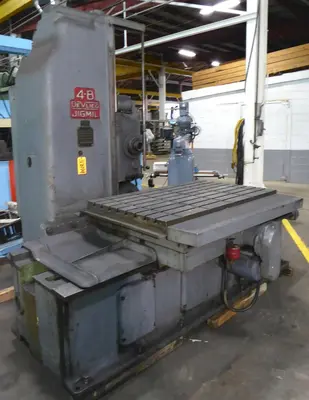

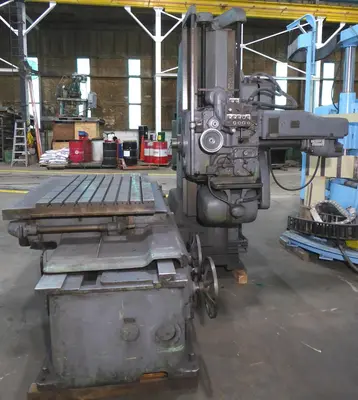

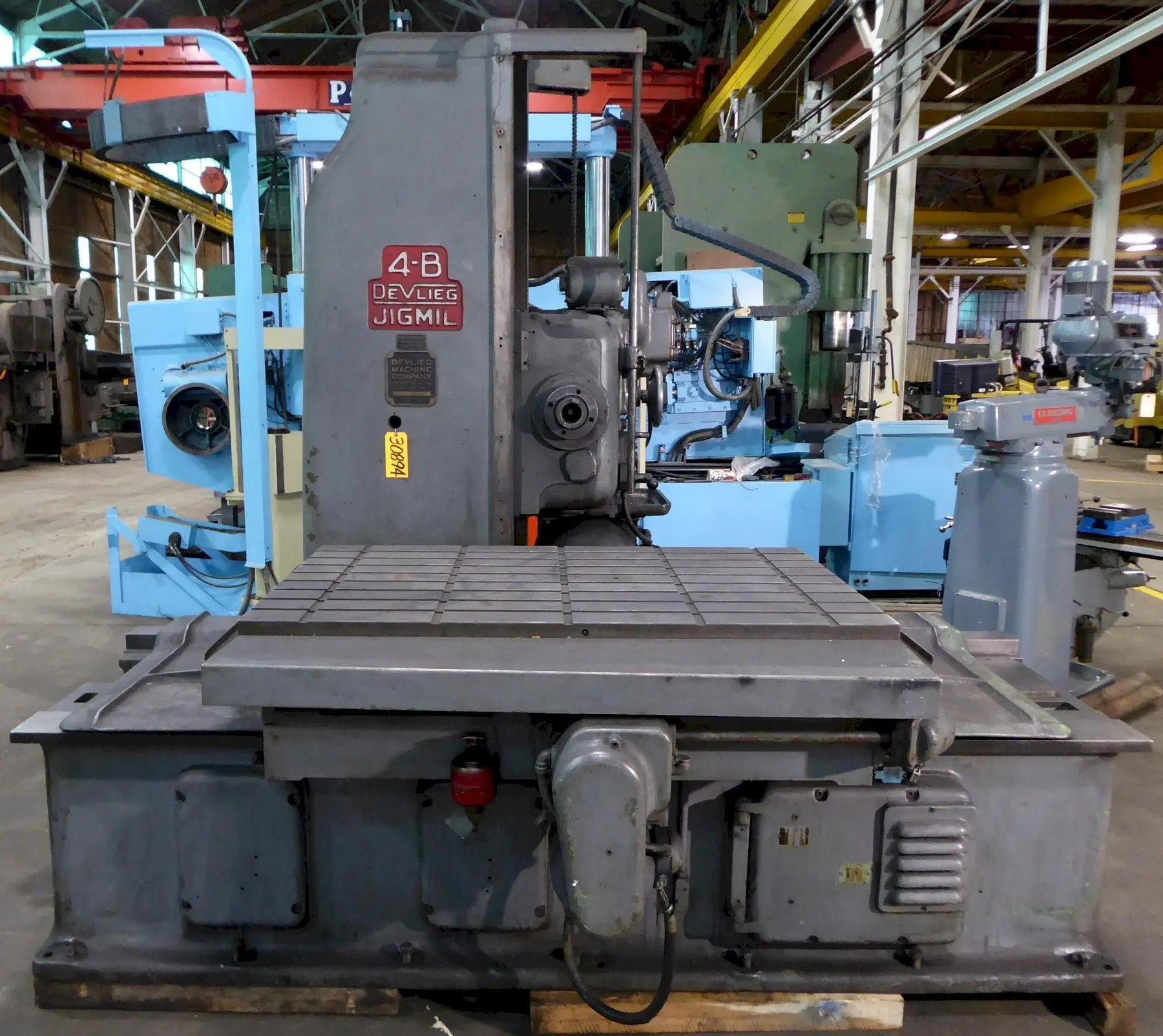

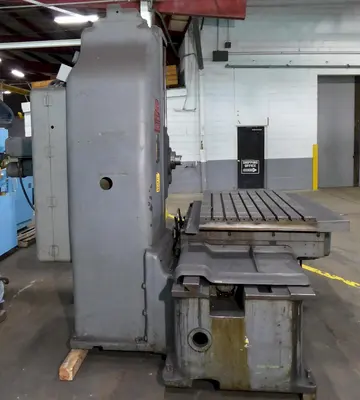

DEVLIEG JIGMIL
MODEL: 4B-60
SERIAL NUMBER: 4-174
GENERAL SPECIFICATIONS
Spindle Diameter: 4"
Spindle Taper: No. 50
Longitudinal Travel: 60"
Vertical Travel: 48"
Table Dimensions: 36" x 60"

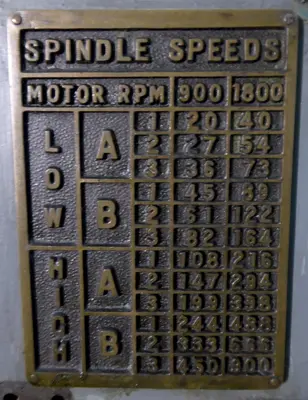

Spindle Speeds: (24) 20 - 900 RPM
Bar Feeds: (6) .0014" - .015"
Table Height From Floor: 40"
EQUIPPED WITH
10/5 HP Two Speed Spindle Drive Motor, 440/60/3
F.O.B. Cincinnati, Ohio
Approximate Weight: 32,000 Lbs.
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
