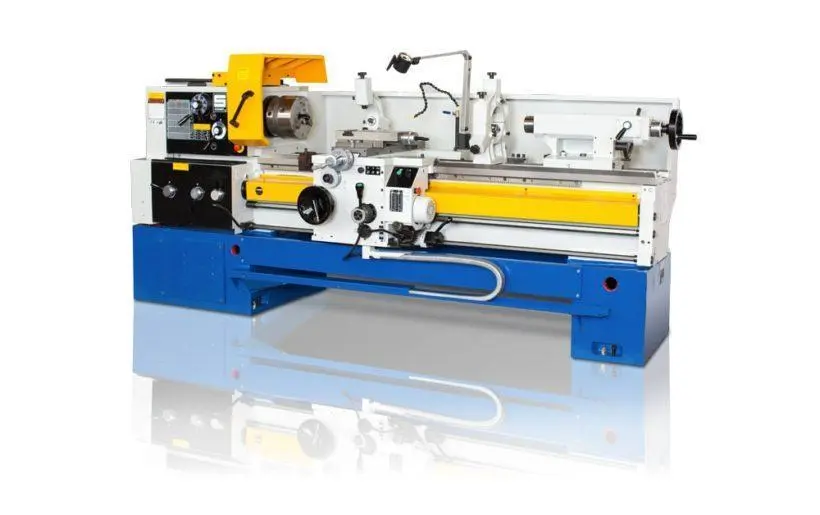

NEW SUMMIT 16-3"

(NEW) SUMMIT PRECISION ENGINE LATHE

MODEL: 16-3 x 80

GENERAL SPECIFICATIONS

Swing Over Bed: 16"
Swing Over Gap: 25-1/8"
Swing Over Cross Slide: 9-3/8"
Distance Between Centers: 40"
Spindle Speeds: (21) 20 - 2000 RPM
Hole Through Spindle: 3"
Spindle Nose: D1-8 Camlock
Threads: (64) 1/4 - 60 TPI
Metric Threads: (64) .5 - 120
Longitudinal Feeds: (124) .00185 - .44474
Cross Feeds: (56) .0007 - .22237
Cross Slide Travel: 11-3/8"
Compound Rest Travel: 5-3/8"
Tailstock Spindle Travel: 9-1/2"
Tailstock Spindle Taper: No. 5 M.T.
Bed Width: 15-3/4"

EQUIPPED WITH

10 HP Motor
Inch/Metric Threading
Hardened and Ground Bed Ways
10" 3-Jaw Chuck
Steady Rest
Follow Rest
Taper Attachment
Thread Dial
Four Way Rapid Traverse
Force Lubrication To Headstock, Carriage and Bedways
Coolant System
Full Length Splash Guard
Carriage Stop
Work Light

F.O.B. Oklahoma City, Oklahoma

Approximate Weight: 6100 Lbs.

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
