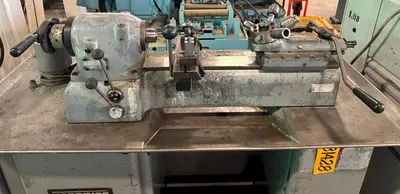

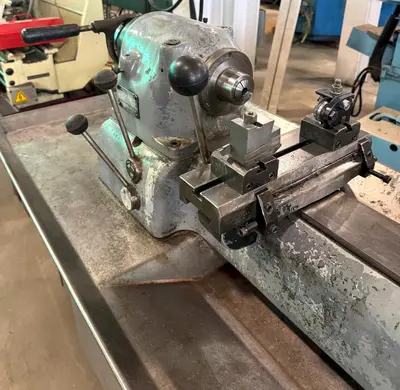

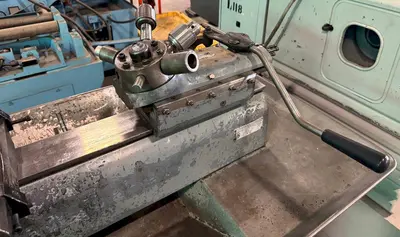

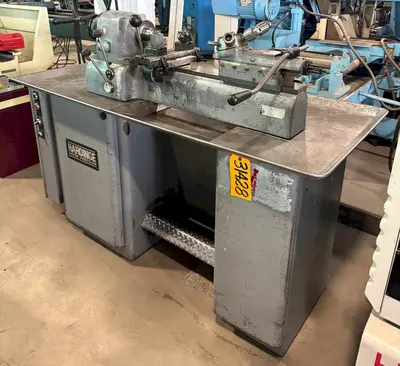

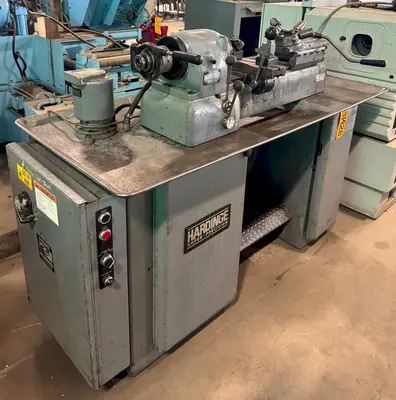

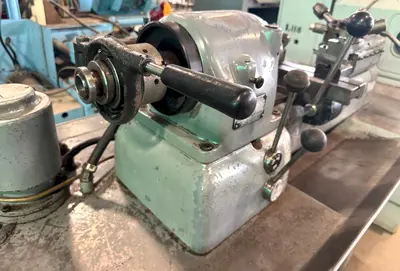

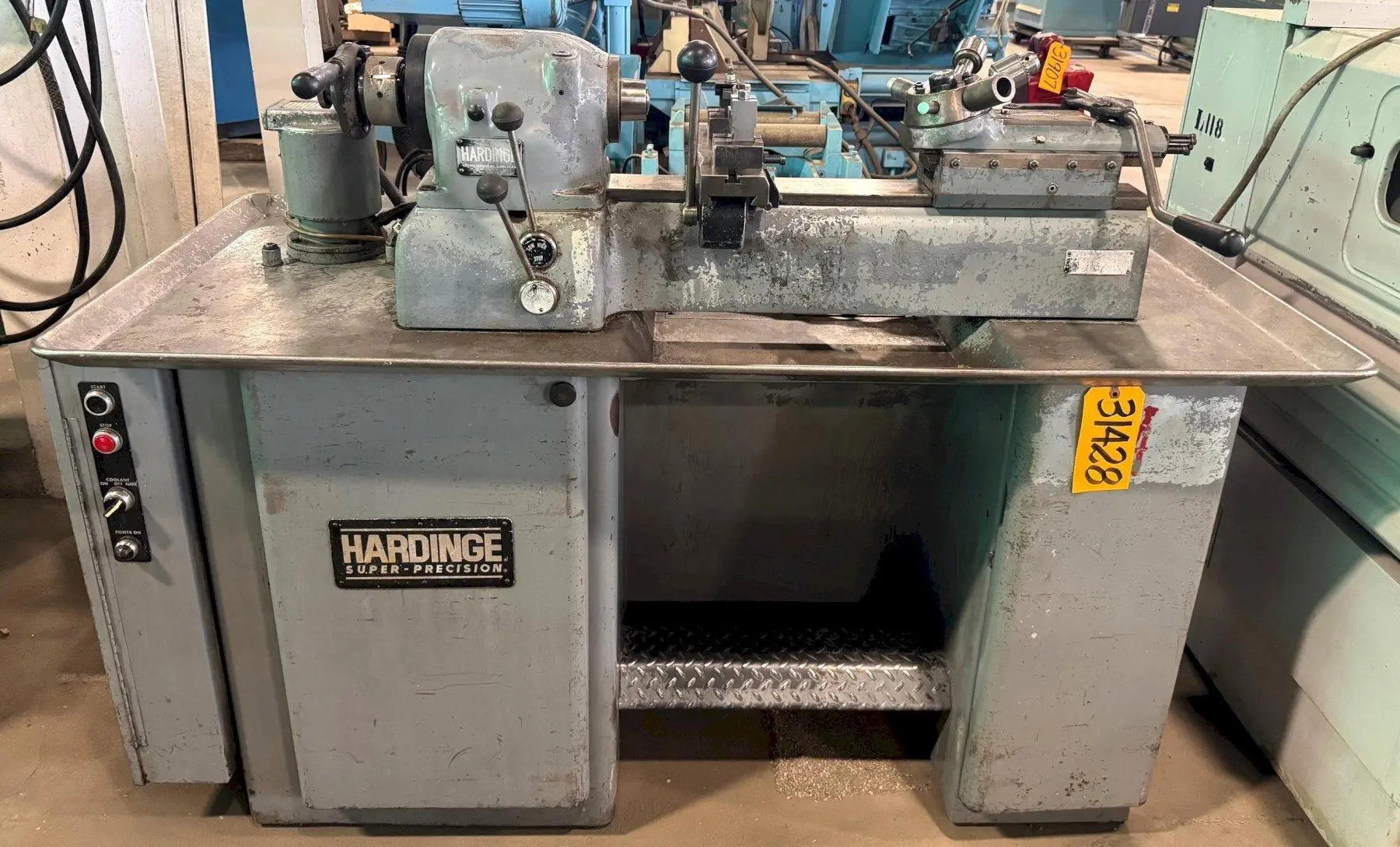

USED HARDINGE DSM-59R

HARDINGE SECOND OPERATION LATHE

MODEL: DSM59-R
SERIAL NUMBER: V-59-15112

GENERAL SPECIFICATIONS

Swing Over Bed: 9"
Length Of Bed: 36"
Spindle Speeds: (10) 450 - 4000 RPM
Travel Of Double Tool Cross Slide: 3-3/4"
Travel Of Turret Slide: 4"
Diameter Of Turret Holes: 5/8"
Spindle Capacity
 With Round 5C Collets: 1-1/16"
 With Hexagon 5C Collets: 7/8"
 With Square 5C Collets: 3/4"
 With Step Chucks: 1-1/6" - 6"
 With Jaw Chucks: 5"
 With Jaw Chucks (Through Spindle): 1-5/32"

EQUIPPED WITH

Double Tool Cross Slide
Collet Closer

Approximate Weight: 1000 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
