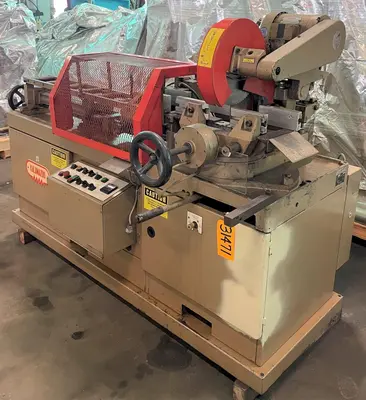

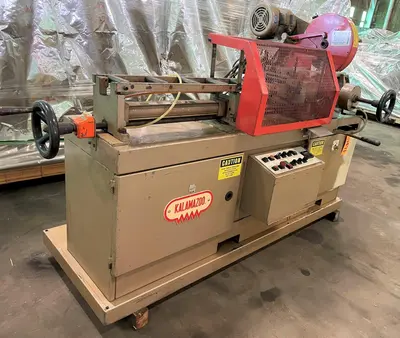

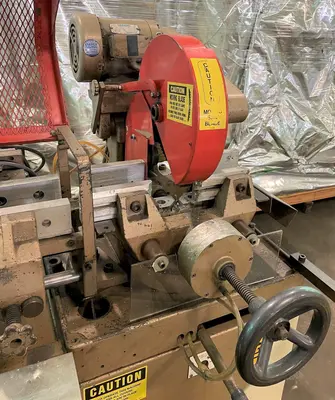

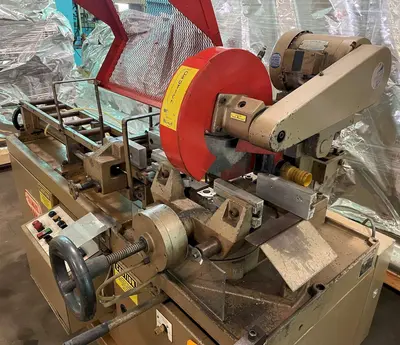

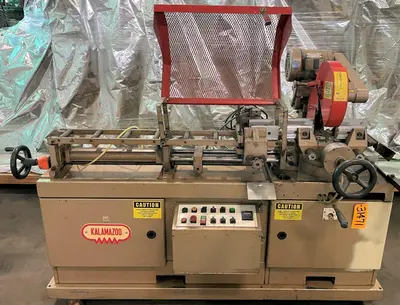

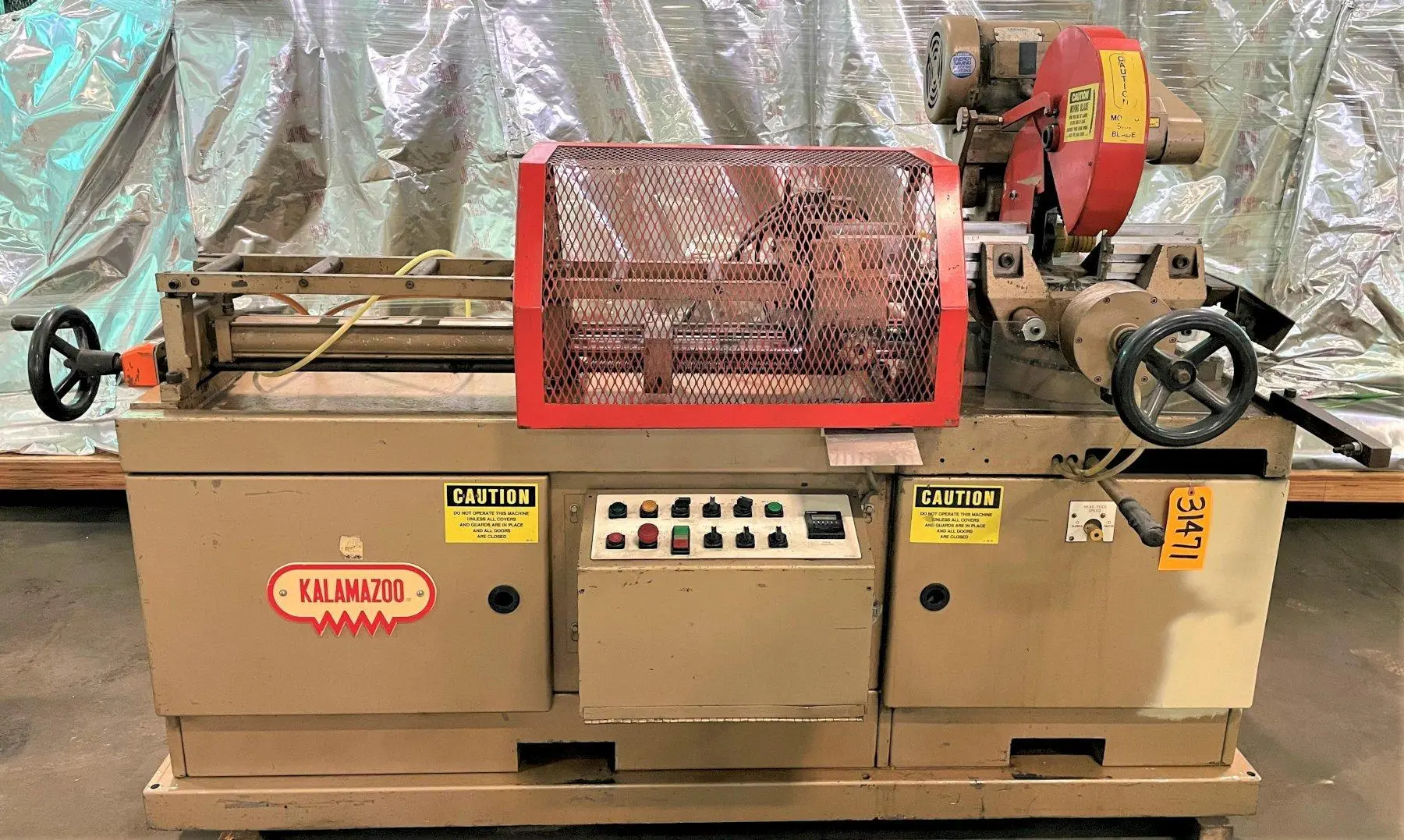

USED KALAMAZOO FA-350A

KALAMAZOO NON-FERROUS AUTOMATIC FEED COLD SAW

MODEL: FA-350A
SERIAL NUMBER: 419

"The operator loads the stock, adjusts the clamping vises to position, sets the feed unit to the proper length of cut by using the digital readout, sets the number of pieces required and then presses the cycle start switch. The machine will go through the complete cutting cycle until all pieces have been cut (or the stock is exhausted).

GENERAL SPECIFICATIONS

Maximum Blade Diameter: 14"
Maximum Vise Opening: 6"
Spindle Speed:
Capacity, Round Tubing, 90 Degrees: 5"
Capacity, Round Tubing, 45 Degrees: 4-1/2"
Capacity, Round, Solid, 90 Degrees: 5"
Capacity, Round, Solid, 45 Degrees: 4-1/2"
Capacity, Rectangular, 90 Degrees: 4-1/2" x 6"
Capacity, Rectangular, 45 Degrees: 4" x 4-1/2"
Capacity, Square, Solid: 4-1/2"
Automatic Feed
Single Feed Length: 17-1/2"
Maximum Number Multiple Feeds: 5
Minimum Cut Length: 1/4"

EQUIPPED WITH

3 HP Motor
Self-Centering Vise Clamps
Adjustable Head Up and Down Travel Stops

Approximate Weight: 1800 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
