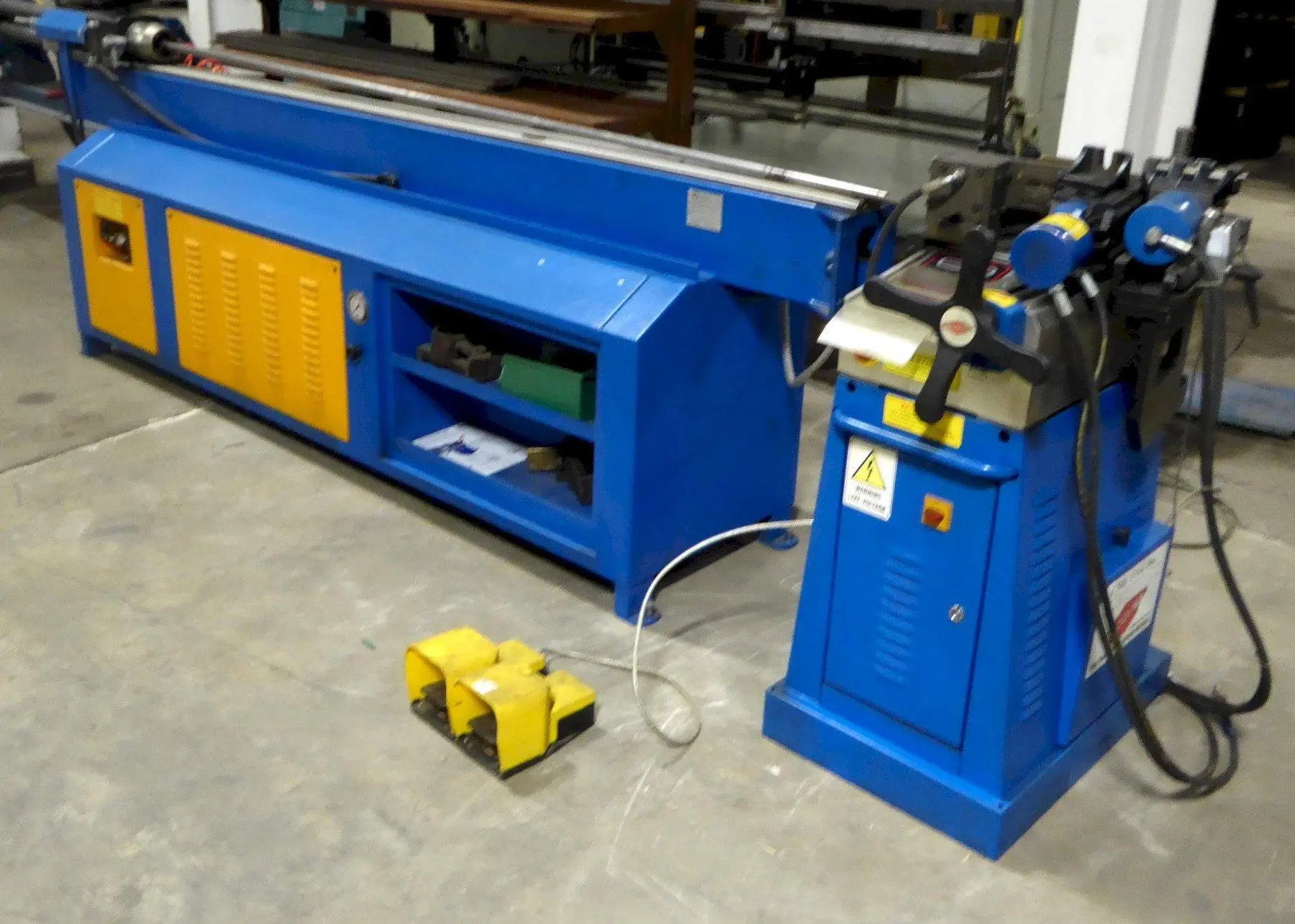

USED 2006 ERCOLINA TOP-030 TRIF

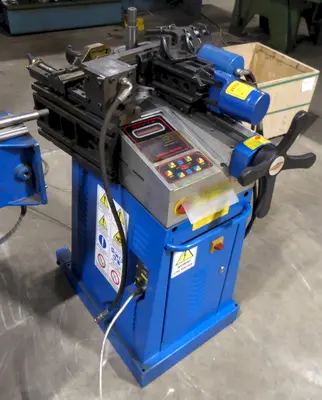

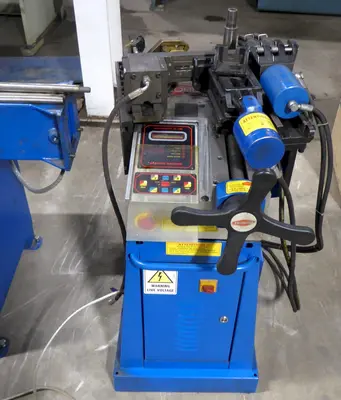

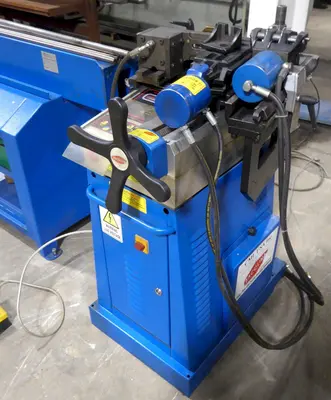

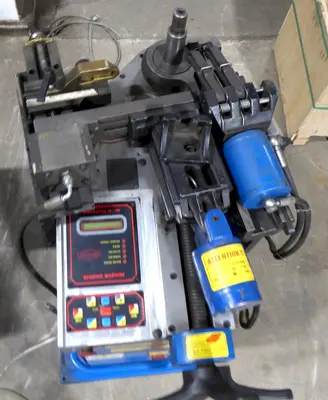

ERCOLINA ROTARY DRAW MANDREL TUBE & PIPE BENDING MACHINE

MODEL: TOP-030

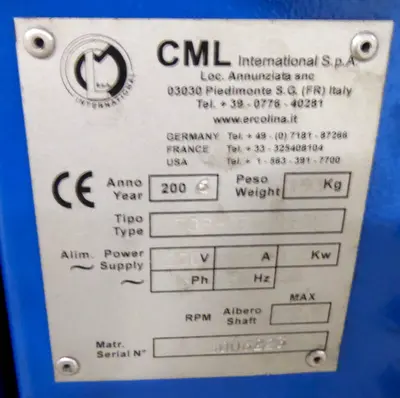

SERIAL NUMBER: 3006223

Bender appears to be in excellent condition with very little use.

"Ideal for prototype or small production applications. Ideal for bending handrail, thin wall mild steel, stainless steel, bend grade aluminum and other materials."

GENERAL SPECIFICATIONS

Maximum Tube Capacity, Mild Steel: 2-1/2" (.083" Wall)
Maximum Tube Capacity, Stainless: 2-1/2" (.065" Wall)
Maximum Tube Capacity, Square Tube: 2" (.065" Wall)
Maximum Pipe Capacity: 1-1/2" Schedule 40
Maximum Bending Radius: 7-7/8"
Minimum Bending Radius: 1.5 x 0
Maximum Shaft Rotation: 210 Degrees
Maximum Bending Angle: 180 Degrees
Maximum Tailstock Capacity: 2-3/8"
Maximum Material Length, 10' Table: 118"
Number Of Programs: 30
Precision Of Bend Angle: +/- 1 Degree

EQUIPPED WITH

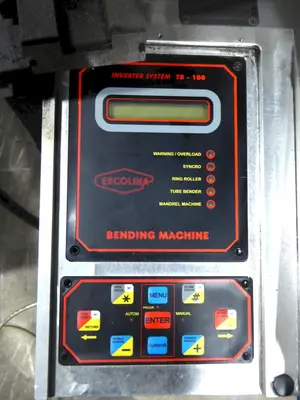

Operator-Friendly Control Pad. Step-By-Step Programming

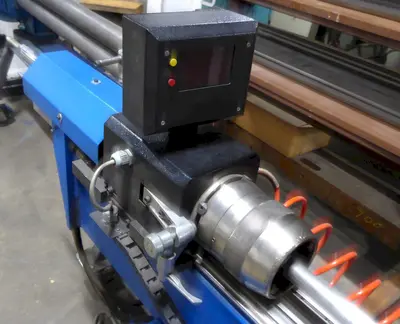

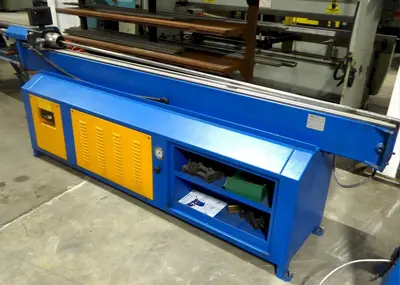

10' Mandrel Table w/DRO System For Linear and Rotational Positioning
Programmable Bend Angle
Programmable Bend Sequencing and Mandrel Retraction
Independent Clamp and Pressure Die Adjustment
Quick Change Tooling
Variable Bending Speed

2024 New Price: $56,100.00

Approximate Weight: 1600 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
