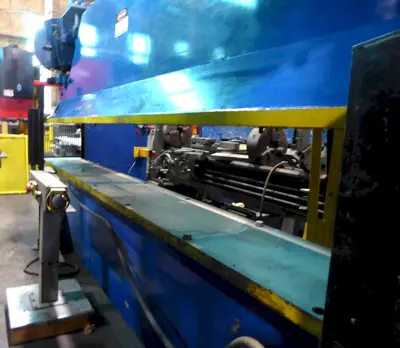

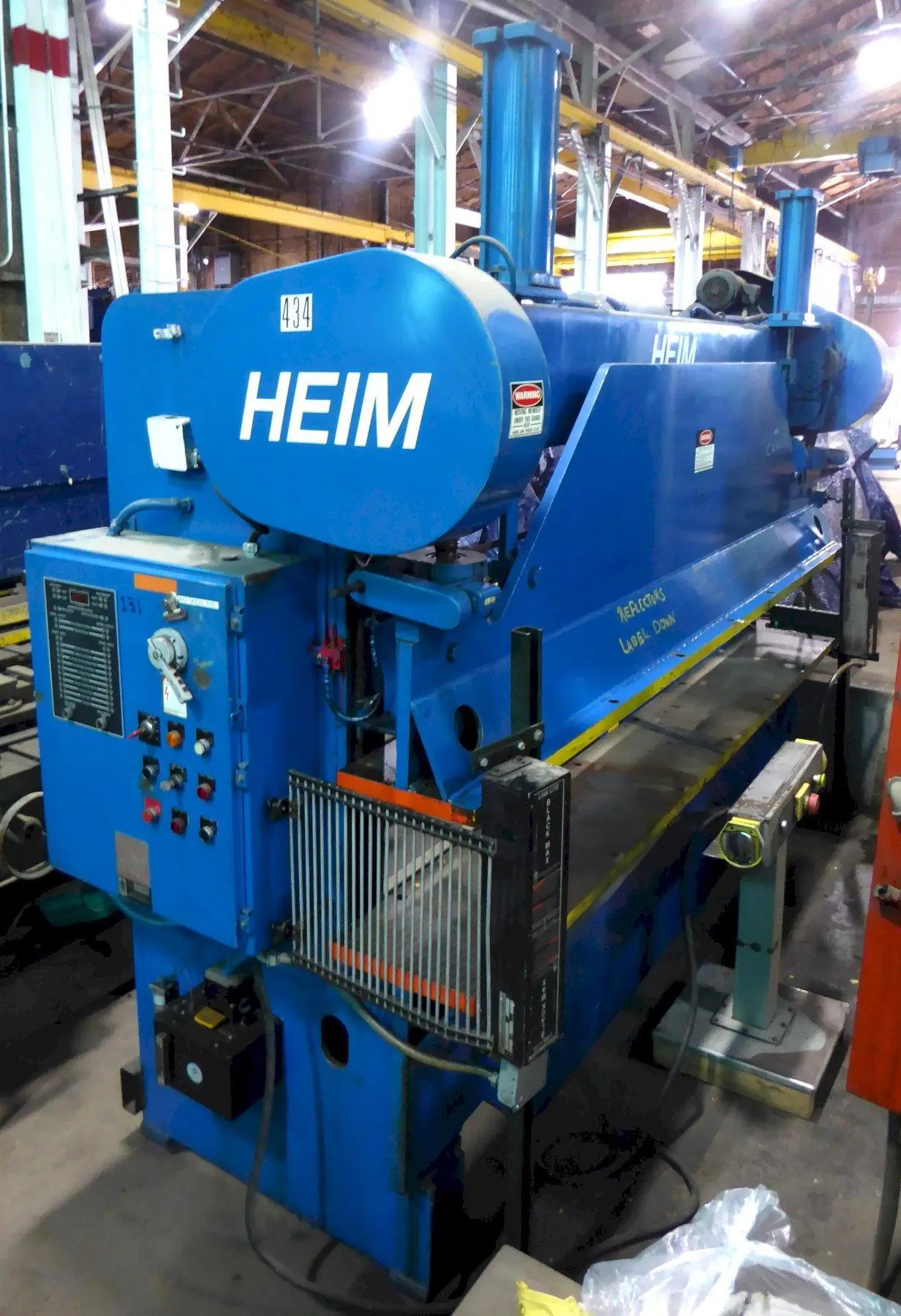

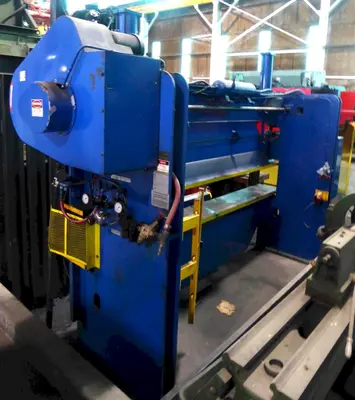

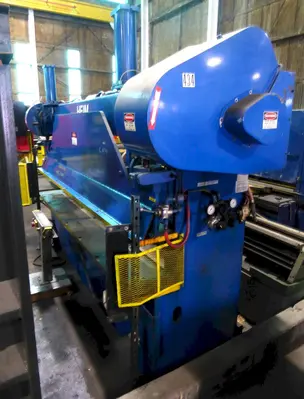

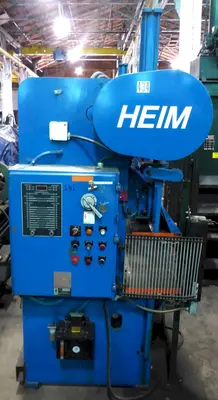

USED 1999 HEIM 45-10

HEIM MECHANICAL PRESS BRAKE

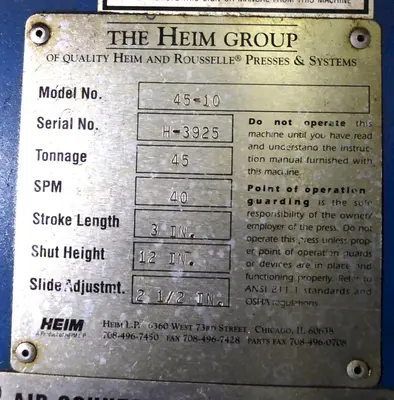

MODEL: 45-10
SERIAL NUMBER: H-3925  Year: 1999

GENERAL SPECIFICATIONS

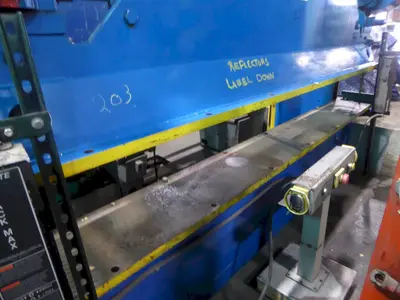

Permanently Flanged Bed and Ram
Tonnage, Near Bottom: 45
Tonnage, Mid Stroke: 30
Bed Size: 14" x 126"
Ram Size: 12" x 126"
Distance Between Housings: 110"
Stroke: 3"
Shut Height: 12"
Ram Adjustment: 2-1/2"
Strokes Per Minute: 40

EQUIPPED WITH

2 HP Motor

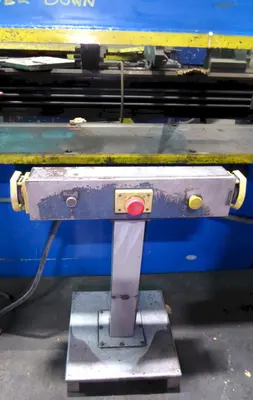

Pedestal Control w/Dual Palm Buttons

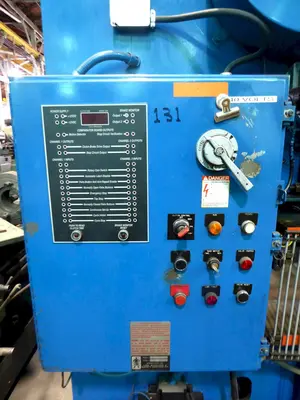

PLC Control
Air Clutch
Power Ram Adjustment
(2) Air Counterbalances
Bijur Automatic Lubrication
Holes On Flanged Bed and Ram On 18" Centers

Approximate Weight: 7500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
